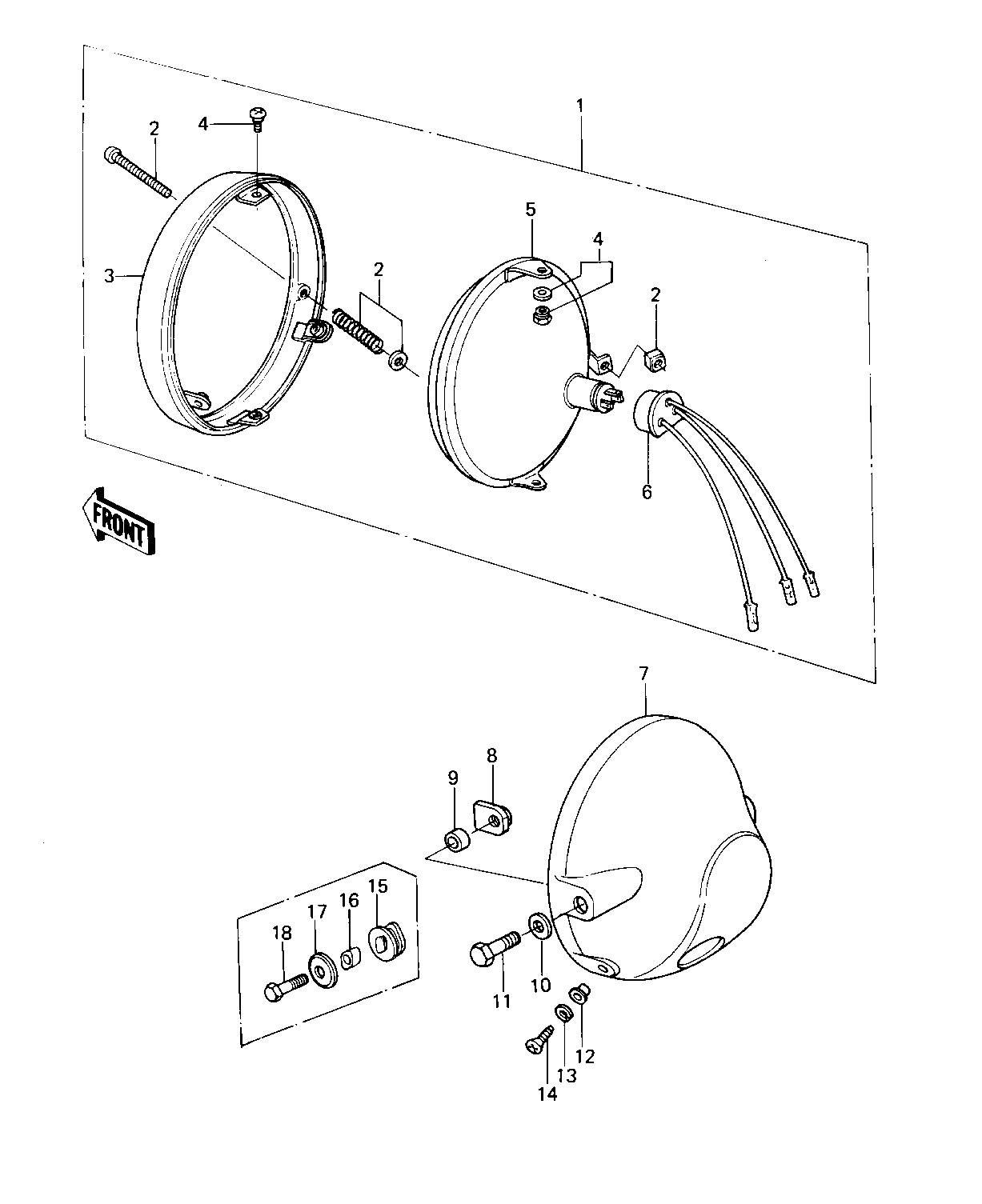

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LIGHT UNIT HEAD 1 23003-022
SCREW ASY FOCUS ADJST 2 23013-008
RIM HEAD LIGHT 3 23006-044
SCREW ASY LENS UNIT 4 23013-009
LENS UNIT HEAD LIGHT 5 23007-059
SOCKET ASSY,HEAD LAMP 6 23008-037
BODY,HEAD LIGHT,BLACK 7 23005-047-21
NUT 10MM 8 23020-021
COLLAR,HEAD LIGHT 9 92027-231
WASHER PLAIN 10MM 10 411B1000 KZ400-B1
BOLT,HEX HEAD,10X25 11 92007-045 KZ400-B1
WASHER 12 23021-010
WASHER SPRING 5MM 13 461F0500
SCREW-PAN HEAD,5MM 14 92011-024
DAMPER RUBBER 15 92075-128 KZ400-82
COLLAR,HEAD LAMP 16 92027-1129 KZ400-82
WASHER,PLAIN 17 92022-289 KZ400-82
BOLT,10MM 18 92007-024 KZ400-82
