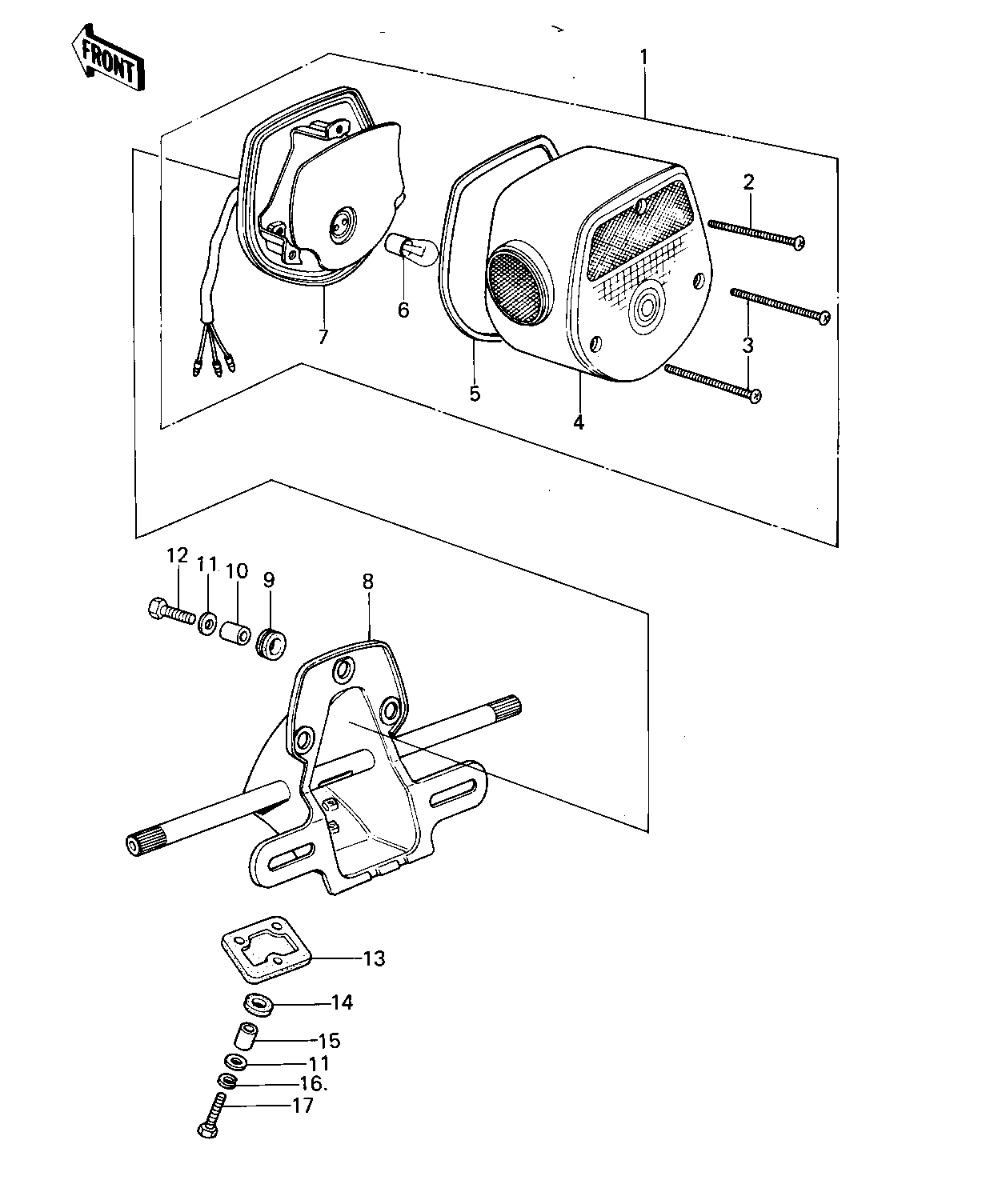

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-TAIL 1 23025-1031 "040-5220" MARK
SCREW 2 220R0455
SCREW PAN HEAD 4X50 3 220E0450
LENS,TAIL LAMP 4 23026-028
GASKET,TAIL LAMP LENS 5 23028-019
BULB,12V 32/3CP 6 92069-059
BODY-COMP-TAIL LAMP 7 23027-1019
BRACKET,TAIL LAMP 8 23036-1002 "5841" MARK
DAMPER RUBBER 9 92075-076
COLLAR,6.8X10X8.5 10 92027-129
WASHER 6.5X20X1.6T 11 92022-125
BOLT-UPSET,6X20 12 112G0620
DAMPER RUBBER,RR FEND 13 35039-004
DAMPER RUBBER,RR FEND 14 92075-121
COLLAR 6.8X10X14.5 15 92027-156
WASHER SPRING 6MM 16 461F0600
BOLT-UPSET 17 112G0625
