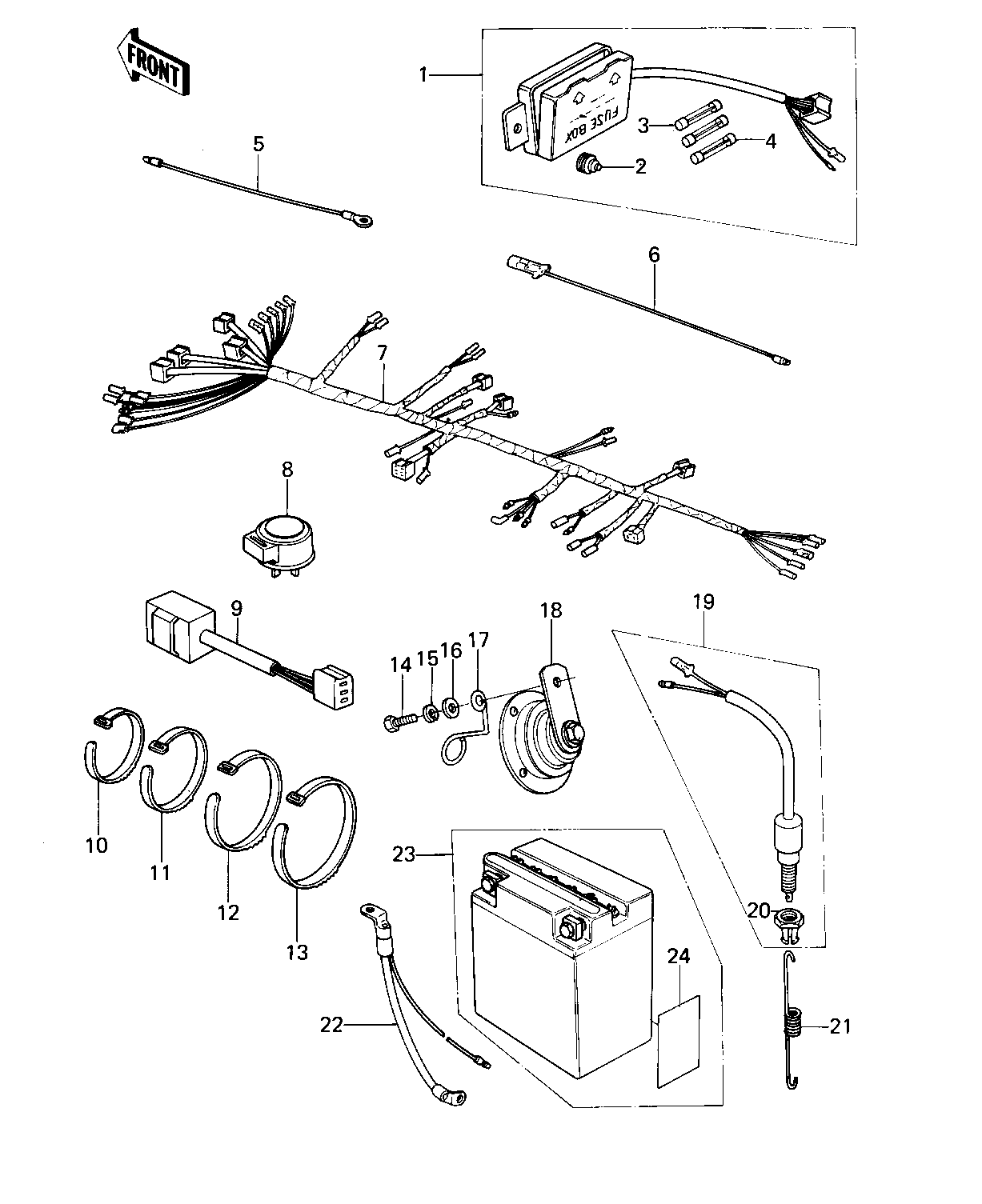

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE ASSY 1 26004-035
DAMPER RUBBER,FUSE 2 92075-279
FUSE-20A 3 26006-005
FUSE 10A 4 26006-003
LEAD WIRE,SIGNAL LAMP 5 26011-063
WIRE,LEAD,REAR SIGNAL 6 26011-1021
HARNESS,MAIN 7 26001-1128
RELAY-TURN SIGNAL 8 27002-011
SWITCH,BK LIGHT IND 9 28019-002
BAND,BREATHER WIRE 10 92072-067
BAND,SHORT 11 92072-030
BAND,MIDDLE 12 92072-031
BAND,LONG 13 92072-032
BOLT,8X20 14 115G0820
WASHER SPRING 8MM 15 461F0800
WASHER PLAIN 8MM 16 410B0800
CLAMP,CABLE 17 92037-155
HORN 18 27003-1005
SWITCH,BRAKE LIGHT 19 27010-025
NUT,BRAKE LAMP SWITCH 20 27037-001
SPRING,BRAKE LIGHT SW 21 27011-015
WIRE LEAD,BATTERY GRD 22 26011-1022
FB BAT FB12A-A 23 26012-1004
LABEL-WARNING,BATTERY 24 56040-1036
