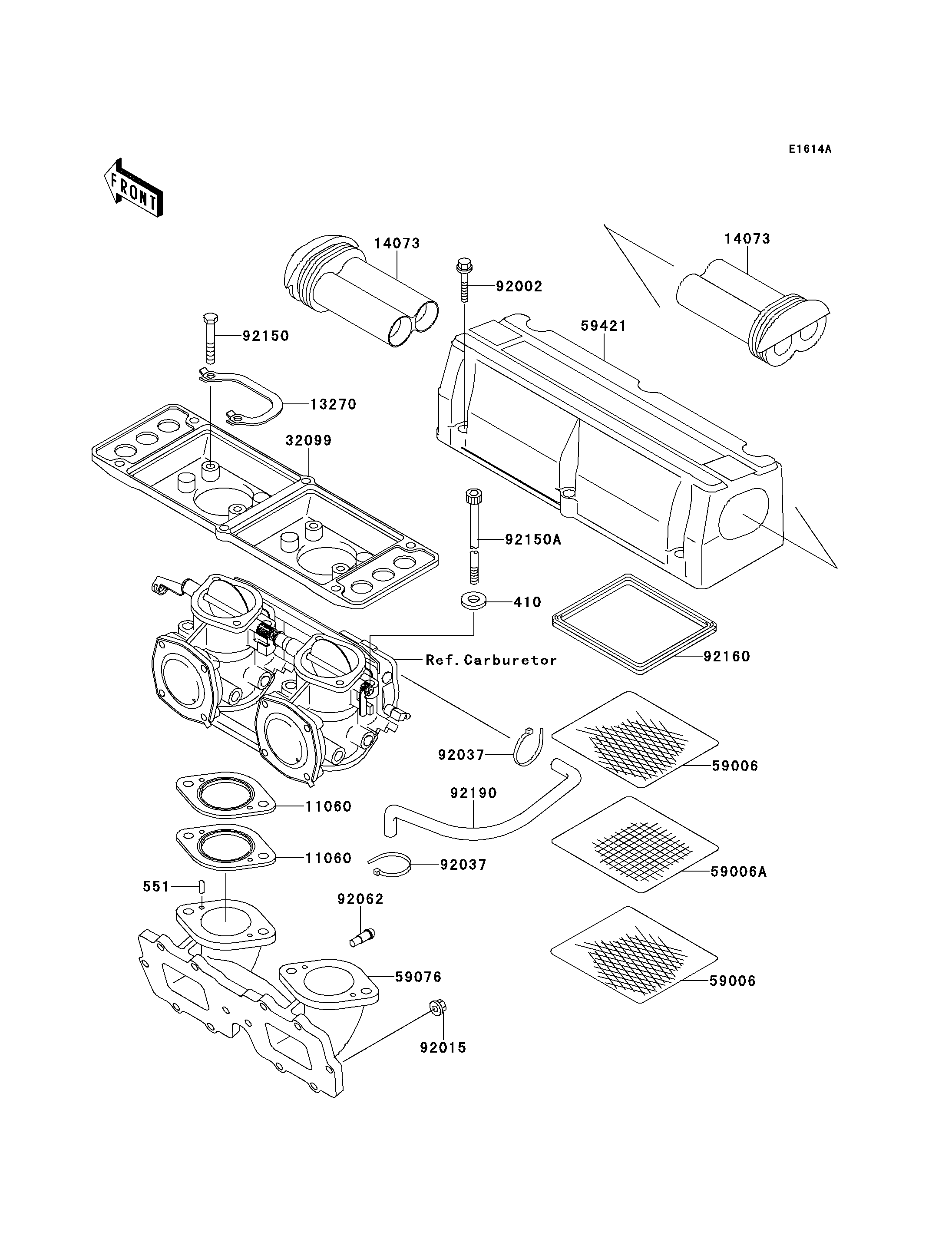

1996 750 SXi - Flame Arrester(JS750-B2/B3)
410
551
11060
11060
13270
14073
14073
32099
59006
59006
59006A
59076
59421
92002
92015
92037
92037
92062
92150
92150A
92160
92190
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-PLAIN-SMALL,8MM | 410 | 410S0800 | 4 | ||
PIN-DOWEL | 551 | 551R0416 | 4 | ||
GASKET,CARBURETOR | 11060 | 11060-3761 | 4 | ||
PLATE | 13270 | 13270-3804 | 2 | ||
DUCT | 14073 | 14073-3733 | 2 | ||
CASE | 32099 | 32099-3801 | 1 | ||
ARRESTER-FLAME | 59006 | 59006-3707 | 4 | ||
ARRESTER-FLAME | 59006A | 59006-3708 | 2 | ||
MANIFOLD-INTAKE | 59076 | 59076-3720 | 1 | ||
COVER-INTAKE | 59421 | 59421-3719 | 1 | ||
BOLT,6X30 | 92002 | 92002-3726 | 6 | ||
NUT,6MM | 92015 | 92015-3767 | 12 | ||
CLAMP | 92037 | 92037-1173 | 2 | ||
NOZZLE | 92062 | 92062-3703 | 2 | ||
BOLT,6X30 | 92150 | 92150-3766 | 4 | ||
BOLT,SOCKET,8X85 | 92150A | 92150-3852 | 4 | ||
DAMPER | 92160 | 92160-3704 | 2 | ||
TUBE | 92190 | 92190-3965 | 1 |
