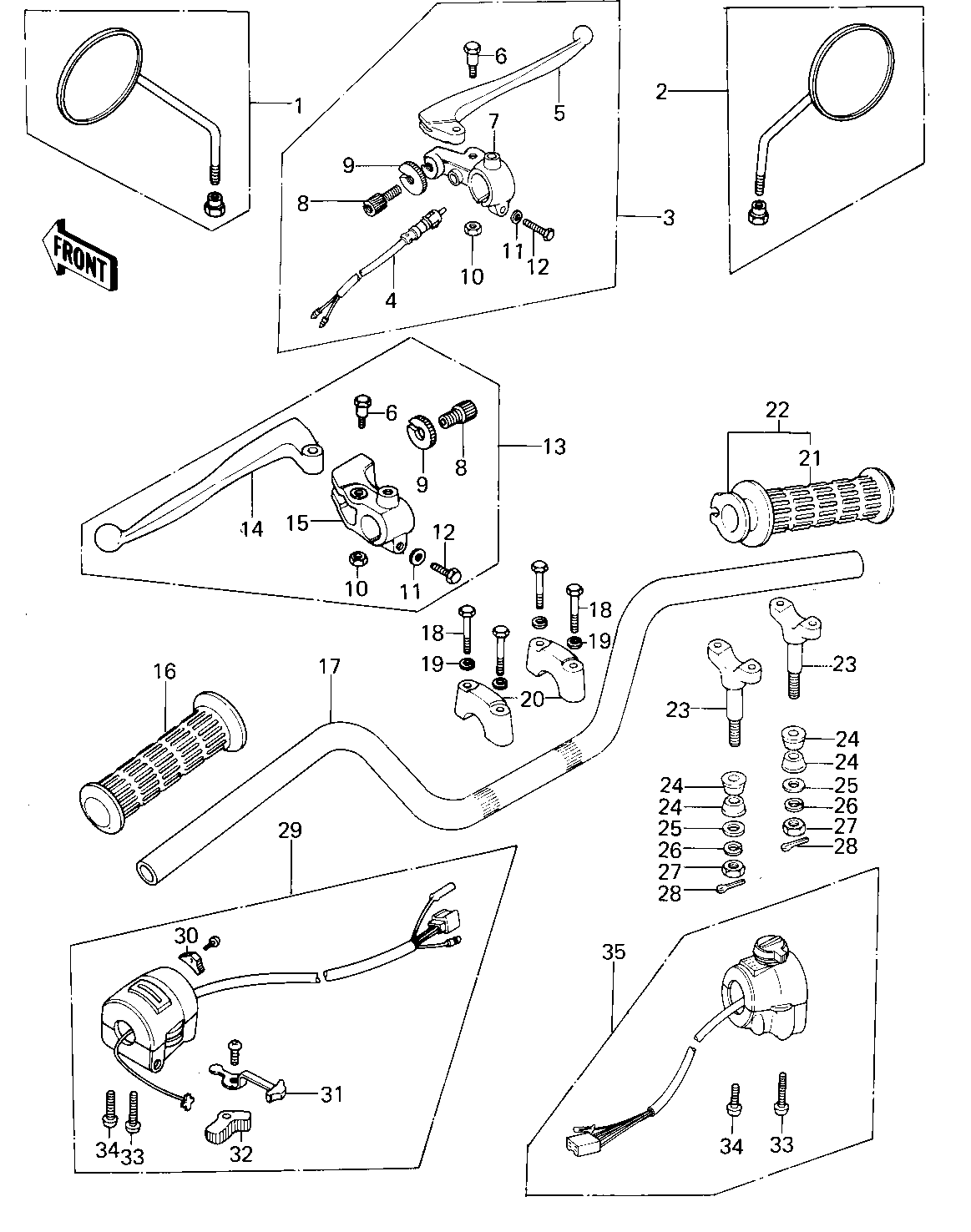

1978 KZ400-C1 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H. 1 56001-1015 1
REAR VIEW MIRROR,R.H. 2 56001-1016 (1 OPTION
LEVER ASSY,FRNT BRAKE 3 46021-031 1
SWITCH-FR. BRAKE LAMP 4 27021-004 1
LEVER FRONT BRAKE 5 46058-004 1
BOLT,HEX HEAD,5X22 6 92007-046 2
HOLDER-FR BRK LEV,BLK 7 46060-009-21 1
SCREW CABLE ADJUST 8 46055-003 2
NUT-LOCK 9 46056-005 2
NUT-LOCK,5MM 10 92019-014 2
WASHER PLAIN 6MM 11 410B0600 2
BOLT HEX HEAD 6X25 12 110N0625 2
LEVER ASSY,CLUTCH 13 46076-044 1
LEVER-CLUTCH 14 46092-015 1
HOLDER-CLUTCH LEV,BLK 15 46094-011-21 1
RUBBER,L.H GRIP 16 46075-028 1
HANDLEBAR 17 46003-1019 1
BOLT 8X38 18 92001-1405 4
WASHER SPRING 8MM 19 461F0800 4
HOLDER-HANDLEBAR 20 46012-008 2
RUBBER,R.H GRIP 21 46061-018 1
GRIP ASSY,THROTTLE 22 46019-038 1
HOLDER-HANDLEBAR LOW 23 46012-010 2
DAMPER RUBBER HANDLE 24 92075-039 4
CAP HANDLEBAR HOLDER 25 46016-003 2
WASHER SPRING 10MM 26 461F1000 2
NUT,10MM 27 314B1000 2
PIN,SNAP 28 554A0800 2
HOUSING ASSY,CONT,L.H 29 46091-1079 1
KNOB,LIGHTING SW L.H 30 46044-013 1
KNOB,LIGHTING SW L.H 31 46043-005 1
BUTTON, HORN PUSH 32 46028-006 1
SCREW-PAN-CROS 33 220B0535 2
SCREW PAN HEAD 5X30 34 220B0530 2
HOUSING ASSY,R,H, 35 46091-1043 1
