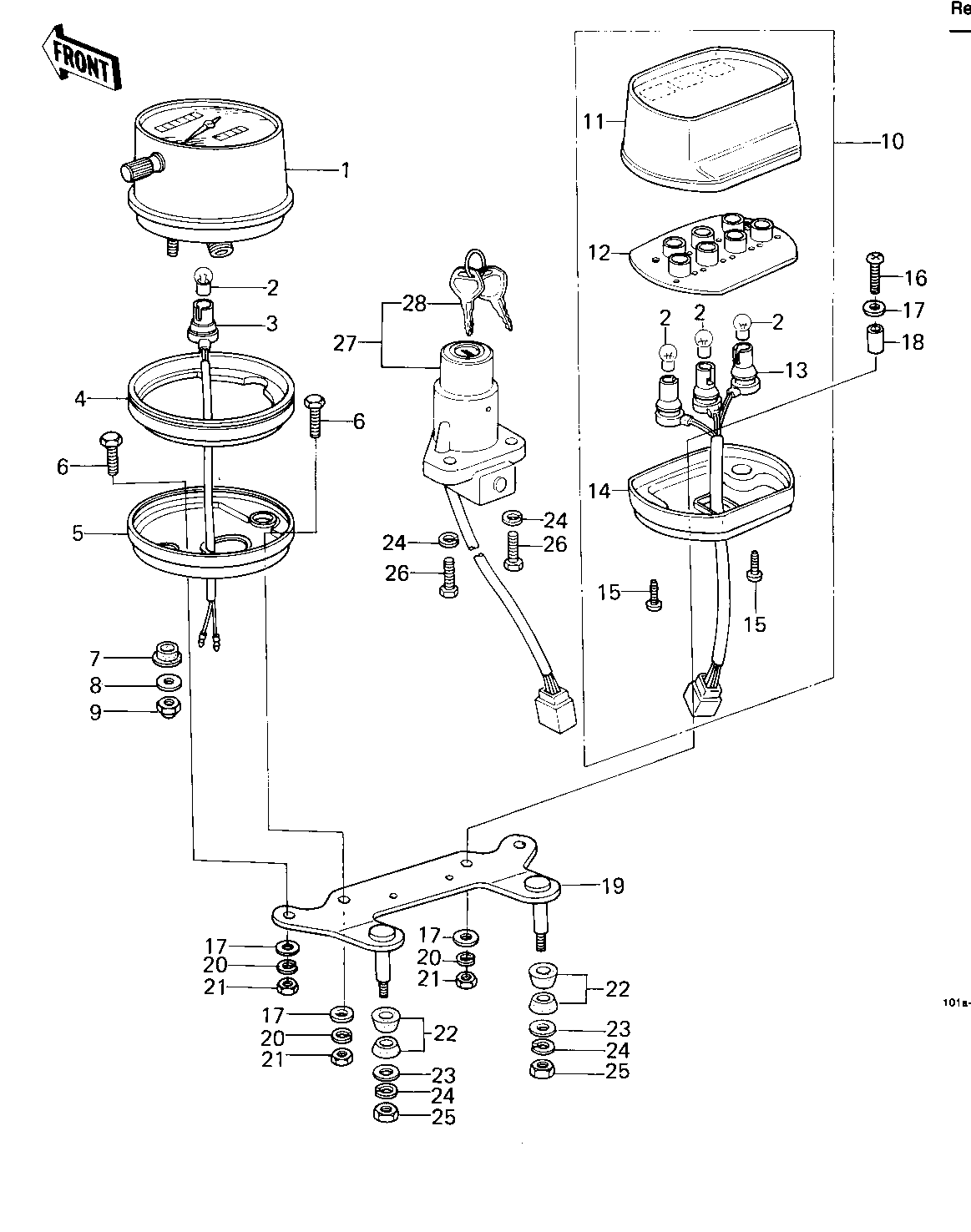

1978 KZ400-C1 - METERS/IGNITION SWITCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25006-061 1
SPEEDOMETER,ASSY,KPH (Canada) 1 25005-1020 1
BULB 12V 3W 2 92069-018 4
SOCKET,SPEEDOMETER 3 23008-1006 1
SHOCK DAMPER,SPEEDMET 4 25019-031 1
COVER,METER 5 25012-025 1
BOLT,HEX HEAD,6X14 6 92003-204 2
DAMPER RUBBER-METER 7 25019-013 2
WASHER PLAIN 5MM 8 411B0500 2
NUT,5MM 9 92015-059 2
LAMP ASSY,PILOT 10 23016-1011 1
COVER,PILOT LAMP,UPPR 11 25023-1003 1
PLATE,PILOT LAMP 12 13169-1082 1
SOCKET,PILOT LAMP 13 23008-1019 1
COVER,PILOT LAMP,LOW 14 14025-1028 1
SCREW,TAPPING,3.5X16 15 92009-1027 2
SCREW PAN HEAD 6X25 16 220B0625 1
WASHER PLAIN 6MM 17 411B0600 4
COLLAR,PILOT LAMP 18 92027-1074 1
BRACKET,METER 19 25008-1007 1
WASHER SPRING 6MM 20 461F0600 3
NUT 6MM 21 311B0600 3
DAMPER RUBBER,METER 22 92075-248 4
WASHER 6.5X22X1.6T 23 92022-237 2
WASHER SPRING 6MM 24 461F0600 4
NUT 6MM 25 311B0600 2
BOLT-UPSET,6X16 26 112G0616 2
SWITCH ASSY,IGNITION 27 27005-1031 1
KEY SET,#N01 28 27008-1003-01 AR 27008-1003-01 THRU 27008-1003-
KEY SET,#N35 28 27008-1003-35 AR
KEY,BLANK 28 27008-1028 AR
KEY,BLANK 28 27008-1029 AR
KEY,BLANK 28 27008-1034 AR
KEY,BLANK 28 27008-1035 AR
