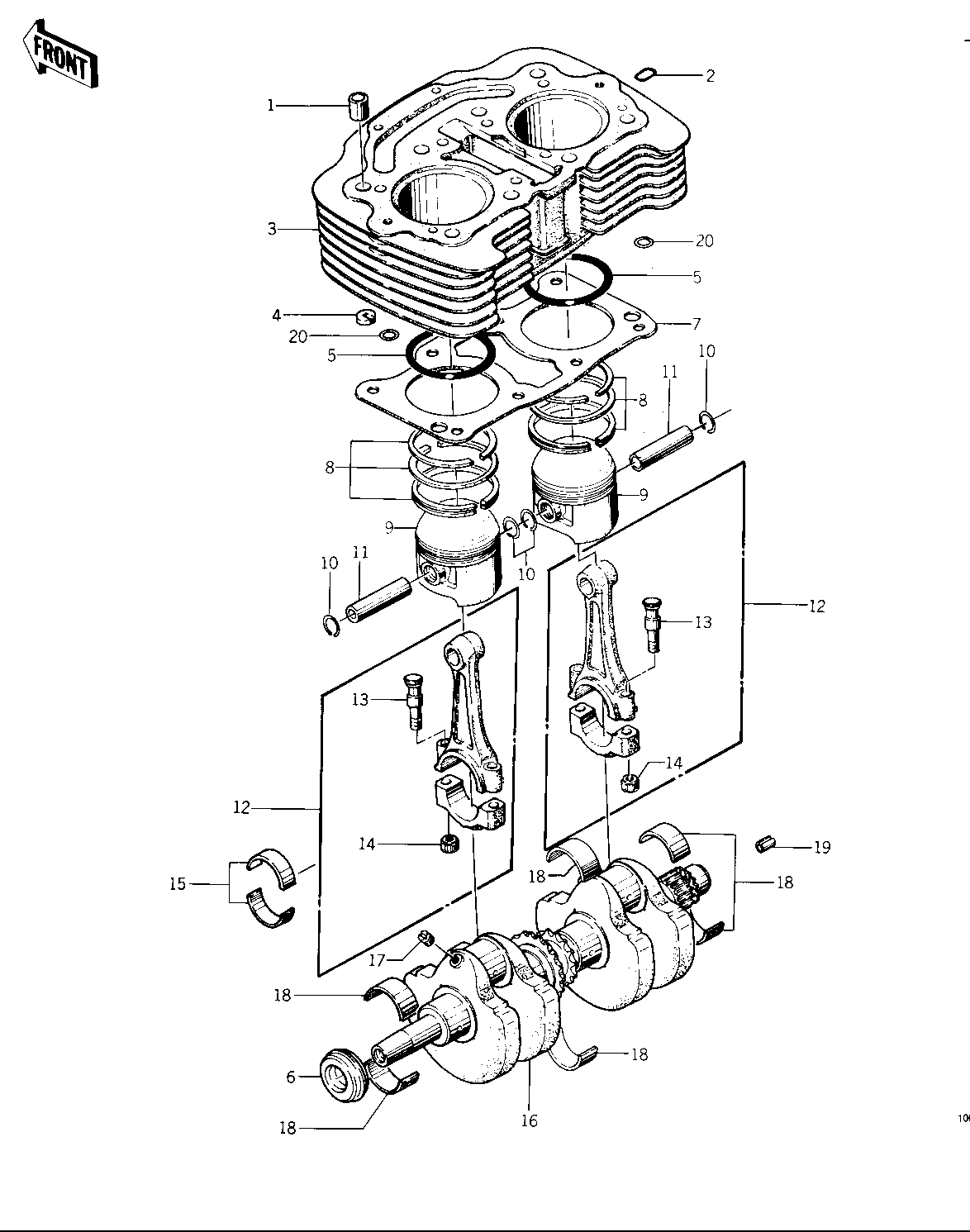

1975 KZ400-D - CYLINDER/PISTONS/CRANKSHAFT ('74 -'75 KZ

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN,DOWEL,14MM 1 92042-032 2
"O" RING,CYLINDER 2 11009-1012 2
CYLINDER, 3 11005-146 1
CYLINDER, 3 11005-146 1
DAMPER RUBBER,CYLNDR 4 92075-256 12
"O" RING 5 92055-056 2
OIL SEAL,L.H CRNKSFT 6 92050-064 1
GASKET,CYLINDER BASE 7 11009-040 1
RING SET,PISTON,STD 8 13008-5028 2
RING SET,PISTON,STD 8 13008-5028 2
RING SET,0.020",O/S 8 13025-5013 (2
RING SET,0.020",O/S 8 13025-5013 (2
RING SET,0.040",O/S 8 13024-5012 (2
RING SET,0.040",O/S 8 13024-5012 (2
PISTON,STD 9 13001-069 2
PISTON,0.020" O.S 9 13029-070 (2
PISTON,0.040" O.S 9 13027-063 (2
CIRCLIP PISTON PIN 10 92036-005 4
PIN-PISTON 11 13002-029 2
CONNECTING ROD ASSY,H 12 13032-046-HH 2
CONNECTING ROD ASSY,H 12 13032-046-HH 2
CONNECTING ROD ASSY,H 12 13032-046-HH 2
CONNECTING ROD ASSY,H 12 13032-046-HH 2
CONNECTING ROD ASSY,I 12 13032-046-II 2
CONNECTING ROD ASSY,J 12 13032-046-JJ 2
UNAVAILABLE IN PRICE BOOK 12 13032-046-KK 2
BOLT 13 92001-169 4
BOLT 13 92001-169 AL
NUT,CONNECTING ROD 14 92016-053 4
NUT,FLANGED,8MM 14 92015-1311 AL
METAL,CONROD BEARING 15 13034-037 4
METAL,CON ROD 15 13034-047 4
METAL,CON ROD 15 13034-048 4
CRANKSHAFT ASSY 16 13037-061 1
SCREW,SLOTTED,6X8 17 291H0608 2
BUSHING,CRANKSHAFT 18 92028-1102 8
BUSHING,CRANKSHAFT 18 92028-1102 8
BUSHING,CRANKSHAFT 18 92028-1102 8
BUSHING,CRANKSHAFT 18 92028-1102 8
PIN-SPRING,4X8 19 555A0408 1
"O" RING 20 92055-074 2 ~E/NO.070540
"O" RING 20 92055-090 2 E/NO.070541~
