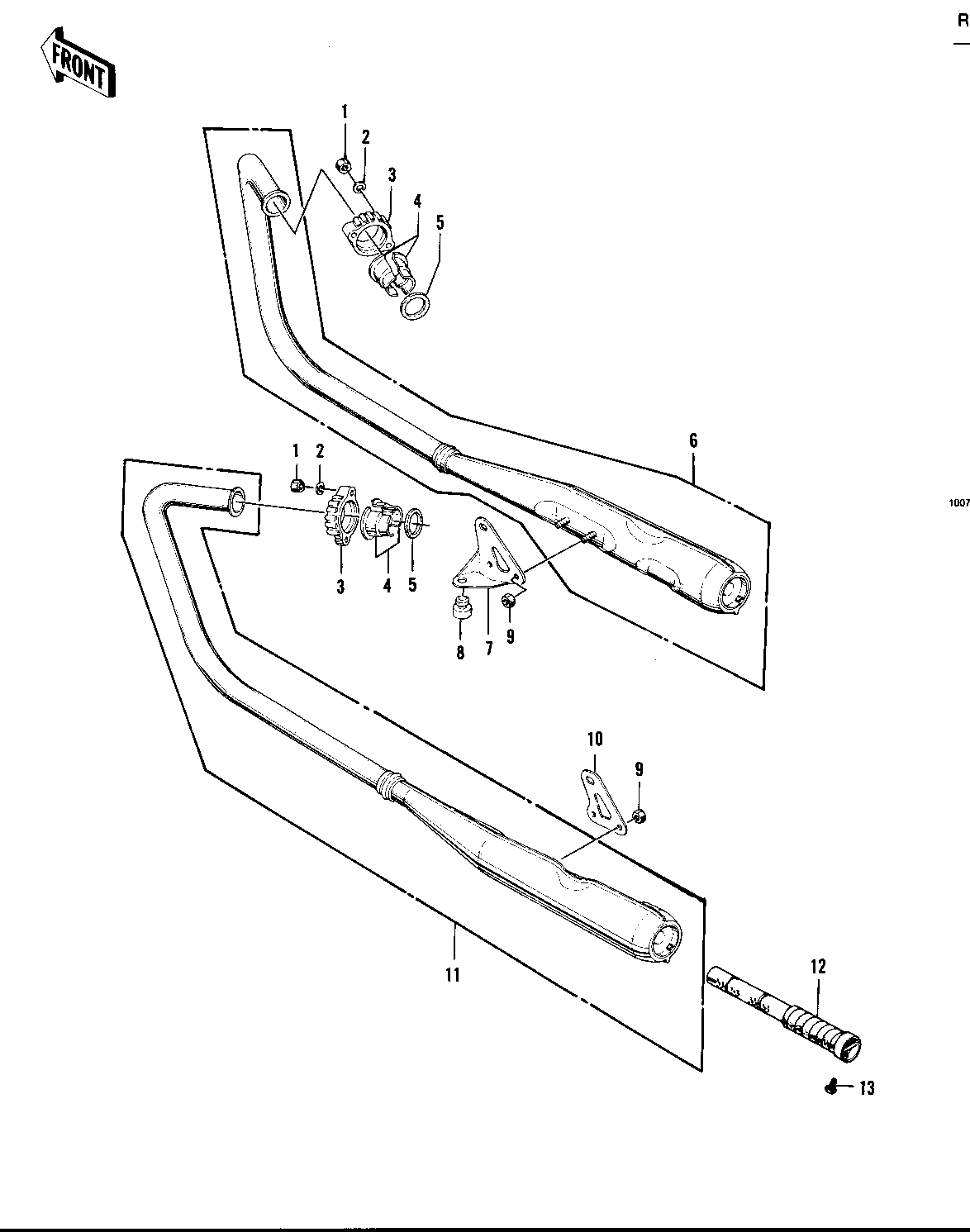

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,6MM 1 311N0600 4
WASHER SPRING 6MM 2 461F0600 4
HOLDER,EX PIPE,BARREL 3 18069-056-2H 2 BARREL
COLLAR,EXHAUST PIPE 4 92027-224 4
GASKET,EXHAUST PIPE 5 11060-1242 2
MUFFLER ASSY R.H. 6 18001-166 1
BRACKET,METER,R.H 7 18024-024 1
DAMPER RUBB MAIN STAD 8 92075-015 1
NUT,LOCK,8MM 9 92015-1124 4
BRACKET,MUFFLER,L.H 10 18024-025 1
MUFFLER ASSY,L.H 11 18001-165 1
BAFFLE TUBE 12 18033-085 2
BOLT-UPSET,6X16 13 112G0616 2
