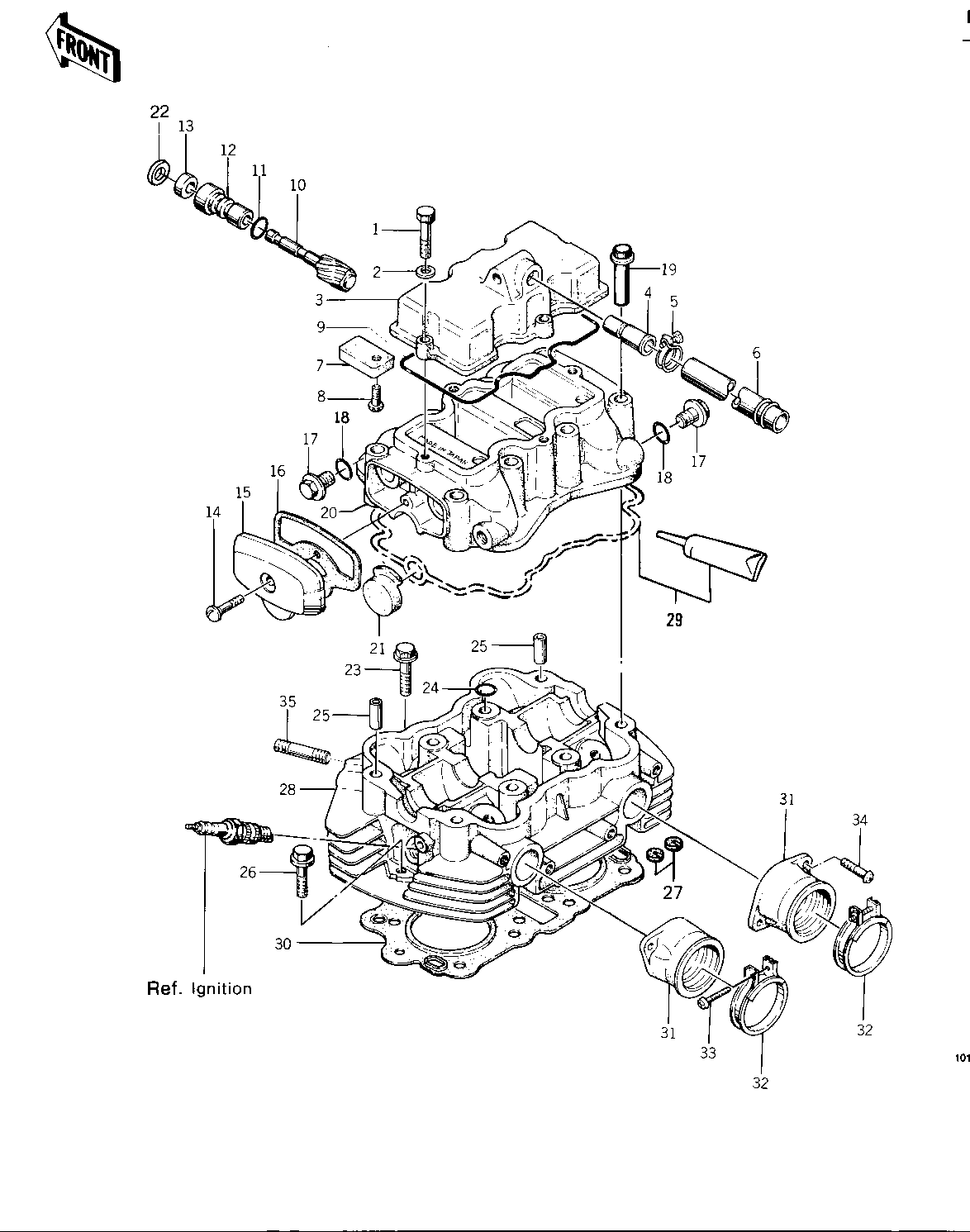

1976 KZ400-D3 - CYLINDER HEAD/COVERS ('76 -'77 KZ400 - D

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT HEX HEAD 8X28 1 114G0828 4
WASHER PLAIN 8MM 2 410B0800 4
COVER,BREATHER 3 14070-005 1
BREATHER JOINT 4 14067-006 1
CLAMP,BREATHER HOSE 5 92037-123 2
CLAMP,BREATHER HOSE 5 92037-192 2
HOSE,BREATHER 6 92059-125 1
PLATE,BREATHER 7 14068-006 1
"O" RING,BRETHER COV 9 92055-064 1
GEAR,TACHOMETER 10 13223-009 1
RING-O,10MM 11 92055-1149 1
GUIDE,TACHOMETER GEAR 12 92087-011 1
OIL SEAL 13 92050-075 1
SCREW OVL CNTSK 6X25 14 222E0625 2
CAP,CYL HEAD COVER 15 11027-003 2
GASKET,CYL HEAD COVER 16 11023-007 2
PLUG 17 92066-066 4
RING-O 18 92055-1146 4
NUT,CYLINDER HEAD 19 92015-071 8
COVER,CYLINDER HEAD 20 11022-013-2H 1 BARREL FINISH
COVER,CYLINDER HEAD 20 11022-013-2H 1 BARREL FINISH
CAP,CLY HEAD COVER 21 92073-035 2
GASKET,TACHO GEAR 22 92065-104 1
BOLT, HEX HEAD, 6X34 23 92003-159 2
"O" RING,HD COV BOLT 24 92055-067 4
PIN,DOWEL,12MM 25 92042-031 2
BOLT, HEX HEAD, 8X34 26 92003-153 2
DAMPER RUBBER,CYL HD 27 92075-255 8
CYLINDER HEAD,BARREL 28 11002-018-2H 1 BARREL FINISH
CLEAR SILICONE 29 K61079-007 AR FOR CYLINDER HEAD COVER
GASKET,CYLINDER HEAD 30 11004-1003 1
DUCT,ENGINE INTAKE 31 16065-037 2 KZ400-D3
DUCT,ENGINE INTAKE 31 16065-048 2 KZ400-D4
CLAMP,57MM,BLACK 32 92037-1452 2 KZ400-D3
CLAMP,CARBURETOR 32 92037-1021 2 KZ400-D4
SCREW-PAN-CROS 33 220B0535 2 KZ400-D3
SCREW-PAN-CROS,5X25 33 220B0525 2 KZ400-D4
SCREW PAN HEAD 6X18 34 220B0618 4
STUD,6X46 35 92004-049 4
