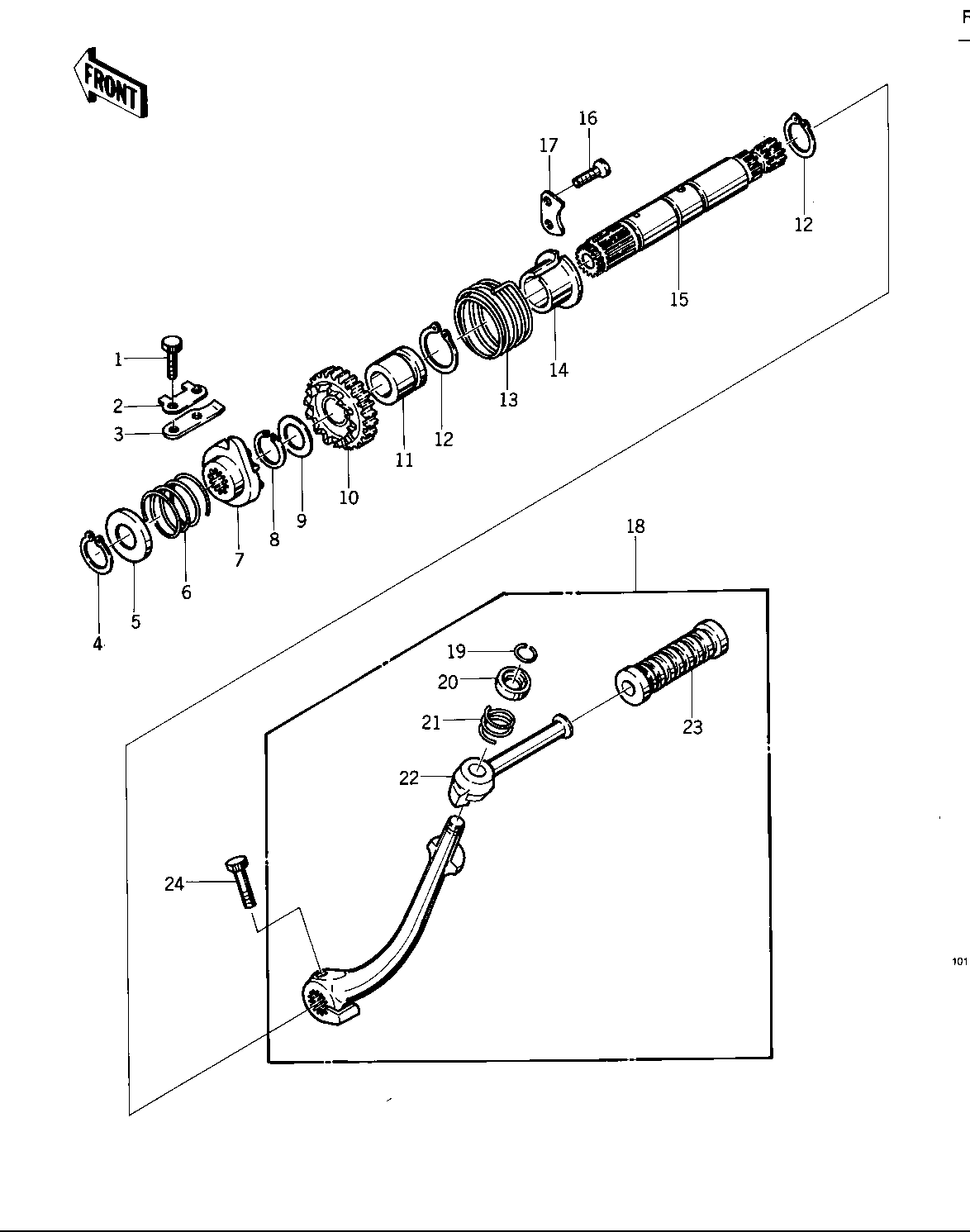

1976 KZ400-D3 - KICKSTARTER MECHANISM ('76 -'77 KZ400 -
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET 6X14 | 1 | 112B0614 | 2 | ||
| WASHER-LOCK | 2 | 92024-036 | 1 | ||
| STOPPER,KICKSTARTER | 3 | 13072-012 | 1 | ||
| CIRCLIP,19MM | 4 | 480J1900 | 1 | ||
| CAP,KICKSTARTER | 5 | 92102-008 | 1 | ||
| SPRING RATCHET | 6 | 92081-104 | 1 | ||
| RATCHET,KICK SHAFT | 7 | 13078-011 | 1 | KZ400-D3 | |
| RATCHET,KICK SHAFT | 7 | 13078-011 | 1 | KZ400-D4 | |
| CIRCLIP,18MM | 8 | 92033-029 | 1 | ||
| WASHER THRUST | 9 | 92022-112 | 1 | ||
| GEAR,KICKSTARTER | 10 | 13068-031 | 1 | ||
| BUSHING,KICK SHAFT | 11 | 92028-175 | 1 | ||
| CIRCLIP, 20MM | 12 | 480J2000 | 2 | ||
| SPRING,KICK RETURN | 13 | 92082-006 | 1 | ||
| GUIDE,KICK SPRING | 14 | 13070-009 | 1 | ||
| SHAFT,KICKSTARTER | 15 | 13066-036 | 1 | ||
| SCREW CNTSNK HD 6X16 | 16 | 221B0616 | 2 | ||
| PLATE-DRUM LEV POSTON | 17 | 13169-007 | 1 | ||
| PEDAL ASY,KICKSTARTER | 18 | 13058-053 | 1 | ||
| CIRCLIP,KICK | 19 | 92036-025 | 1 | KZ400-D3 | |
| CIRCLIP,KICK | 19 | 92036-026 | 1 | KZ400-D4 | |
| WASHER,KICKPEDAL | 20 | 92022-294 | 1 | ||
| SPRING,KICK PEDAL | 21 | 92081-136 | 1 | ||
| PEDAL,KICKSTARTER | 22 | 13060-017 | 1 | ||
| RUBBER KICK PEDAL | 23 | 13063-004 | 1 | ||
| BOLT HEX HEAD 8X28 | 24 | 114G0828 | 1 | KZ400-D3 | |
| BOLT HEX HEAD 8X28 | 24 | 114G0828 | 1 | KZ400-D4 |
| BOLT-UPSET 6X14 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-LOCK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,19MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,KICKSTARTER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING RATCHET | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,KICK SHAFT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| RATCHET,KICK SHAFT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| CIRCLIP,18MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRUST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,KICKSTARTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,KICK SHAFT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP, 20MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK RETURN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SPRING | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,KICKSTARTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X16 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE-DRUM LEV POSTON | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL ASY,KICKSTARTER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,KICK | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| CIRCLIP,KICK | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| WASHER,KICKPEDAL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK PEDAL | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,KICKSTARTER | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER KICK PEDAL | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 8X28 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| BOLT HEX HEAD 8X28 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
