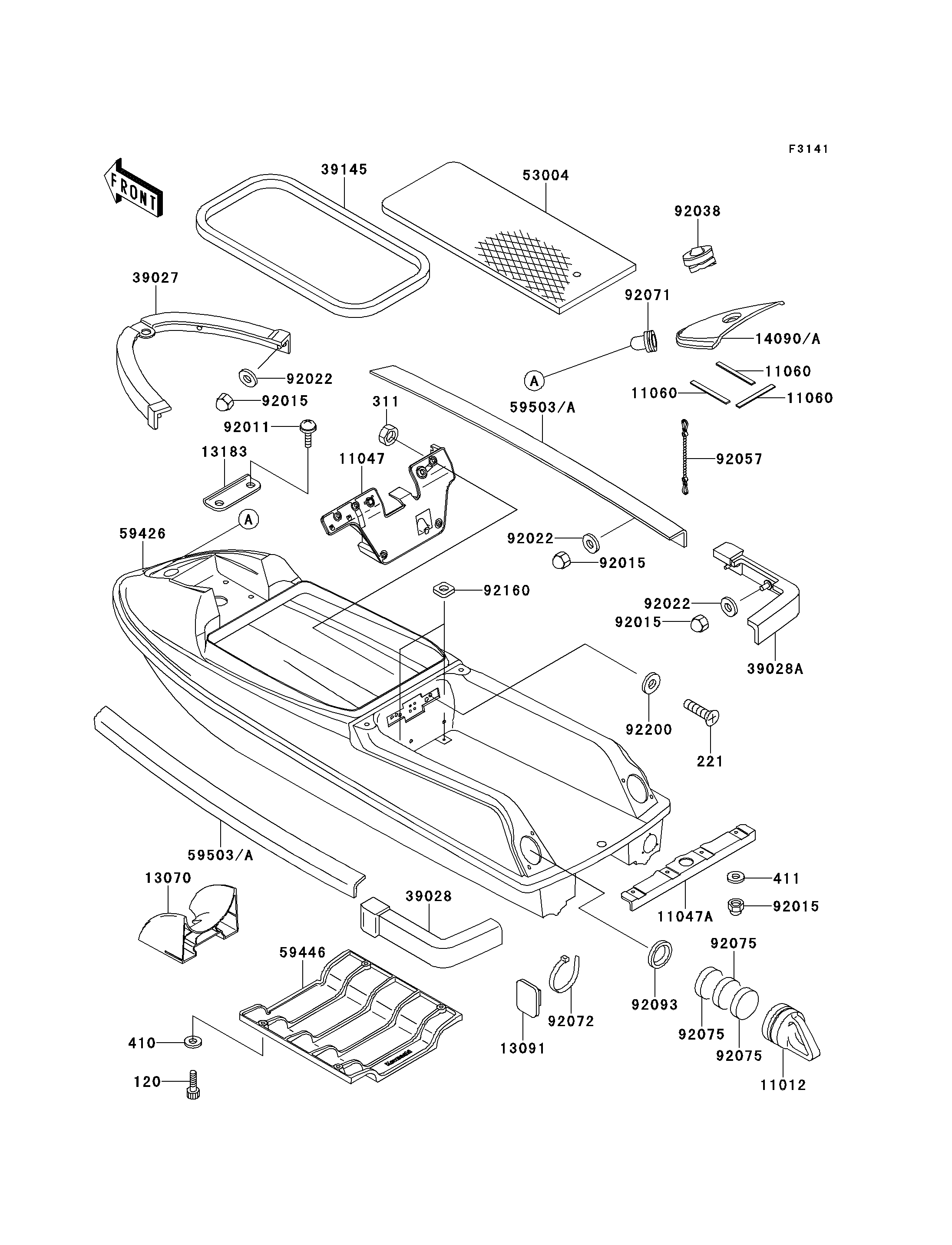

1996 750 SXi - Hull

DOWNLOAD PDF
SELECT A NEW PART
120
221
311
410
411
11012
11047
11047A
11060
11060
11060
13070
13091
13183
14090
39027
39028
39028A
39145
53004
59446
59503A
59503A
92011
92015
92015
92015
92015
92022
92022
92022
92038
92057
92071
92072
92075
92075
92075
92093
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120R0620 4
SCREW-CSK-CROS,6X20 221 221R0620 5
NUT-HEX,6MM 311 311R0600 5
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN,5MM 411 411S0500 4
CAP,VIOLET 11012 11012-3752-RE 2
BRACKET,CONTROL KNOB 11047 11047-3745 1
BRACKET 11047A 11047-3754 1
GASKET 11060 11060-3722 3
GUIDE,INTAKE 13070 13070-3708 1
HOLDER,BAND 13091 13091-3764 8
PLATE 13183 13183-3787 1
COVER,TANK CAP,J.S.VIOLET 14090 14090-3707-23 1
BUMPER-FRONT,VIOLET 39027 39027-3726-RE 1
BUMPER-REAR,LH,VIOLET 39028 39028-3726-RE 1
BUMPER-REAR,RH,VIOLET 39028A 39028-3727-RE 1
TRIM-SEAL 39145 39145-3731 1
MAT 53004 53004-3740 1
COVER-JET PUMP 59446 59446-3715 1
FENDER-BOAT,J.S.VIOLET 59503A 59503-3704-RE 2
SCREW,TAPPING 92011 92011-561 2
NUT,CAP,5MM 92015 92015-3802 24
WASHER 92022 92022-567 20
KEY,TANK CAP 92038 92038-3707 1
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3780 1
BAND,L=145 92072 92072-3768 8
DAMPER 92075 92075-3719 6
SEAL,OSR70X82X7.5 92093 92093-3704 2
DAMPER 92160 92160-3797 2
WASHER 92200 92200-3720 5
HULL-COMP,J.WHITE 59426 59426-3827-8C 1 US
