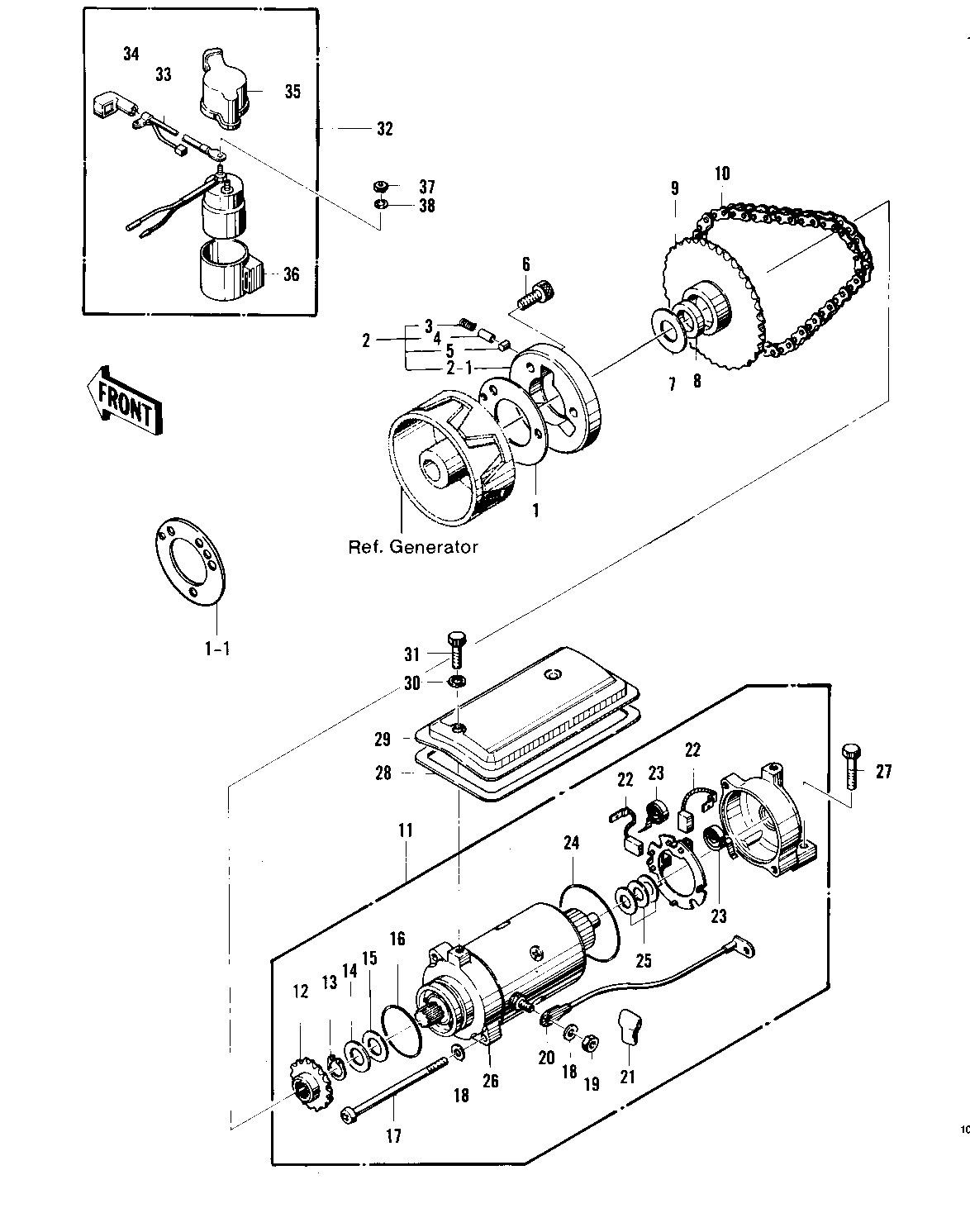

1976 KZ400-D3 - STARTER MOTOR/STARTER CLUTCH ('76 -'77
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER,FREE WHEEL | 1 | 92026-082 | 1 | KZ400-D3 | |
PLATE,CLUTCH STARTER | 1-1 | 92026-112 | 1 | KZ400-D4 | |
CLUTCH ASSY,STARTER | 2 | 13193-1001 | 1 | ||
.CLUTCH ASSY,STARTER | 2-1 | 13193-1001 | 1 | ||
.SPRING | 3 | 92081-110 | 3 | ||
.PIN | 4 | 92043-087 | 3 | ||
.ROLLER | 5 | 92122-004 | 3 | ||
BOLT | 6 | 120P0816 | 3 | ||
WASHER,THRUST | 7 | 92026-100 | 1 | ||
OIL SEAL | 8 | 92050-066 | 1 | ||
GEAR STARTER CLUTCH | 9 | 21170-001 | 1 | ||
CHAIN,DYNAMO | 10 | 92057-1009 | 1 | ||
CHAIN,DYNAMO | 10 | 92057-1009 | AL | ||
MOTOR ASSY,STARTER | 11 | 21163-1011 | 1 | ||
MOTOR ASSY,STARTER | 11 | 21163-1011 | AL | ||
.SPROCKET STARTNG MOT | 12 | 21053-002 | 1 | ||
.CIRCLIP 14MM | 13 | 480J1400 | 1 | ||
.WASHER,PLAIN,14MM | 14 | 21025-008 | 1 | 0.2T | |
.WASHER PLAIN 14MM | 15 | 21025-009 | 1 | 0.5T | |
."0" RING,42.8MM | 16 | 21027-005 | 1 | ||
.SCREW PAN HEAD 6X110 | 17 | 220B06110 | 2 | ||
.WASHER SPRING 6MM | 18 | 461F0600 | 4 | ||
.NUT 6MM | 19 | 312B0600 | 2 | ||
.WIRE STRTER MOT LEAD | 20 | 26010-035 | 1 | ||
.CAP,STARTING MOTOR | 21 | 21017-020 | 1 | ||
.BRUSH CARBON | 22 | 21039-004 | 2 | ||
.SPRING CARBON BRUSH | 23 | 21040-004 | 2 | ||
."0" RING,62MM | 24 | 21027-006 | 1 | ||
.WASHER,PLAIN,9MM | 25 | 21025-007 | 3 | ||
.REPAIR KIT,KZ400 STAT | 26 | 99990-536 | 1 | ||
BOLT-UPSET | 27 | 112G0625 | 2 | ||
GASKET START MOT COV | 28 | 21166-002 | 1 | ||
COVER STARTER MOTOR | 29 | 21165-002 | 1 | ||
WASHER,PLAIN,6MM | 30 | 410D0600 | 2 | ||
BOLT-FLANGED-SMALL | 31 | 132E0612 | 2 | ||
SWITCH ASSY,MAGNETIC | 32 | 21164-006 | 1 | ||
.WIRE,LEAD,MAG SWITCH | 33 | 26011-1027 | 1 | ||
.CAP,MAG SWTCH TERMNL | 34 | 21017-021 | 1 | ||
.COVER MAGNETIC SWITCH | 35 | 21141-004 | 1 | ||
.DAMPER MAG SWITCH SHK | 36 | 21064-002 | 1 | ||
NUT 6MM | 37 | 311B0600 | 2 | ||
WASHER SPRING 6MM | 38 | 461F0600 | 2 |
