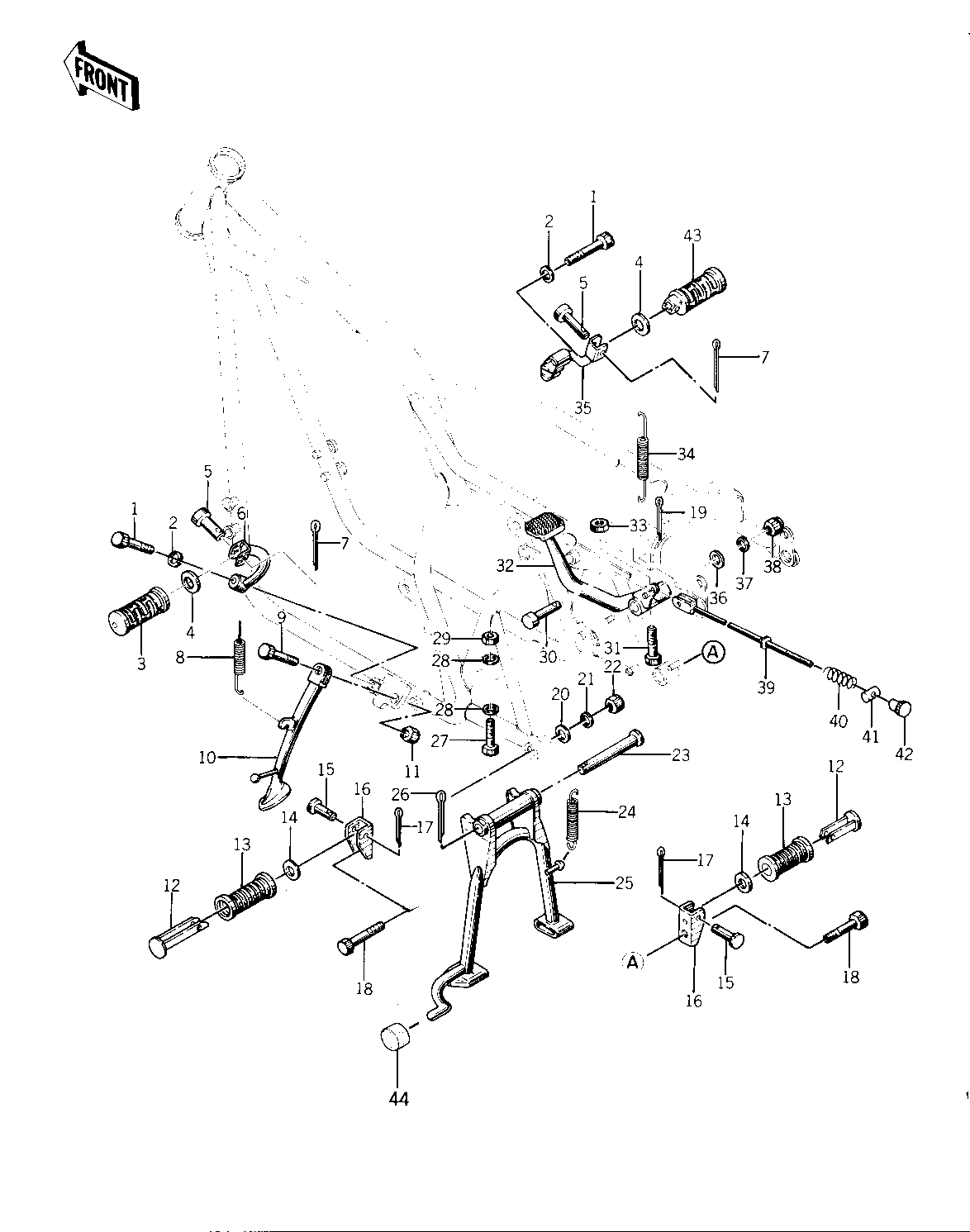

1976 KZ400-D3 - FOOTRESTS/STANDS/BRAKE PEDAL ('76 -'77
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-HEX HEAD,12X36 | 1 | 113B1236A | 2 | ||
WASHER SPRING 12MM | 2 | 461F1200 | 2 | ||
BAR-FOOTREST,L.H | 3 | 34028-011 | 1 | ||
WASHER,PLAIN | 4 | 92022-250 | 2 | ||
PIN-FOOTREST BAR FIT | 5 | 92043-080 | 2 | ||
BRACKET,FOOTREST,L.H | 6 | 34003-053 | 1 | ||
PIN COTTER 2.5X16 | 7 | 550D2516 | 2 | ||
SPRING,SIDE STAND | 8 | 34025-007 | 1 | ||
BOLT, SIDE STAND FIT | 9 | 92003-157 | 1 | ||
STAND-SIDE | 10 | 34024-048 | 1 | ||
NUT 10MM | 11 | 315B1000 | 1 | ||
BAR-RR FOOTREST (OPT) | 12 | 34028-009 | 2 | ||
BAR-RR FOOTREST (OPT) | 12 | 34028-009 | 2 | ||
RUBBER,REAR FOOTREST | 13 | 92076-024 | 2 | ||
WASHER-PLAIN (OPT) | 14 | 92022-199 | 2 | ||
PIN | 15 | 92043-1464 | 2 | ||
BRACKET,STEP | 16 | 32054-1021 | 2 | ||
PIN,COTTER,2.0X12 | 17 | 550D2012 | 2 | ||
BOLT,HEX HEAD,10X50 | 18 | 92001-1254 | 2 | ||
PIN COTTER 2.5X16 | 19 | 550D2516 | 1 | ||
WASHER PLAIN 10MM | 20 | 410B1000 | 2 | ||
WASHER SPRING 10MM | 21 | 461F1000 | 2 | ||
NUT,10MM | 22 | 314B1000 | 2 | KZ400-D3 | |
NUT,10MM | 22 | 314B1000 | 2 | KZ400-D4 | |
SHAFT,MAIN STAND | 23 | 34019-015 | 1 | ||
SPRING,MAIN STAND | 24 | 34023-016 | 1 | KZ400-D3 | |
SPRING,MAIN STAND | 24 | 34023-016 | 1 | KZ400-D4 | |
STAND-MAIN | 25 | 34011-053 | 1 | KZ400-D3 | |
STAND-MAIN | 25 | 34011-053 | AL | ||
STAND-MAIN | 25 | 34011-053 | 1 | KZ400-D4 | |
PIN COTTER 3.0X30 | 26 | 550D3030 | 1 | ||
BOLT 6X35 | 27 | 110R0635 | 2 | KZ400-D3 | |
BOLT 6X35 | 27 | 110R0635 | 2 | KZ400-D4 | |
WASHER PLAIN 6MM | 28 | 410B0600 | 4 | ||
NUT | 29 | 92019-008 | 2 | ||
PIN,BRAKE ROD FITTING | 30 | 92043-090 | 1 | ||
BOLT-UPSET | 31 | 112G0625 | 1 | ||
PEDAL,BRAKE | 32 | 43001-064 | 1 | ||
NUT 6MM | 33 | 311B0600 | 1 | ||
SPRING,BRAKE PEDAL | 34 | 43005-029 | 1 | ||
BRACKET,FOOTREST,R.H | 35 | 34003-054 | 1 | ||
WASHER,8.5X20X1.6 | 36 | 92022-1561 | 1 | ||
WASHER SPRING 8MM | 37 | 461F0800 | 1 | ||
NUT,CAP AND LOCK,8MM | 38 | 92019-013 | 1 | ||
ROD,BRAKE | 39 | 43011-026 | 1 | ||
SPRING,BRAKE ROD | 40 | 43012-001 | 1 | ||
PIN-BRAKE ROD | 41 | 92043-065 | 1 | ||
NUT-BRAKE ROD ADJUST | 42 | 92015-042 | 1 | ||
BAR-FOOTREST,R.H | 43 | 34028-012 | 1 | ||
DAMPER RUBB-MAIN STND | 44 | 92075-115 | 1 |
