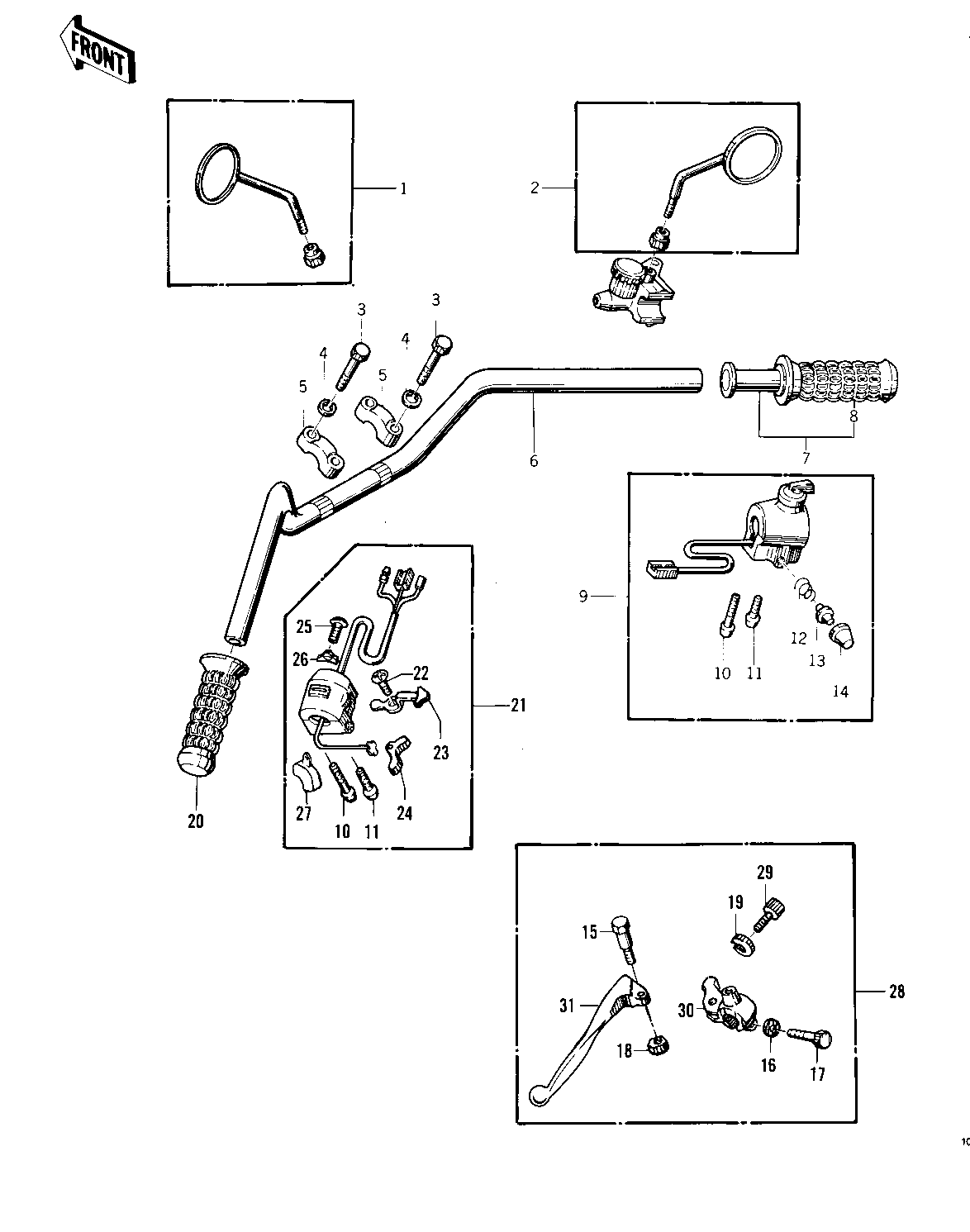

1976 KZ400-D3 - HANDLEBAR ('76 -'77 KZ400 - D3/D4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H 1 56003-019 1 KZ400-D3
REAR VIEW MIRROR,L.H 1 56003-019 1 KZ400-D4
REAR VIEW MIRROR,R.H 2 56002-029 1 KZ400-D3
REAR VIEW MIRROR,R.H 2 56002-029 1 KZ400-D4
BOLT 8X38 3 92001-1405 4
WASHER SPRING 8MM 4 461F0800 4
HOLDER-HANDLEBAR 5 46012-008 2
HANDLEBAR 6 46003-034 1
GRIP ASSY,THROTTLE 7 46019-038 1
RUBBER,R.H GRIP 8 46061-018 1
HOUSING ASSY,R.H 9 46091-1039 1
HOUSING ASSY,R.H 9 46091-1039 AL
SCREW-PAN-CROS 10 220B0535 1
SCREW PAN HEAD 5X30 11 220B0530 1
SWITCH ASSY,HORN BUTN 12 27010-1009 1
SWITCH ASSY,HORN BUTN 13 27010-1009 1
SWITCH ASSY,HORN BUTN 14 27010-1009 1
BOLT,HEX HEAD 15 92007-047 1
WASHER PLAIN 6MM 16 411B0600 1
BOLT 6X22 17 112B0622 1 KZ400-D3
BOLT, HEX HEAD 6X22 17 110N0622 1 KZ400-D4
NUT 18 92019-008 1 KZ400-D3
NUT-LOCK,5MM 18 92019-014 1 KZ400-D4
NUT,CABLE ADUST NUT 19 46056-007 1
RUBBER,L.H GRIP 20 46075-028 1
HOUSING ASSY,CONT,L.H 21 46091-1079 1
SCREW CNTSNK HD 3X8 22 221B0308A 1
KNOB,LIGHTING SW L.H 23 46043-005 1
BUTTON, HORN PUSH 24 46028-006 1
L.H GRIP SWITCH KIT 25-27 99990-530 1
.SCREW PAN HEAD 3X5 25 220B0305A 1
.KNOB,LIGHTING SW L.H 26 46044-013 1
.SWITCH,L.H 27 46089-014 1
LEVER ASSY,CLUTCH 28 46076-052 1
SCREW CABLE ADJUST 29 46055-003 1
SCREW,CABLE ADJUSTER 29 92009-1022 AL
HOLDER,CLUTCH LEVER 30 46094-017 1
LEVER,CLUTCH 31 46092-023 1
