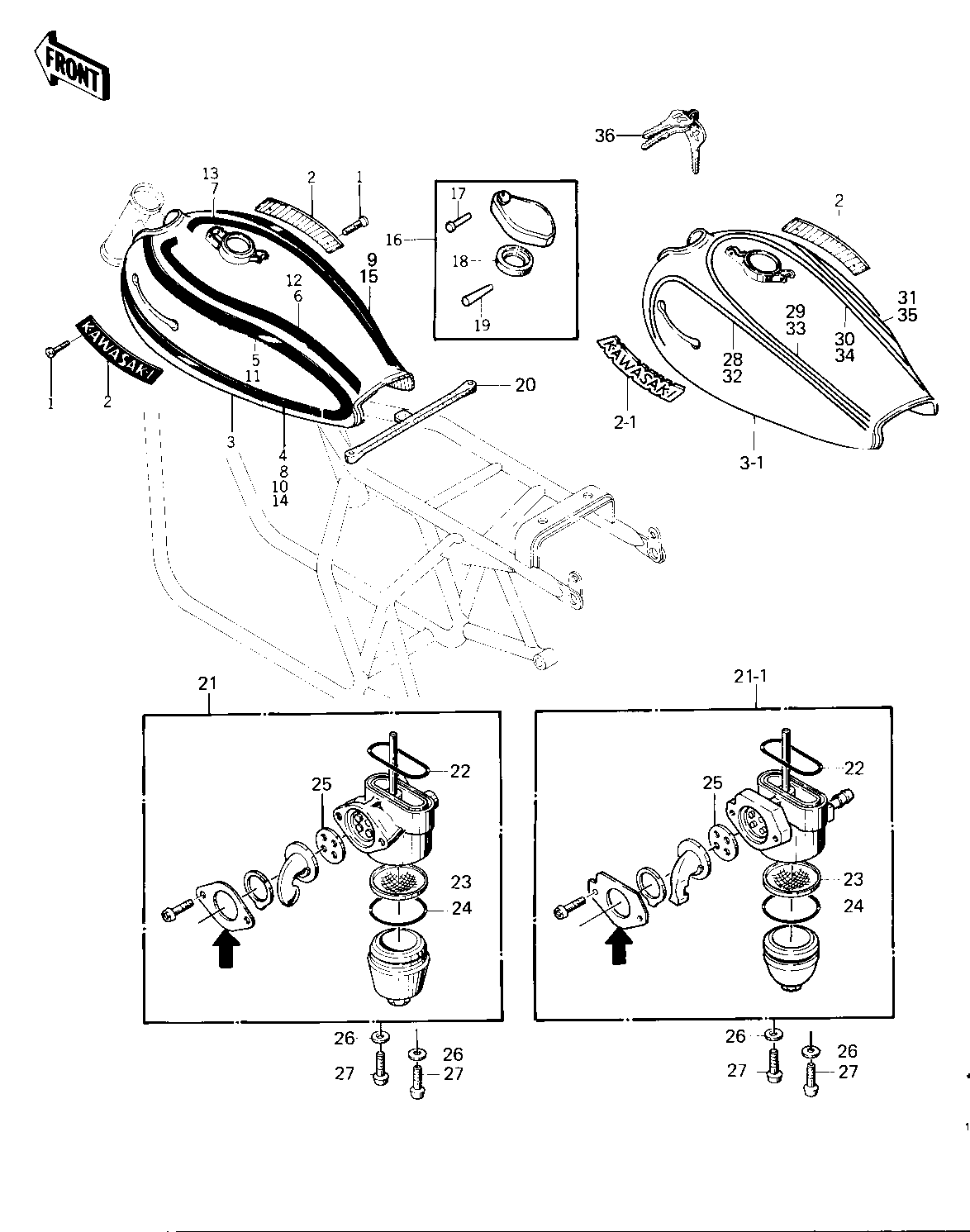

1976 KZ400-D3 - FUEL TANK ('76 -'77 KZ400 - D3/D4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 1 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK,R.H | 2 | 56014-1014 | 2 | KZ400-D3 | |
| EMBLEM,FUEL TANK,R.H | 2 | 56014-1014 | 1 | KZ400-D3 | |
| EMBLEM,FUEL TANK,L.H | 2-1 | 56014-1013 | 1 | KZ400-D4 | |
| TANK-FUEL,D.BLUE | 3 | 51001-109-3P | 1 | KZ400-D3 | |
| TANK-FUEL,D.COPPER | 3 | 51001-109-3Q | 1 | KZ400-D3 | |
| TANK-FUEL,C.O.BLUE | 3-1 | 51001-109-4X | 1 | KZ400-D4 | |
| TANK-FUEL,C.S.RED | 3-1 | 51001-109-3R | 1 | KZ400-D4 | |
| *** N.L.A.*** (Canada) | 4 | 56027-448-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 4 | 56027-448-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 5 | 56027-447-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 5 | 56027-447-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 6 | 56027-449-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 6 | 56027-449-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 7 | 56027-452-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 7 | 56027-452-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 8 | 56027-451-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 8 | 56027-451-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 9 | 56027-450-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| *** N.L.A.*** (Canada) | 9 | 56027-450-SP | 1 | USE FOR DIA BLUE COLOR - KZ400 | |
| DECAL,L.H FL TK,LOW | 10 | 56027-454-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,L.H FL TK,LOW | 10 | 56027-454-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,L.H FL TK,UPP | 11 | 56027-453-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,L.H FL TK,UPP | 11 | 56027-453-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,L.H FL TK,TOP | 12 | 56027-455-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,L.H FL TK,TOP | 12 | 56027-455-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,TOP | 13 | 56027-458-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,TOP | 13 | 56027-458-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,LOW | 14 | 56027-457-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,LOW | 14 | 56027-457-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,UPP | 15 | 56027-456-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| DECAL,R.H FL TK,UPP | 15 | 56027-456-SP | 1 | USE FOR DIA COPPER COLOR - KZ4 | |
| CAP,FUEL TANK | 16 | 51048-012 | 1 | ||
| PIN,HOOK | 17 | 92043-126 | 1 | ||
| GASKET-FUEL TANK CAP | 18 | 51059-008 | 1 | ||
| PIN,CAP HINGE | 19 | 92043-127 | 1 | ||
| BAND,FUEL TANK | 20 | 92072-042 | 1 | ||
| COCK ASSY,FUEL | 21 | 51023-051 | 1 | KZ400-D3 | |
| COCK ASSY,FUEL | 21-1 | 51023-060 | 1 | KZ400-D4 | |
| "O" RING,FL COCK JNT | 22 | 51039-007 | 1 | ||
| STRAINER,FUEL | 23 | 51038-010 | 1 | ||
| "O" RING,FL COCK CUP | 24 | 51039-009 | 1 | ||
| GASKET FUEL COCK CUP | 25 | 92065-099 | 1 | ||
| GASKET,FUEL COCK | 26 | 92065-096 | 2 | ||
| SCREW PAN HEAD 6X35 | 27 | 220B0635 | 2 | ||
| *** N.L.A.*** (Canada) | 28 | 56029-102-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| *** N.L.A.*** (Canada) | 28 | 56029-102-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| DECAL,L.H.FUEL TANK | 29 | 56029-104-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| DECAL,L.H.FUEL TANK | 29 | 56029-104-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| DECAL,R.H.FUEL TANK | 30 | 56029-105-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| DECAL,R.H.FUEL TANK | 30 | 56029-105-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| *** N.L.A.*** (Canada) | 31 | 56029-103-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| *** N.L.A.*** (Canada) | 31 | 56029-103-SP | 2 | USE FOR CANDY SUPER RED COLOR | |
| *** N.L.A.*** (Canada) | 32 | 56029-106-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| *** N.L.A.*** (Canada) | 32 | 56029-106-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| DECAL,L.H.FUEL TANK | 33 | 56029-108-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| DECAL,L.H.FUEL TANK | 33 | 56029-108-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| DECAL,R.H.FUEL TANK | 34 | 56029-109-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| DECAL,R.H.FUEL TANK | 34 | 56029-109-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| *** N.L.A.*** (Canada) | 35 | 56029-107-SP | 2 | USE FOR CANDY ORIENT BLUE COLO | |
| *** N.L.A.*** (Canada) | 35 | 56029-107-SP | 2 | USE FOR CANDY ORIENT BLUE COLO |
| SCREW-CSK-CROS | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK,R.H | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| EMBLEM,FUEL TANK,R.H | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| EMBLEM,FUEL TANK,L.H | |
| REF # | 2-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| TANK-FUEL,D.BLUE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| TANK-FUEL,D.COPPER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| TANK-FUEL,C.O.BLUE | |
| REF # | 3-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| TANK-FUEL,C.S.RED | |
| REF # | 3-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| *** N.L.A.*** (Canada) | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| *** N.L.A.*** (Canada) | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA BLUE COLOR - KZ400 |
| DECAL,L.H FL TK,LOW | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,L.H FL TK,LOW | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,L.H FL TK,UPP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,L.H FL TK,UPP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,L.H FL TK,TOP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,L.H FL TK,TOP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,TOP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,TOP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,LOW | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,LOW | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,UPP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| DECAL,R.H FL TK,UPP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR DIA COPPER COLOR - KZ4 |
| CAP,FUEL TANK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,HOOK | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL TANK CAP | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,CAP HINGE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COCK ASSY,FUEL | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| COCK ASSY,FUEL | |
| REF # | 21-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| "O" RING,FL COCK JNT | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRAINER,FUEL | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,FL COCK CUP | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET FUEL COCK CUP | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL COCK | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X35 | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| *** N.L.A.*** (Canada) | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| DECAL,L.H.FUEL TANK | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| DECAL,L.H.FUEL TANK | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| DECAL,R.H.FUEL TANK | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| DECAL,R.H.FUEL TANK | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| *** N.L.A.*** (Canada) | |
| REF # | 31 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| *** N.L.A.*** (Canada) | |
| REF # | 31 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY SUPER RED COLOR |
| *** N.L.A.*** (Canada) | |
| REF # | 32 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| *** N.L.A.*** (Canada) | |
| REF # | 32 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| DECAL,L.H.FUEL TANK | |
| REF # | 33 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| DECAL,L.H.FUEL TANK | |
| REF # | 33 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| DECAL,R.H.FUEL TANK | |
| REF # | 34 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| DECAL,R.H.FUEL TANK | |
| REF # | 34 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| *** N.L.A.*** (Canada) | |
| REF # | 35 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
| *** N.L.A.*** (Canada) | |
| REF # | 35 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | USE FOR CANDY ORIENT BLUE COLO |
