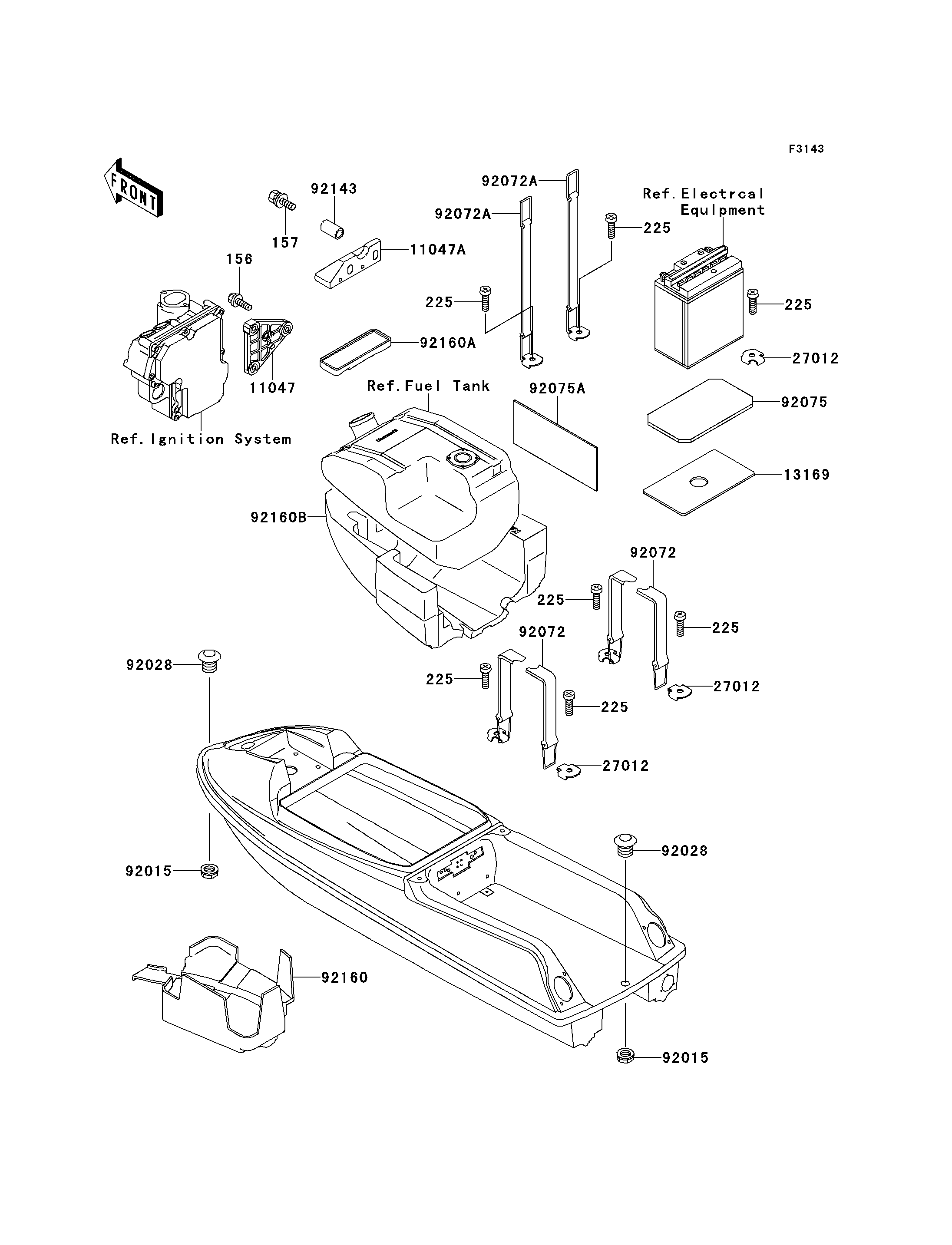

1996 750 SXi - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
156
157
225
225
225
225
225
225
225
11047
11047A
13169
27012
27012
27012
92015
92015
92028
92028
92072
92072
92072A
92072A
92075
92075A
92143
92160
92160A
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP,6X25 156 156R0625 1
BOLT-WSP,6X25 157 157R0625 2
SCREW-PAN-WSP-CROS,6X12 225 225R0612 8
BRACKET 11047 11047-3752 1
BRACKET 11047A 11047-3753 1
PLATE,BATTERY 13169 13169-3014 1
HOOK 27012 27012-3758 4
NUT,26MM 92015 92015-3840 2
BUSHING 92028 92028-3734 2
BAND,FUEL TANK 92072 92072-3763 2
BAND,BATTERY 92072A 92072-3789 2
DAMPER,BATTERY 92075 92075-509 1
DAMPER,MUFFLER 92075A 92075-522 1
COLLAR,6X8.5X14.7 92143 92143-3728 2
DAMPER,WATER MUFFLER 92160 92160-3770 1
DAMPER 92160A 92160-3777 1
DAMPER,FUEL TANK 92160B 92160-3798 1
