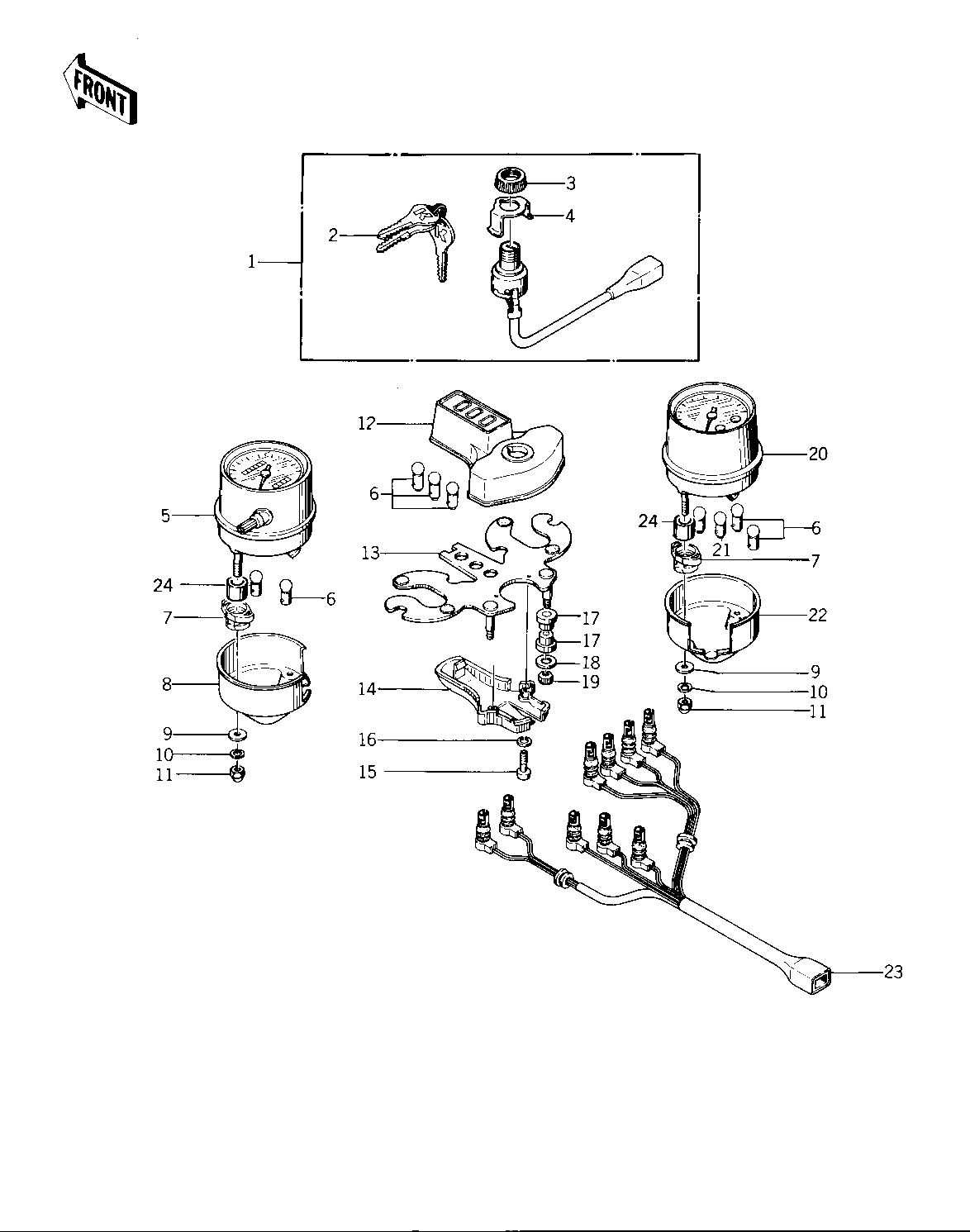

1976 KZ400-D3 - METERS/IGNITION SWITCH ('76 -'77 K

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH ASSY IGNITION 1 27005-075 1
KEY SET,#751 2 27008-064-51 1
KEY SET, #752 2 27008-064-52 1
KEY SET, #753 2 27008-064-53 1
KEY SET, #754 2 27008-064-54 1
KEY SET,#755 2 27008-064-55 1
KEY SET, #756 2 27008-064-56 1
KEY SET, #757 2 27008-064-57 1
KEY SET,#758 2 27008-064-58 1
KEY SET, #759 2 27008-064-59 1
KEY SET, #760 2 27008-064-60 1
KEY SET,#761 2 27008-064-61 1
KEY SET,#762 2 27008-064-62 1
KEY SET,#763 2 27008-064-63 1
KEY SET,#764 2 27008-064-64 1
KEY SET,#765 2 27008-064-65 1
KEY SET,#766 2 27008-064-66 1
KEY SET,#767 2 27008-064-67 1
KEY SET,#768 2 27008-064-68 1
KEY SET,#769 2 27008-064-69 1
KEY SET,#770 2 27008-064-70 1
KEY SET, #771 2 27008-064-71 1
KEY SET, #772 2 27008-064-72 1
KEY SET,#773 2 27008-064-73 1
KEY SET,#774 2 27008-064-74 1
KEY SET, #775 2 27008-064-75 1
KEY SET, #775 2 27008-064-75 1
KEY SET, #777 2 27008-064-77 1
KEY SET, #778 2 27008-064-78 1
KEY SET, #779 2 27008-064-79 1
KEY SET, #780 2 27008-064-80 1
KEY SET, #781 2 27008-064-81 1
KEY SET, #782 2 27008-064-82 1
KEY SET, #783 2 27008-064-83 1
KEY SET,#784 2 27008-064-84 1
KEY SET, #785 2 27008-064-85 1
KEY SET, #786 2 27008-064-86 1
KEY SET, #787 2 27008-064-87 1
KEY SET, #788 2 27008-064-88 1
KEY SET, #789 2 27008-064-89 1
KEY SET, #790 2 27008-064-90 1
KEY SET, #791 2 27008-064-91 1
KEY SET, #792 2 27008-064-92 1
KEY SET, #793 2 27008-064-93 1
KEY SET, #794 2 27008-064-94 1
KEY SET,#795 2 27008-064-95 1
KEY,BLANK 2 27008-1013 AR
NUT,IGNITION SW LOCK 3 27007-004 1
HOLDER,IGNITION SW 4 27019-004 1
SPEEDOMETER ASSY,MPH 5 25005-126 1
SPEEDO ASSY,KPH (Canada) 5 25005-127 1 CANADA
BULB 12V 3W 6 92069-018 8
DAMPER RUBBER 7 92075-268 4
COVER SPEEDOMETER 8 25012-020 1 KZ400-D3
COVER,SPEEDOMETER 8 25012-026 1 KZ400-D4
WASHER PLAIN 5MM 9 411B0500 4
WASHER SPRING 5MM 10 461F0500 4
NUT-CAP,5MM 11 322N0500 4
COVER INDICATOR LIGHT 12 25023-013 1
BRACKET METER 13 25008-037 1
COVER METER BRACKET 14 25024-005 1
SCREW-PAN-CRSOSS,4X12 15 220B0412 2
WASHER SPRING 4MM 16 461F0400 2
DAMPER RUBBER 17 92075-257 4
WASHER,PLAIN,6MM 18 92022-284 2
NUT 6MM 19 311B0600 2
TACHOMETER ASSY 20 25016-027 1
BULB 12V 1.5W 21 92069-017 1
COVER TACHOMETER 22 25012-019 1 KZ400-D3
COVER,TACHOMETER 22 25012-027 1 KZ400-D4
SOCKET SPEEDO&TACHO 23 25011-047 1
COLLAR 24 92027-244 4
