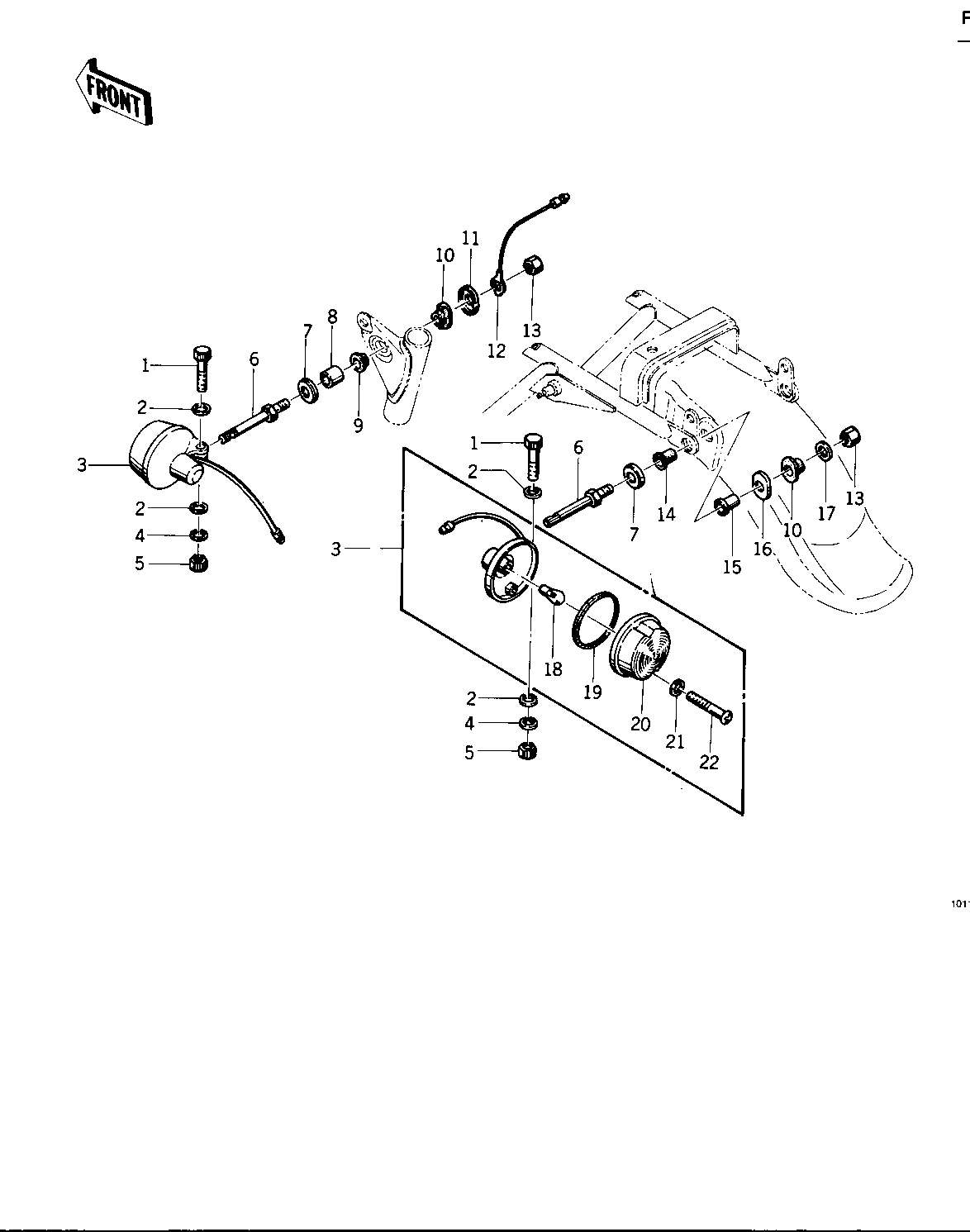

1976 KZ400-D3 - TURN SIGNALS ('76 -'77 KZ400 - D3/D4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT HEX HEAD 6X36 1 110N0636 4
WASHER,PLAIN,6MM 2 410D0600 8
LAMP-TURN SIGNAL 3 23040-029 4
WASHER SPRING 6MM 4 461F0600 4
NUT 6MM 5 312B0600 4
BKT TURN SIGNL LIGHT 6 23051-049 4
CAP,SIGNAL LIGHT STAY 7 92102-015 4
COLLAR,FR SIG LIGHT 8 92027-223 2
DAMPER RUBBER,SIG LM 9 92075-158 2 KZ400-D3
DAMPER RUBBER,SIG LM 9 92075-158 2 KZ400-D4
DAMPER RUBBER,SIGNAL 10 92075-238 4
CAP,FR SIG LIGHT STAY 11 92102-014 2
WIRE TURN SIGNAL LEAD 12 26011-081 2
NUT-HEX-FINE,12MM 13 315B1200 4
DAMPER RUBBER,SIGNAL 14 92075-241 2
COLLAR,RR SIG LIGHT 15 92027-225 2
CAP,RR SIG LIGHT STAY 16 92102-013 2
WASHER PLAIN 12MM 17 411B1200 2
BULB 12V 32CP 18 92069-055 4
GASKET,TURN SIG LAMP 19 23050-002 4
LENS-SIGNAL LAMP 20 23048-1024 4
LENS-SIGNAL LAMP 20 23048-1024 AL
WASHER-PLAIN,4MM 21 23058-002 8
SCREW-PAN HEAD,4X35 22 220E0435A 8
