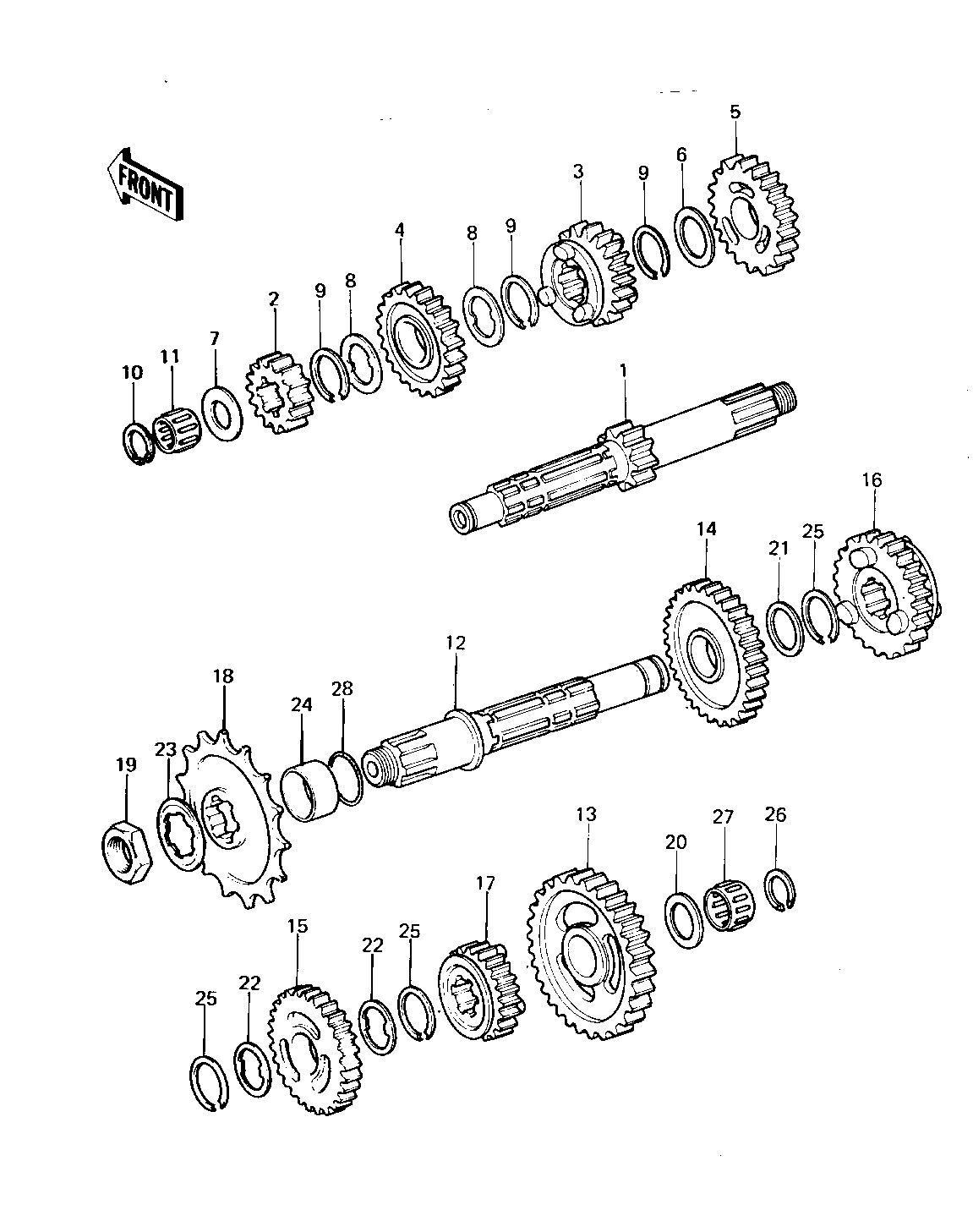

1981 KDX420 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE,1ST 1 13127-1024 1
2ND GEAR,DRIVE,16T 2 13129-1173 1
3RD GEAR,DRIVE,20T 3 13129-1174 1
4TH GEAR,DRIVE,21T 4 13129-1175 1
TOP GEAR,DRIVE,24T 5 13129-1128 1
WASHER-PLAIN 6 92022-198 1
WASHER,PLAIN 7 92022-281 1
WASHER-LOCK 8 92024-039 2
CIRCLIP,25MM 9 92033-025 3
CIRCLIP,16MM 10 92033-032 1
BEARING-NEEDLE 11 92046-1184 1
SHAFT,OUTPUT 12 13128-1023 1
LOW GEAR,OUTPUT,40T 13 13129-1176 1
2ND GEAR,OUTPUT,28T 14 13129-1177 1
3RD GEAR,OUTPUT,27T 15 13129-1178 1
4TH GEAR,OUTPUT,22T 16 13129-1179 1
TOP GEAR,OUTPUT,19T 17 13129-1133 1
SPROCKET,ENGINE,15T 18 13144-1026 1
ENGINE SPROCKET 13T 18 13144-055 1
ENGINE SPROCKET,14T 18 13144-1006 1
SPROCKET,ENGINE,16T 18 13144-1028 1
NUT BEARING ADJUST 19 42045-008 1
WASHER THRUST 20 92022-112 1
WASHER-PLAIN 25MM 21 92022-159 1
WASHER-LOCK 22 92024-038 2
WASHER,LOCK 23 92024-065 1
COLLAR,25X32X10.5 24 92143-1370 1
CIRCLIP 25 92033-026 3
CIRCLIP,18MM 26 92033-029 1
BEARING-NEEDLE,KT2026 27 92046-1170 1
"O" RING 28 92055-035 1
