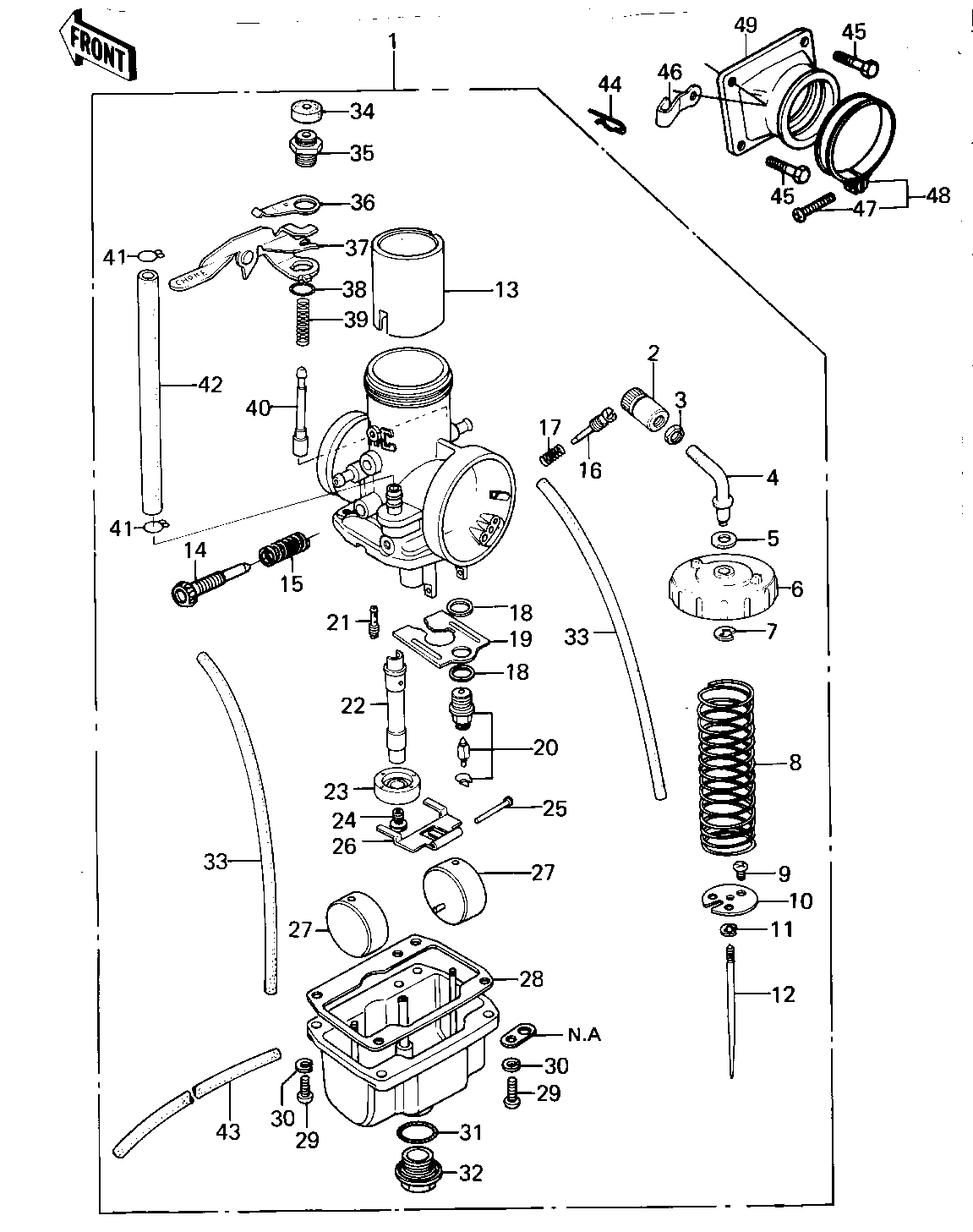

1981 KDX420 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1389 1 VM38SS
ADJUSTER,CABLE 2 16002-1006 1
NUT CABLE ADJUST LOCK 3 16003-004 1
GUIDE,CABLE 4 13070-1014 1
GASKET,CABLE GUIDE 5 11009-1191 1
TOP,MIXING CHAMBER 6 16004-1010 1
CIRCLIP,CABLE GUIDE 7 16008-011 1
SPRING-THROTTLE VALVE 8 16006-016 1
SCREW,4X5 9 92009-1037 1
SEAT,THROTTLE VALVE 10 16007-1007 1
CIRCLIP 11 16008-010 1
JET NEEDLE,J8-6E02 12 16009-1082 1
VALVE,THROTTLE CA,2.5 13 16025-1056 1
SCREW,THROTTLE STOP 14 16021-1034 1
SPRING,THRTL STP SCRW 15 92081-1200 1
SCREW 16 16014-006 1
SPRING-THR STOP SCREW 17 16022-007 1
GASKET,FLOAT VALVE 18 11009-1076 2
BAFFLE-CARB 19 16038-019 2
FLOAT VALVE ASSY 20 16030-020 1
PILOT JET,#50 21 92064-1005 1
NEEDLE JET,R-4 22 16017-1083 1
MAIN JET,#165R 24 92063-1020 1
PIN,FLOAT 25 16032-008 1
ARM,FLOAT 26 16055-009 1
FLOAT 27 16031-029 2
GASKET,FLOAT CHAMBER 28 16019-028 1
UNAVAILABLE IN PRICE BOOK 29 214B0516A 4
WASHER SPRING 5MM 30 461F0500 4
GASKET-COVER 31 16038-009 1
COVER,MAIN JET 32 16049-006 1
HOSE,AIR VENT 33 92059-1185 2
CAP,STARTER PLUNGER 34 16039-015 1
CAP,STARTER PLUNGER 35 16012-019 1
SPRING PLATE,STARTER 36 13169-1052 1
LEVER,STARTER PLUNGER 37 13168-1048 1
"O" RING,9MM 38 670B1509 1
SPRING,STRTR PLUNGER 39 92081-1181 1
PLUNGER ASSY,STARTER 40 16016-1008 1
CLAMP,CARB CONECT HOS 41 92037-056 2
HOSE,FUEL,6.5OX11.5O 42 92059-1026 1
TUBE,3.5X6.5X290,BRTH 43 92059-1017 1
CIRCLIP 44 92036-018 1
BOLT,FLANGED,6X20 45 130G0620 4
CLAMP,CARBURETOR HLDR 46 92037-116 1
SCREW-PAN-CROS 47 220B0535 1
CLAMP CABLE 48 92037-016 1
HOLDER,CARBURETOR 49 16065-1005 1
