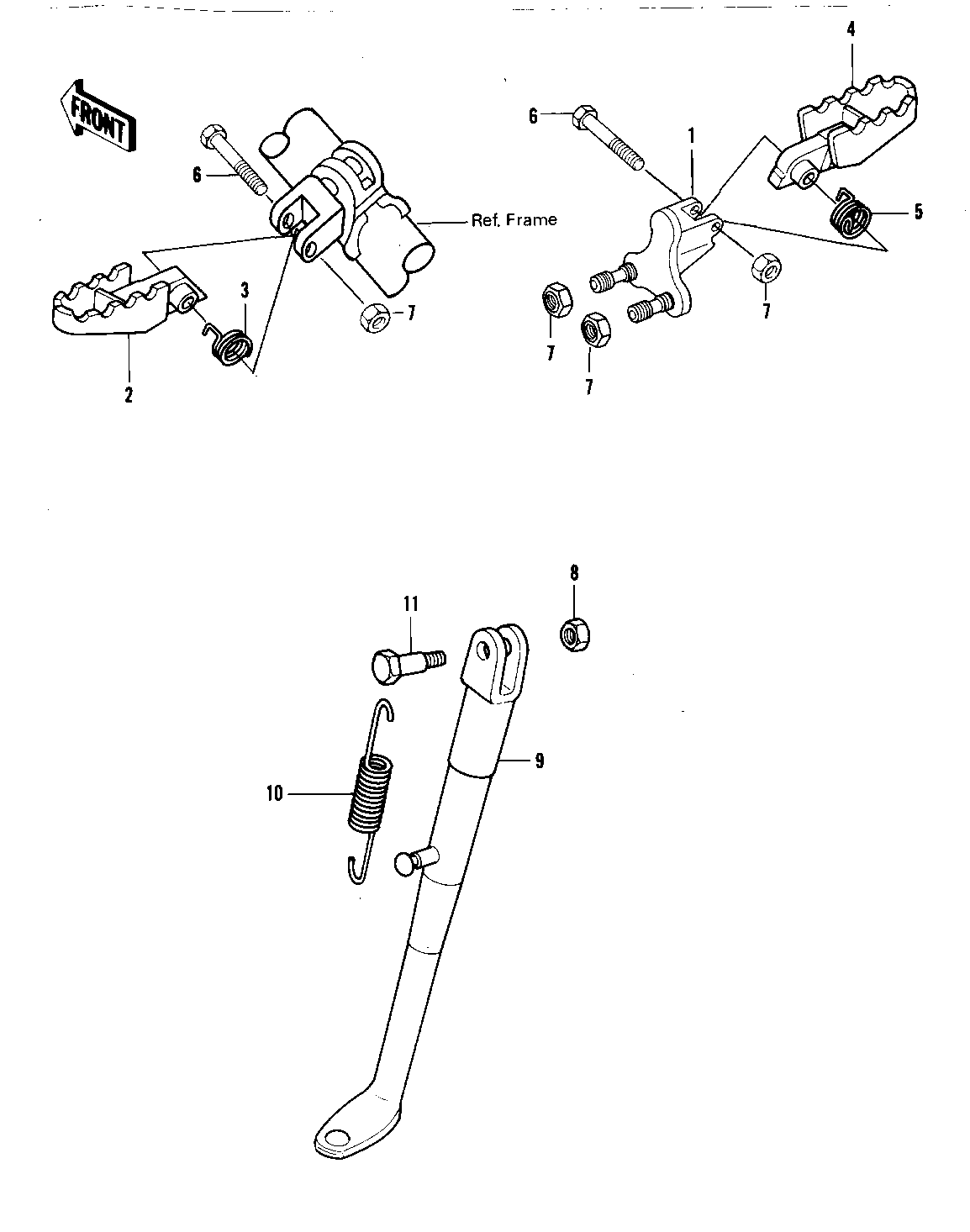

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,R.H. 1 34003-4005 1
STEP,FOOTREST,L.H 2 34028-1026 1
SPRING,L.H,FOOTREST 3 92081-1254 1
STEP,FOOTREST,R.H 4 34028-1027 1
SPRING,R.H,FOOTREST 5 92081-1255 1
BOLT,HEX HEAD 10X40 6 92001-1028 2
NUT,LOCK,10MM 7 92019-021 4
NUT 10MM 8 315B1000 1
STAND-SIDE 9 34024-1041 1
SPRING-SIDE STAND 10 34025-004 1
BOLT, SIDE STAND FIT 11 92003-157 1
