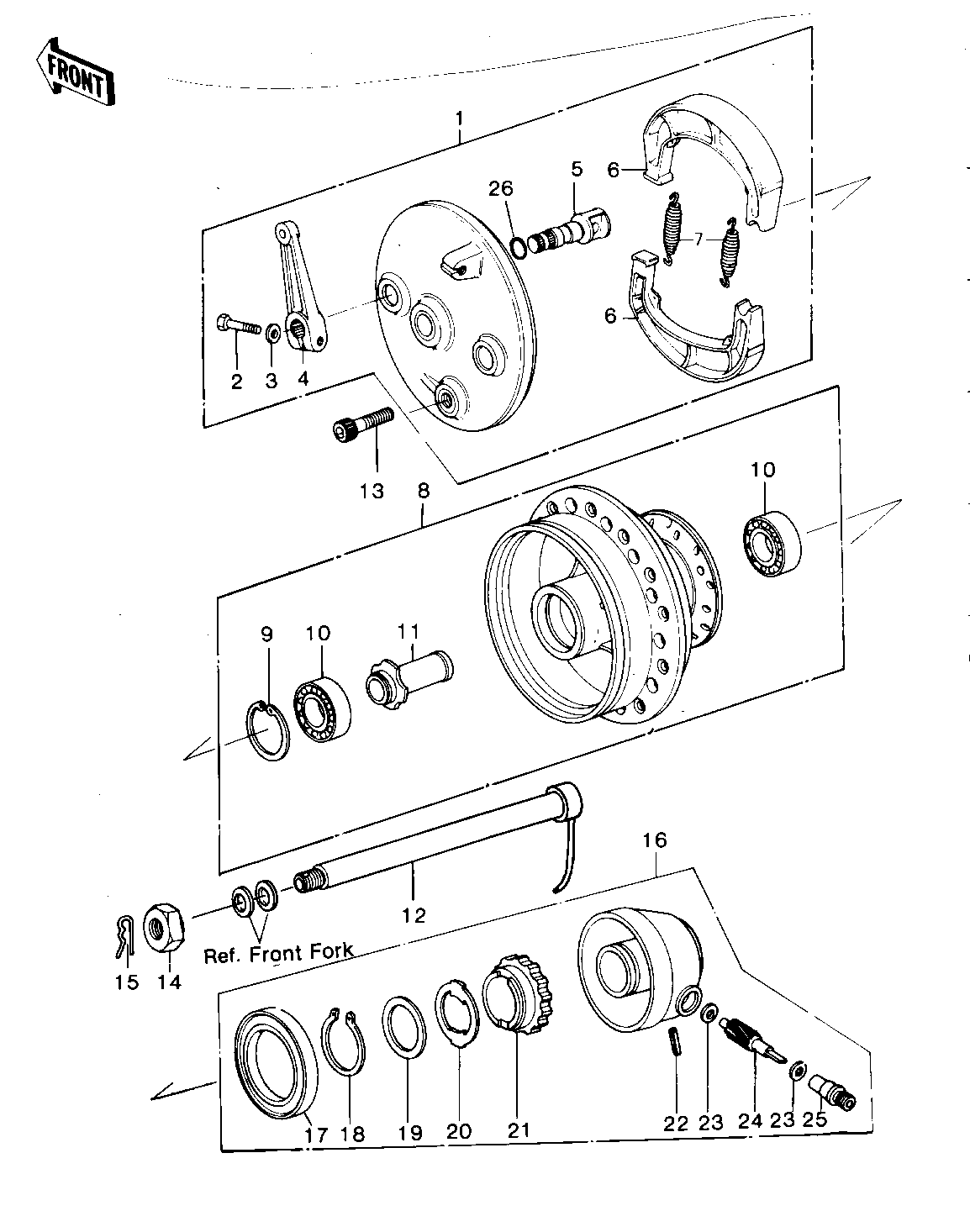

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASSY,FR BRAKE 1 41035-1072 1
BOLT-UPSET 2 112G0622 1
WASHER PLAIN 6MM 3 410B0600 1
LEVER,FRONT BRAKE CAM 4 41053-1003 1
CAM SHAFT,BRAKE 5 41050-1002 1
SHOE-BRAKE 6 41048-1068 2
SPRING-BRAKE SHOE 7 42020-004 2
DRUM-ASSY,FR BRK 8 41034-4001 1
CIRCLIP,42MM 9 92033-1041 1
BEARING,FRONT DRUM 10 92045-033 2
COLLAR,FRONT BRAKE 11 92027-1034 1
AXLE,FRONT 12 41068-4001 1
BOLT,SOCKET,10X40 13 92001-4002 1
NUT,14MM 14 42045-020 1
PIN,COTTER 15 550D3230 1
GEAR BOX ASSY 16 41078-011 1
OIL SEAL,#50659 17 654A506509 1
CIRCLIP 24MM 18 480J2400 1
WASHER,THRUST 19 41065-005 1
RECEIVER,SPEEDOMETER 20 41064-015 1
GEAR,SPEEDOMETER 21 41059-027 1 25T
PIN,SPRING 22 41082-001 1
WASHER THRST SPD PINI 23 41063-001 2
PINION,SPEEDOMETER 24 41060-015 1 8T
BUSH,SPEEDMETER CABLE 25 41062-005 1
"O" RING,15MM 26 670B2015 1
