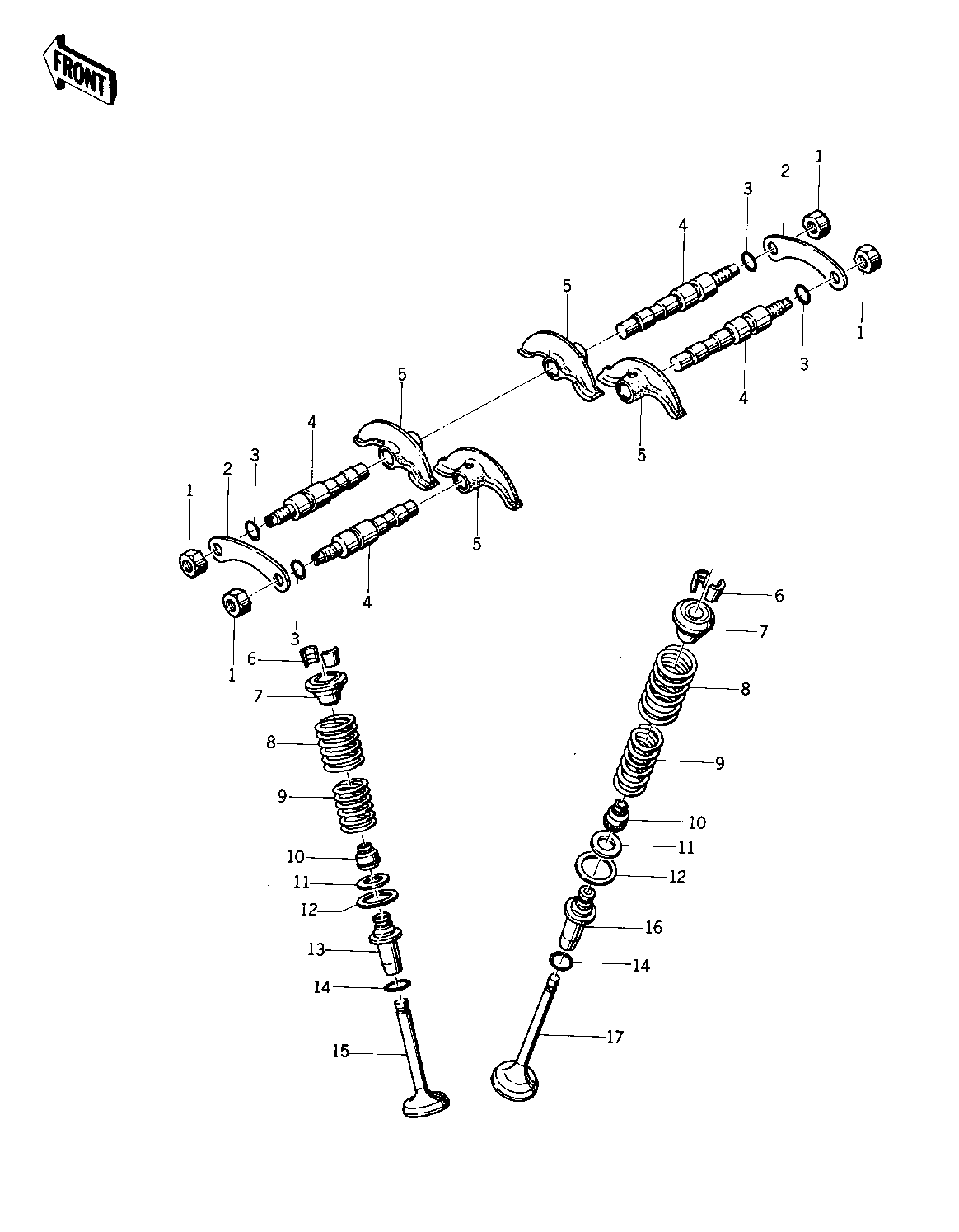

1975 Special - ROCKER ARMS/VALVES ('75 S)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT,8M/M | 1 | 314G0800 | 4 | ||
WASHER,LOCK | 2 | 92088-022 | 2 | ||
"O" RING | 3 | 92055-098 | 4 | ||
SHAFT,ROCKER | 4 | 12020-003 | 4 | ||
ARM,ROCKER | 5 | 12016-011 | 4 | ||
COLLAR,VALUE SPRING | 6 | 12011-002 | 8 | -E/NO. 018691 | |
SPLIT KEEPER | 6 | 12011-004 | 8 | E/NO. 018692 - | |
RETAINER,VALVE SPRING | 7 | 12009-006 | 4 | ||
SPRING,OUTER VALVE | 8 | 12007-013 | 4 | ||
SPRING,INNER VALVE | 9 | 12007-014 | 4 | ||
OIL SEAL,RV37129.5 | 10 | 92049-016 | 4 | ||
SEAT,VLV INNER SPRING | 11 | 12010-006 | 4 | O.D.=23 | |
SEAT,VLV OUTER SPRING | 12 | 12010-005 | 4 | O.D.=31 | |
GUIDE,EXHAUST VALVE | 13 | 49002-1010 | 2 | - E/NO. 018691 | |
GUIDE,EXHAUST VALVE | 13 | 49002-1010 | 2 | E/NO. 018692 - | |
GUIDE,EXHAUST VALVE | 13 | 49002-1010 | 2 | ||
"O" RING,VALVE GUIDE | 14 | 92055-065 | 4 | ||
VALVE,EXHAUST | 15 | 12005-006 | 2 | - E/NO. 018691 | |
VALVE,EXHAUST | 15 | 12005-012 | 2 | E/NO. 018692 - | |
GUIDE,INLET VALVE | 16 | 12013-003 | 2 | - E/NO. 018691 | |
GUIDE,INLET VALVE | 16 | 12013-003 | 2 | E/NO. 018692 - | |
VALVE,INLET | 17 | 12004-013 | 2 | - E/NO. 018691 | |
VALVE,INLET | 17 | 12004-019 | 2 | E/NO. 018692 - |
NUT,8M/M | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,LOCK | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHAFT,ROCKER | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ARM,ROCKER | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,VALUE SPRING | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS | -E/NO. 018691 |
SPLIT KEEPER | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS | E/NO. 018692 - |
RETAINER,VALVE SPRING | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,OUTER VALVE | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,INNER VALVE | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
OIL SEAL,RV37129.5 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAT,VLV INNER SPRING | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | O.D.=23 |
SEAT,VLV OUTER SPRING | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | O.D.=31 |
GUIDE,EXHAUST VALVE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | - E/NO. 018691 |
GUIDE,EXHAUST VALVE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | E/NO. 018692 - |
GUIDE,EXHAUST VALVE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"O" RING,VALVE GUIDE | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE,EXHAUST | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | - E/NO. 018691 |
VALVE,EXHAUST | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | E/NO. 018692 - |
GUIDE,INLET VALVE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | - E/NO. 018691 |
GUIDE,INLET VALVE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | E/NO. 018692 - |
VALVE,INLET | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | - E/NO. 018691 |
VALVE,INLET | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | E/NO. 018692 - |
