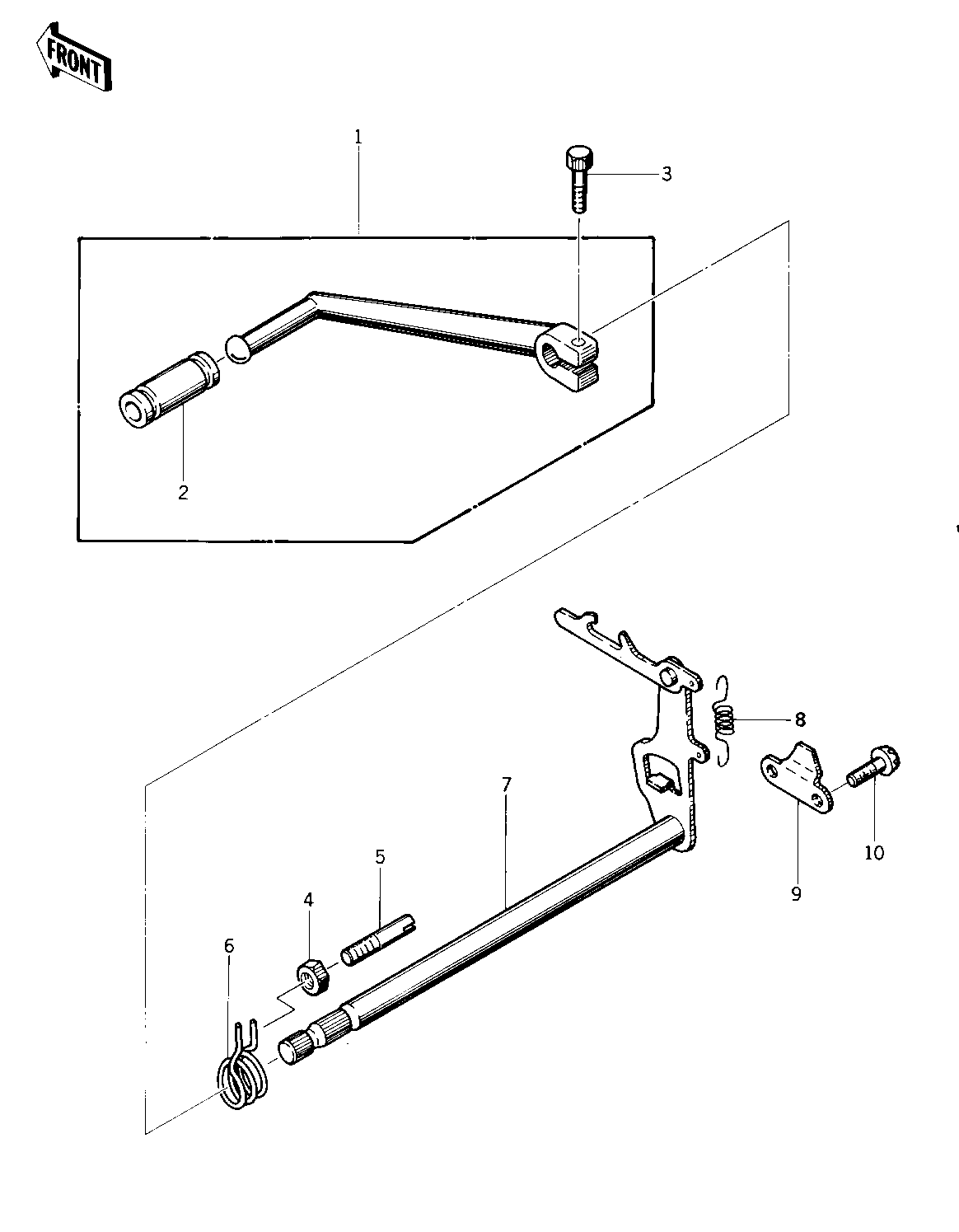

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL ASSY,GEAR SHIFT 1 13242-017 1
PEDAL ASSY,GEAR SHIFT 1 13242-017 1
RUBBER CHANGE PEDAL 2 13157-004 1
BOLT-UPSET,6X20 3 112G0620 1
NUT 8MM 4 312B0800 1
PIN CHANGE PEDAL SPRG 5 92043-057 1
PIN CHANGE PEDAL SPRG 5 92043-057 1
SPRING,CHG PEDL RTN 6 92083-021 1
LEVER ASY,GEAR SHIFT 7 13161-034 1
SPRING,CHANGE LEVER 8 92144-1720 1
PLATE,GEAR SHIFT LEV 9 13169-011 1
SCREW PAN HEAD 6X16 10 220B0616 2
