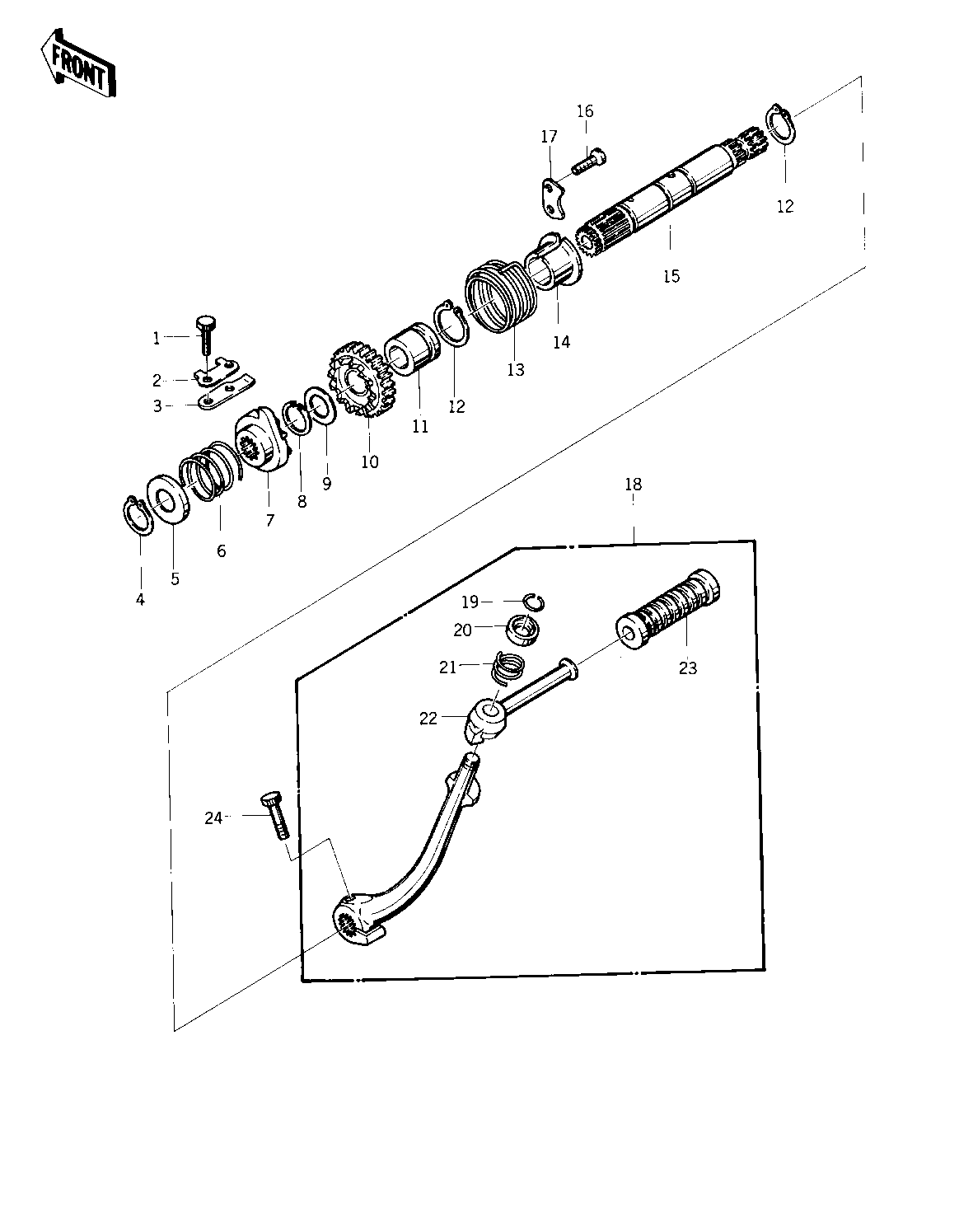

1975 Special - KICKSTARTER MECHANISM ('75 S)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET 6X14 | 1 | 112B0614 | 2 | ||
WASHER-LOCK | 2 | 92024-036 | 1 | ||
STOPPER,KICKSTARTER | 3 | 13072-012 | 1 | ||
CIRCLIP,19MM | 4 | 480J1900 | 1 | ||
CAP,KICKSTARTER | 5 | 92102-008 | 1 | ||
SPRING RATCHET | 6 | 92081-104 | 1 | ||
RATCHET,KICK SHAFT | 7 | 13078-011 | 1 | ||
RATCHET,KICK SHAFT | 7 | 13078-011 | 1 | ||
CIRCLIP,18MM | 8 | 92033-029 | 1 | ||
WASHER THRUST | 9 | 92022-112 | 1 | ||
GEAR,KICKSTARTER | 10 | 13068-031 | 1 | ||
BUSHING,KICK SHAFT | 11 | 92028-175 | 1 | ||
CIRCLIP, 20MM | 12 | 480J2000 | 2 | ||
SPRING,KICK RETURN | 13 | 92082-006 | 1 | ||
GUIDE,KICK SPRING | 14 | 13070-009 | 1 | ||
SHAFT,KICKSTARTER | 15 | 13066-036 | 1 | ||
SCREW CNTSNK HD 6X16 | 16 | 221B0616 | 2 | ||
PLATE-DRUM LEV POSTON | 17 | 13169-007 | 1 | ||
PEDAL ASY,KICKSTARTER | 18 | 13058-053 | 1 | ||
CIRCLIP,KICK | 19 | 92036-025 | 1 | ||
WASHER,KICKPEDAL | 20 | 92022-294 | 1 | ||
SPRING,KICK PEDAL | 21 | 92081-136 | 1 | ||
PEDAL,KICKSTARTER | 22 | 13060-017 | 1 | ||
RUBBER KICK PEDAL | 23 | 13063-004 | 1 | ||
BOLT HEX HEAD 8X28 | 24 | 114G0828 | 1 |
