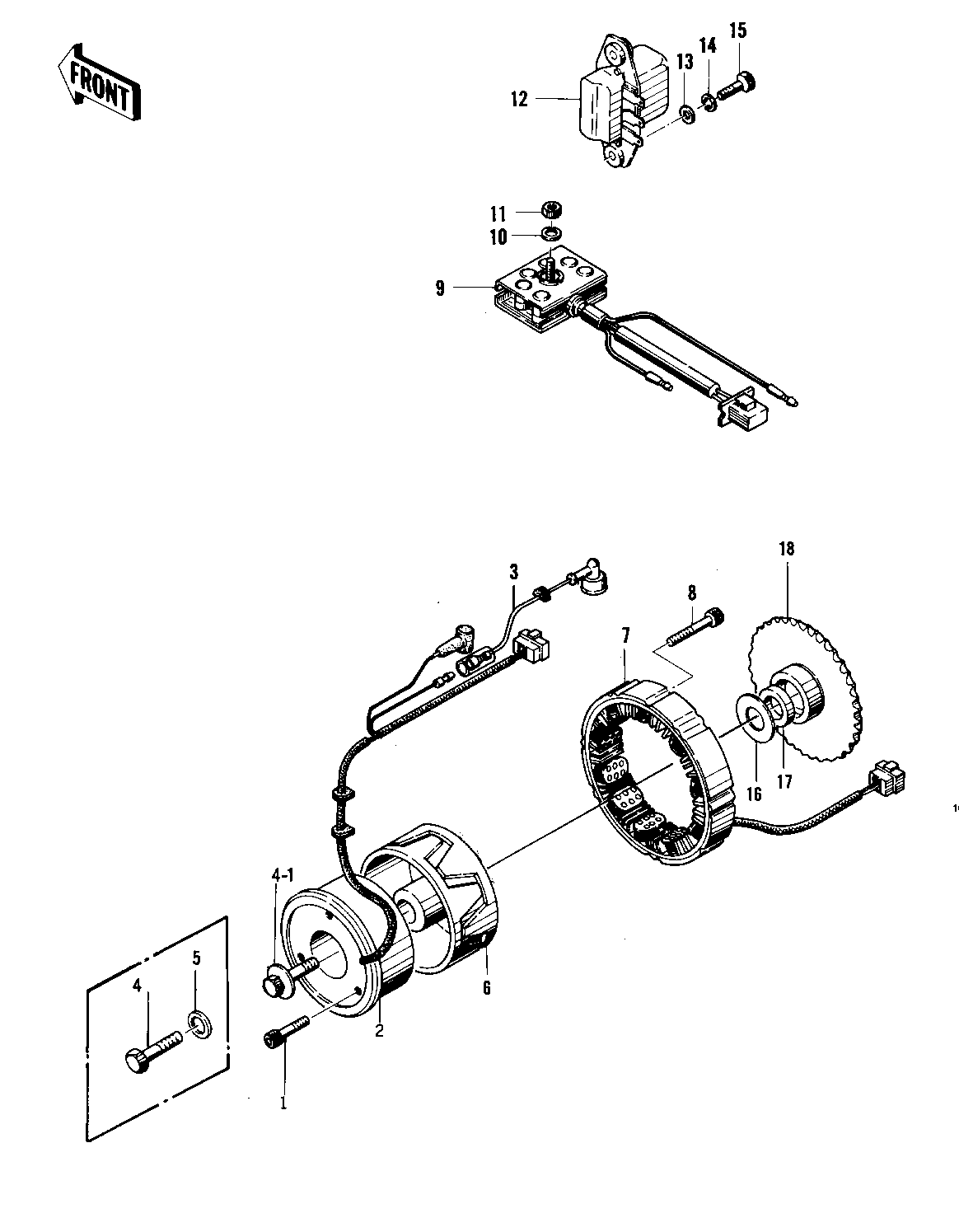

1975 Special - GENERATOR/REGULATOR/RECTIFIER ('75 S)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,ALLEN,6X18 | 1 | 120P0618 | 3 | ||
COIL FIELD | 2 | 21077-002 | 1 | ||
WIRE DYNAMO LEAD | 3 | 26011-087 | 1 | ||
BOLT,10X40 | 4 | 92002-1303 | 1 | ORIG ON KZ400S | |
BOLT,10X40 | 4-1 | 92002-1303 | AL | FROM KZ400-S2 | |
WASHER-PLN,11X36X4 | 5 | 92022-307 | 1 | USE W/92001-157 | |
ROTOR | 6 | 21007-030 | 1 | ||
STATOR ASSY | 7 | 21076-019 | 1 | ||
BOLT,ALLEN,6X32 | 8 | 120Q0632 | 3 | ||
RECTIFIER | 9 | 21061-030 | 1 | ||
RECTIFIER | 9 | 21061-030 | 1 | ||
WASHER SPRING 6MM | 10 | 461F0600 | 1 | ||
NUT 6MM | 11 | 311B0600 | 1 | ||
REGULATOR | 12 | 21066-018 | 1 | ||
WASHER 6.5X20X1.6T | 13 | 92022-125 | 2 | ||
WASHER SPRING 6MM | 14 | 461F0600 | 2 | ||
BOLT-UPSET,6X20 | 15 | 112G0620 | 2 | ||
WASHER,THRUST | 16 | 92026-100 | 1 | ||
OIL SEAL | 17 | 92050-066 | 1 | ||
GEAR STARTER CLUTCH | 18 | 21170-001 | 1 |
