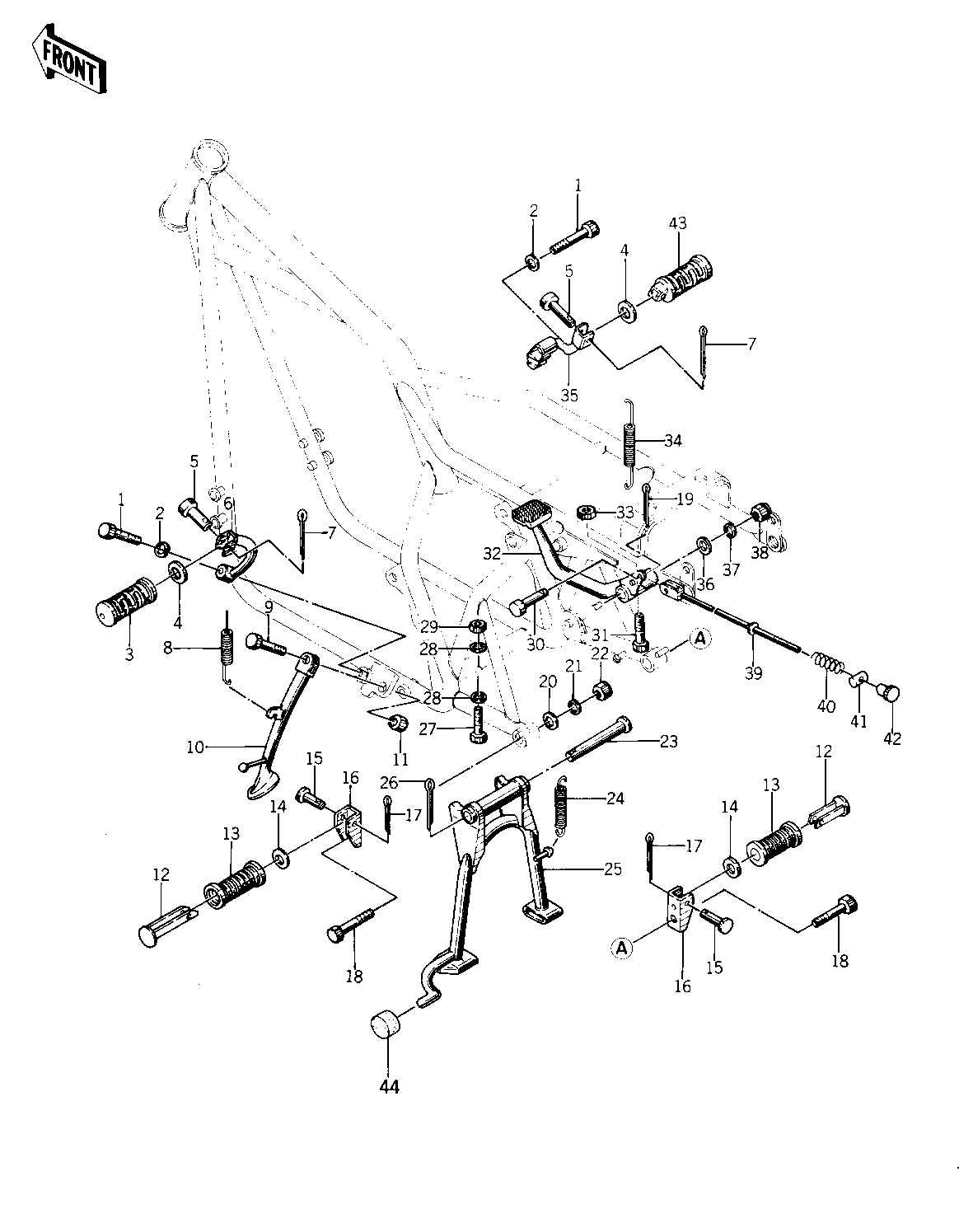

1975 Special - FOOTRESTS/STANDS/BRAKE PEDAL ('75 S)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-HEX HEAD,12X36 1 113B1236A 2
WASHER SPRING 12MM 2 461F1200 2
BAR-FOOTREST,L.H 3 34028-011 1
WASHER,PLAIN 4 92022-250 2
PIN-FOOTREST BAR FIT 5 92043-080 2
BRACKET,FOOTREST,L.H 6 34003-053 1
PIN COTTER 2.5X16 7 550D2516 2
SPRING,SIDE STAND 8 34025-007 1
BOLT, SIDE STAND FIT 9 92003-157 1
STAND-SIDE 10 34024-048 1
NUT 10MM 11 315B1000 1
BAR-RR FOOTREST (OPT) 12 34028-009 2
BAR-RR FOOTREST (OPT) 12 34028-009 2
RUBBER,REAR FOOTREST 13 92076-024 2
WASHER-PLAIN (OPT) 14 92022-199 2
PIN 15 92043-1464 2
BRACKET,STEP 16 32054-1021 2
PIN,COTTER,2.0X12 17 550D2012 2
BOLT,HEX HEAD,10X50 18 92001-1254 2
PIN COTTER 2.5X16 19 550D2516 1
WASHER PLAIN 10MM 20 410B1000 2
WASHER SPRING 10MM 21 461F1000 2
NUT,10MM 22 314B1000 2
SHAFT,MAIN STAND 23 34019-015 1
SPRING,MAIN STAND 24 34023-016 1
STAND-MAIN 25 34011-053 1
PIN COTTER 3.0X30 26 550D3030 1
BOLT 6X35 27 110R0635 2
WASHER PLAIN 6MM 28 410B0600 4
NUT 29 92019-008 2
PIN,BRAKE ROD FITTING 30 92043-090 1
BOLT-UPSET 31 112G0625 1
PEDAL,BRAKE 32 43001-064 1
NUT 6MM 33 311B0600 1
SPRING,BRAKE PEDAL 34 43005-029 1
BRACKET,FOOTREST,R.H 35 34003-054 1
WASHER,8.5X20X1.6 36 92022-1561 1
WASHER SPRING 8MM 37 461F0800 1
NUT,CAP AND LOCK,8MM 38 92019-013 1
ROD,BRAKE 39 43011-026 1
SPRING,BRAKE ROD 40 43012-001 1
PIN-BRAKE ROD 41 92043-065 1
NUT-BRAKE ROD ADJUST 42 92015-042 1
BAR-FOOTREST,R.H 43 34028-012 1
DAMPER RUBB-MAIN STND 44 92075-115 1
