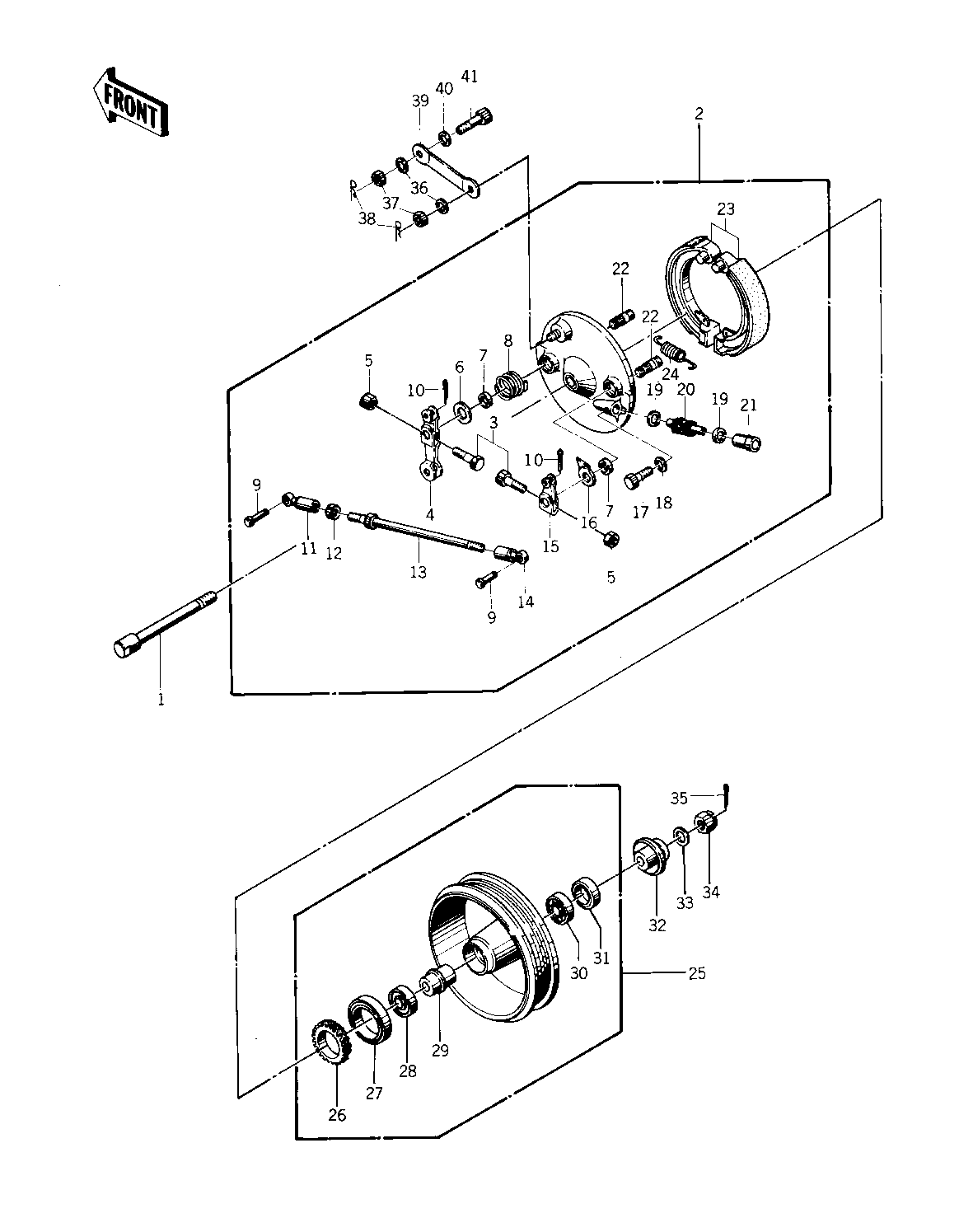

1975 Special - FRONT HUB/BRAKE ('75 S)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,FRONT | 1 | 41068-045 | 1 | ||
PANEL-ASY,FR BRK BUFF | 2 | 41035-062-80 | 1 | BUFF FINISH | |
.BOLT-UPSET | 3 | 112G0630 | 2 | ||
.LEVER FRT BRK CAM 1ST | 4 | 41053-011 | 1 | ||
.NUT,6MM | 5 | 41072-007 | 2 | ||
.WASHER,BRAKE CAMSHAFT | 6 | 41052-005 | 1 | ||
.DUST SHIELD BRAKE CAM | 7 | 41051-001 | 2 | ||
.SPRING FR BRK CAM LEV | 8 | 41056-001 | 1 | ||
.PIN BRAKE CONNECT ROD | 9 | 41055-003 | 2 | ||
.PIN COTTER 1.2X10 | 10 | 550D1210 | 2 | ||
.ROD END,BRK CONNECT | 11 | 41058-008 | 1 | ||
.NUT,5MM | 12 | 311B0500 | 1 | ||
.ROD BRK CAM LEV CONCT | 13 | 41057-004 | 1 | ||
.ROD END,BRK CONNECT | 14 | 41058-009 | 1 | ||
.LEVER FRT BRK CAM 2ND | 15 | 41053-012 | 1 | ||
.INDICATOR,FR BK SHOE | 16 | 41085-015 | 1 | ||
.BOLT-UPSET | 17 | 112G0618 | 1 | ||
.WASHER PLAIN 6MM | 18 | 411B0600 | 1 | ||
.WASHER PINION THRUST | 19 | 41063-003 | 2 | ||
.PINION SPEEDOMETER | 20 | 41060-007 | 1 | ||
.BUSH SPEDMETER PINION | 21 | 41062-003 | 1 | ||
.CAM SHAFT,FRONT BRAKE | 22 | 41050-016 | 2 | ||
.SHOE,BRAKE | 23 | 41048-019 | 2 | ||
.SPRING FRNT BRK SHOE | 24 | 41049-004 | 2 | ||
DRUM-ASSY,FR BRK | 25 | 41034-007 | 1 | ||
.GEAR SPEEDOMETER | 26 | 41059-009 | 1 | ||
.OIL SEAL WOC55687 | 27 | 92050-017 | 1 | ||
.BEARING BALL #6302Z | 28 | 601B6302Z | 1 | ||
.SPACER F AXLE BEARING | 29 | 41039-011 | 1 | ||
.BEARING BALL #6302 | 30 | 601B6302 | 1 | ||
.OIL SEAL WTC25428 | 31 | 92052-005 | 1 | ||
COLLAR,FRONT AXLE | 32 | 41069-029 | 1 | ||
WASHER PLAIN 14MM | 33 | 410B1400 | 1 | ||
NUT,14MM | 34 | 42045-020 | 1 | ||
PIN COTTER 3.0X25 | 35 | 550D3025 | 1 | ||
WASHER SPRING 10MM | 36 | 461F1000 | 2 | ||
NUT,10MM | 37 | 314B1000 | 2 | ||
NUT,10MM | 37 | 314B1000 | 2 | ||
PIN,SNAP | 38 | 554A0800 | 2 | ||
PIN,SNAP | 38 | 554A0800 | 2 | ||
TORQUE LINK,FR BRAKE | 39 | 43007-042 | 1 | ||
WASHER PLAIN 10MM | 40 | 410B1000 | 1 | ||
BOLT,HEX HEAD,10X57 | 41 | 92003-169 | 1 |
