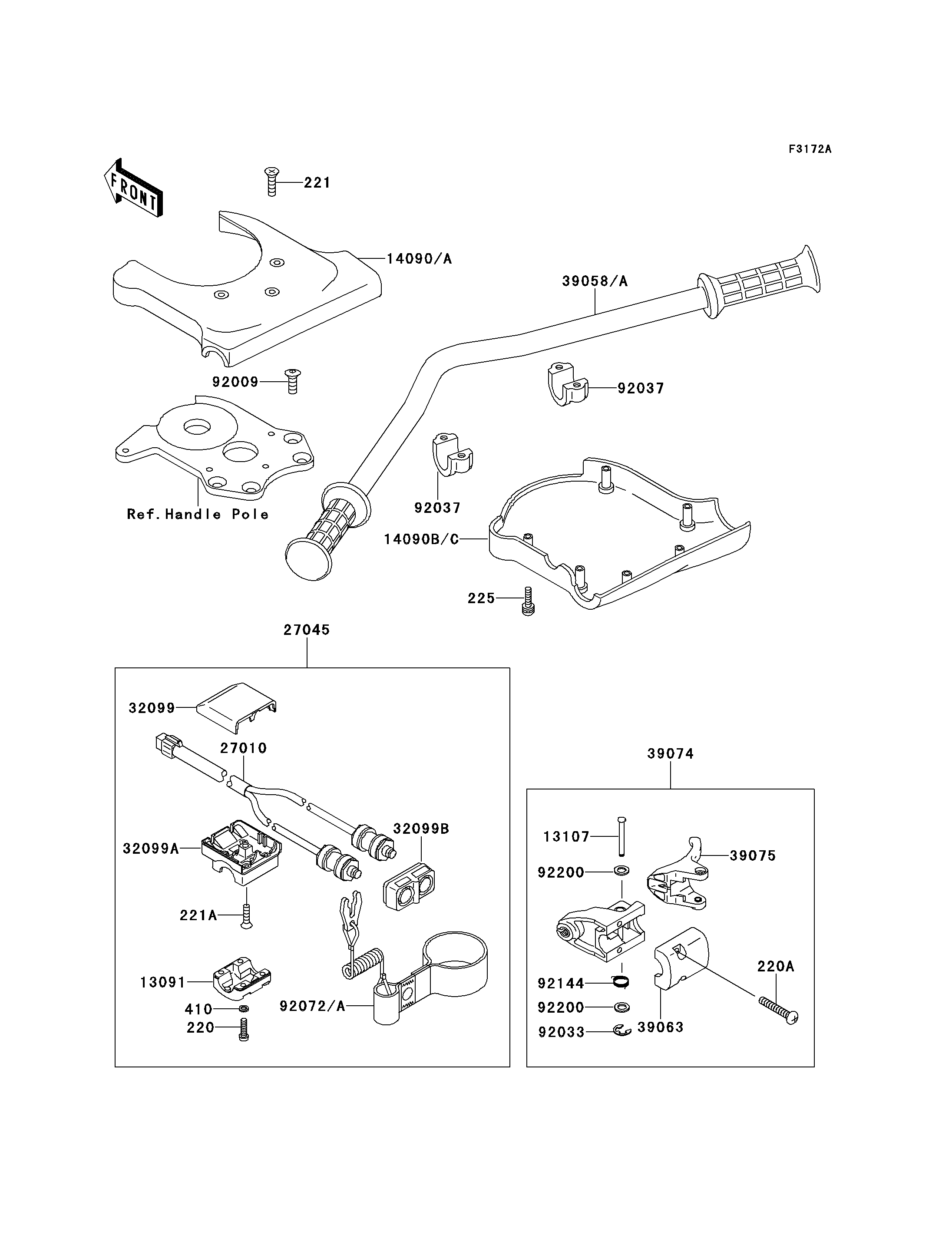

1996 750 SXi - Handlebar(JS750-B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
220
220A
221
221A
225
410
13091
13107
14090A
14090C
27010
27045
32099
32099A
32099B
39058
39063
39074
39075
92009
92033
92037
92037
92072A
92144
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X20 220 220R0520 4
SCREW-PAN-CROS 220A 220R0630 2
SCREW-CSK-CROS,6X16 221 221R0616 3
SCREW-CSK-CROS,6X25 221A 221R0625 1
SCREW-PAN-WSP-CROS,5X20 225 225R0520 6
W-PLAIN-S,5MM 410 410S0500 4
HOLDER,SWITCH 13091 13091-3767 1
SHAFT 13107 13107-3740 1
COVER,HANDLE,UPP,VIOLET 14090A 14090-3766-PJ 1
COVER,HANDLE,LWR,VIOLET 14090C 14090-3767-PJ 1
SWITCH,STOP&START 27010 27010-3732 1
SWITCH-ASSY,STOP&START 27045 27045-3706 1
CASE,UPP,SWITCH 32099 32099-3764 1
CASE,LWR,SWITCH 32099A 32099-3766 1
CASE,FR,SWITCH 32099B 32099-3809 1
HANDLE-COMP,GRAY 39058 39058-3713-RA 1
HOUSING-CONTROL 39063 39063-3720 1
LEVER-ASSY-THROTTLE 39074 39074-3717 1
LEVER-THROTTLE 39075 39075-3710 1
SCREW,8X22 92009 92009-3701 4
RING-SNAP 92033 92033-3723 1
CLAMP,HANDLEBAR 92037 92037-503 2
BAND,TETHER SWITCH 92072A 92072-3806 1
SPRING 92144 92144-3749 1
WASHER 92200 92200-3738 2
