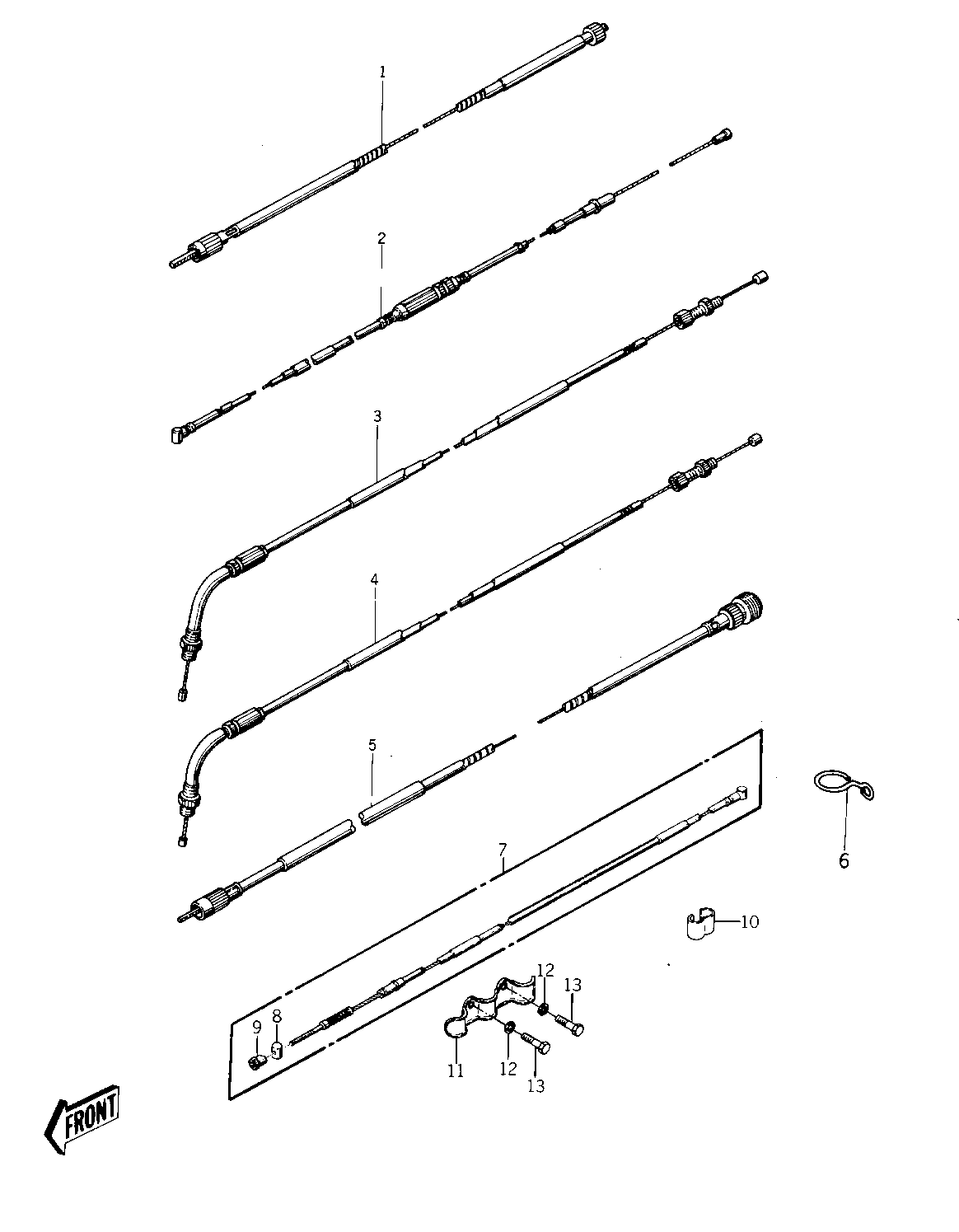

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 1 54001-049 2
CABLE, CLUTCH 2 54011-069 1
CABLE,THROTTLE 3 54012-136 1 FOR OPENING
CABLE,THROTTLE 3 54012-136 AL
CABLE,THROTTLE 4 54012-137 1 FOR CLOSING
CABLE,THROTTLE 4 54012-137 AL
CABLE,TACHOMETER 5 54018-019 1
CLAMP,CABLE 6 92037-092 2
CABLE,FRONT BRAKE 7 54005-080 1
PIN BRAKE ROD 8 92043-053 1
NUT-BRAKE CABLE ADJST 9 92015-041 1
CLAMP-CABLE 10 92037-069 1
CLAMP,CABLE 11 92037-166 1
WASHER SPRING 6MM 12 461F0600 2
BOLT,6X10 13 112G0610 2
