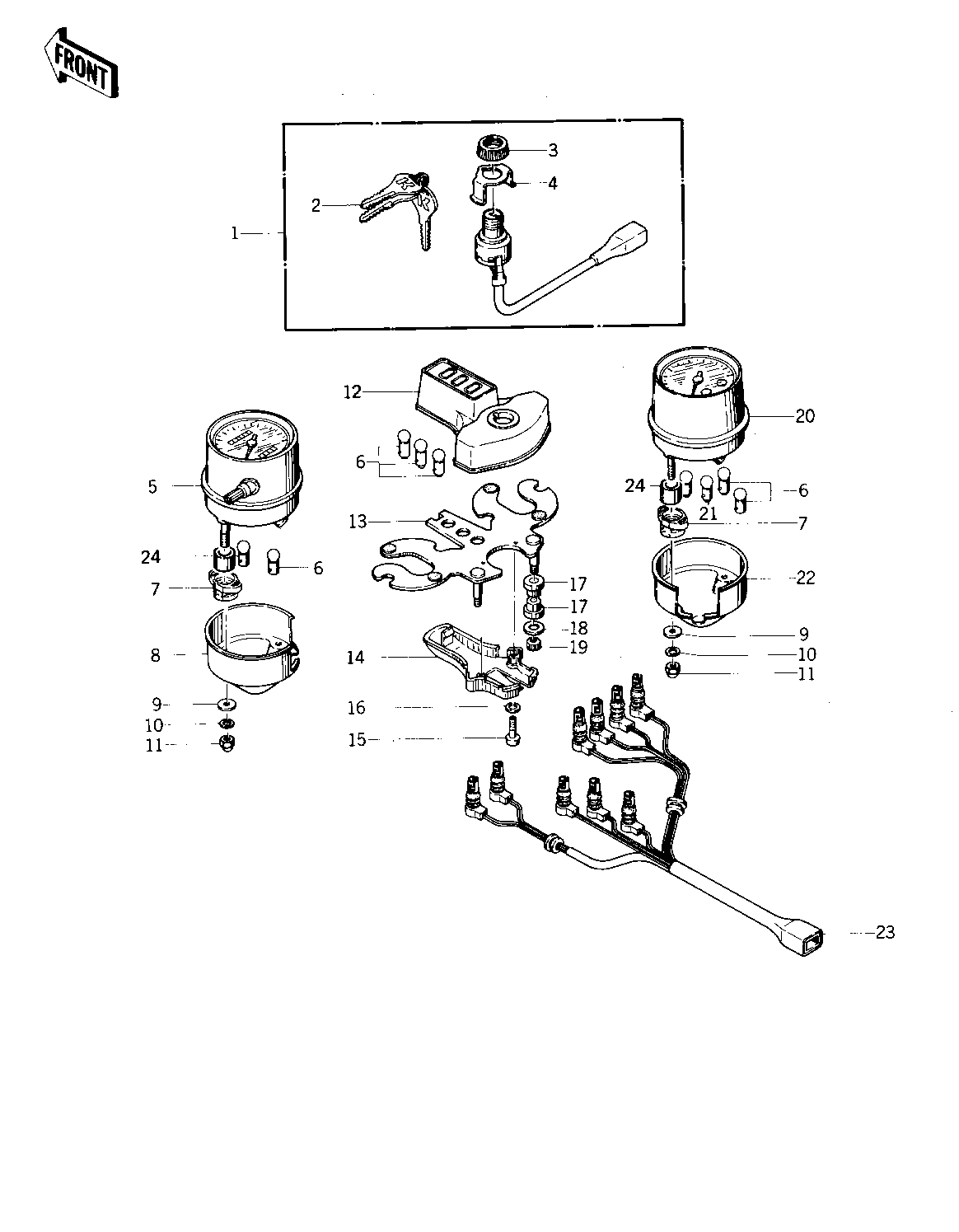

1975 Special - METERS/IGNITION SWITCH ('75 S)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH ASSY IGNITION 1 27005-075 1
KEY SET, #771 2 27008-064-71 1
KEY SET, #772 2 27008-064-72 1
KEY SET,#773 2 27008-064-73 1
KEY SET,#774 2 27008-064-74 1
KEY SET, #775 2 27008-064-75 1
KEY SET, #776 2 27008-064-76 1
KEY SET, #777 2 27008-064-77 1
KEY SET, #778 2 27008-064-78 1
KEY SET, #779 2 27008-064-79 1
KEY SET, #780 2 27008-064-80 1
KEY,BLANK 2 27008-1013 AR
NUT,IGNITION SW LOCK 3 27007-004 1
HOLDER,IGNITION SW 4 27019-004 1
SPEEDOMETER ASSY,MPH 5 25005-126 1
SPEEDO ASSY,KPH (Canada) 5 25005-127 1
BULB 12V 3W 6 92069-018 8
DAMPER RUBBER 7 92075-268 4
COVER SPEEDOMETER 8 25012-020 1
WASHER PLAIN 5MM 9 411B0500 4
WASHER SPRING 5MM 10 461F0500 4
NUT-CAP,5MM 11 322N0500 4
COVER INDICATOR LIGHT 12 25023-013 1
BRACKET METER 13 25008-037 1
COVER METER BRACKET 14 25024-005 1
SCREW-PAN-CRSOSS,4X12 15 220B0412 2
WASHER SPRING 4MM 1 461F0400 2
DAMPER RUBBER 17 92075-257 4
WASHER,PLAIN,6MM 18 92022-284 2
NUT 6MM 19 311B0600 2
TACHOMETER ASSY 20 25016-027 1
BULB 12V 1.5W 21 92069-017 1
COVER TACHOMETER 22 25012-019 1
SOCKET SPEEDO&TACHO 23 25011-047 1
COLLAR 24 92027-244 1
