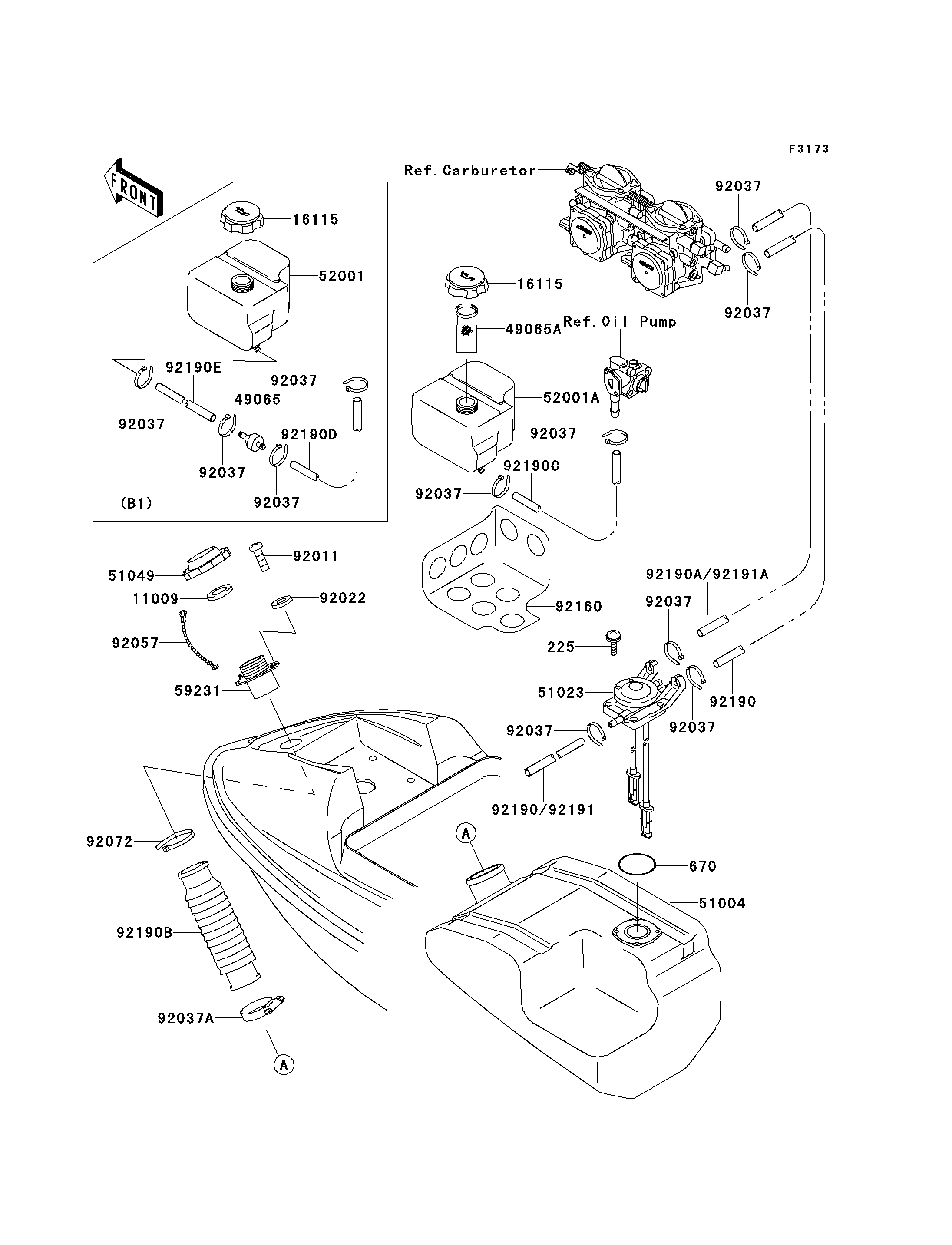

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
225
670
11009
16115
16115
49065A
51004
51023
51049
52001A
59231
92011
92022
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92057
92072
92160
92190B
92190C
92191
92191A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-WSP-CROS,5X20 | 225 | 225R0520 | 4 | ||
| O RING,36MM | 670 | 670B3036 | 1 | ||
| GASKET,TANK CAP | 11009 | 11009-3020 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-3714 | 1 | ||
| FILTER-OIL | 49065A | 49065-3703 | 1 | ||
| TANK-FUEL | 51004 | 51004-3719 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-3721 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-3719 | 1 | ||
| TANK-OIL | 52001A | 52001-3719 | 1 | ||
| FILLER,FUEL TANK | 59231 | 59231-3702 | 1 | ||
| SCREW | 92011 | 92011-562 | 4 | ||
| WASHER | 92022 | 92022-563 | 4 | ||
| CLAMP | 92037 | 92037-1173 | 7 | ||
| CLAMP | 92037A | 92037-3009 | 1 | ||
| CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
| BAND,L=292.1 | 92072 | 92072-3509 | 1 | ||
| DAMPER,OIL TANK | 92160 | 92160-3771 | 1 | ||
| TUBE,FILLER-FUEL TANK | 92190B | 92190-3881 | 1 | ||
| TUBE,OIL | 92190C | 92190-3887 | 1 | ||
| TUBE,5.8X10.8X800,WHITE | 92191 | 92191-3720 | 2 | ||
| TUBE,"RETURN",7X12X490 | 92191A | 92191-3768 | 1 |
