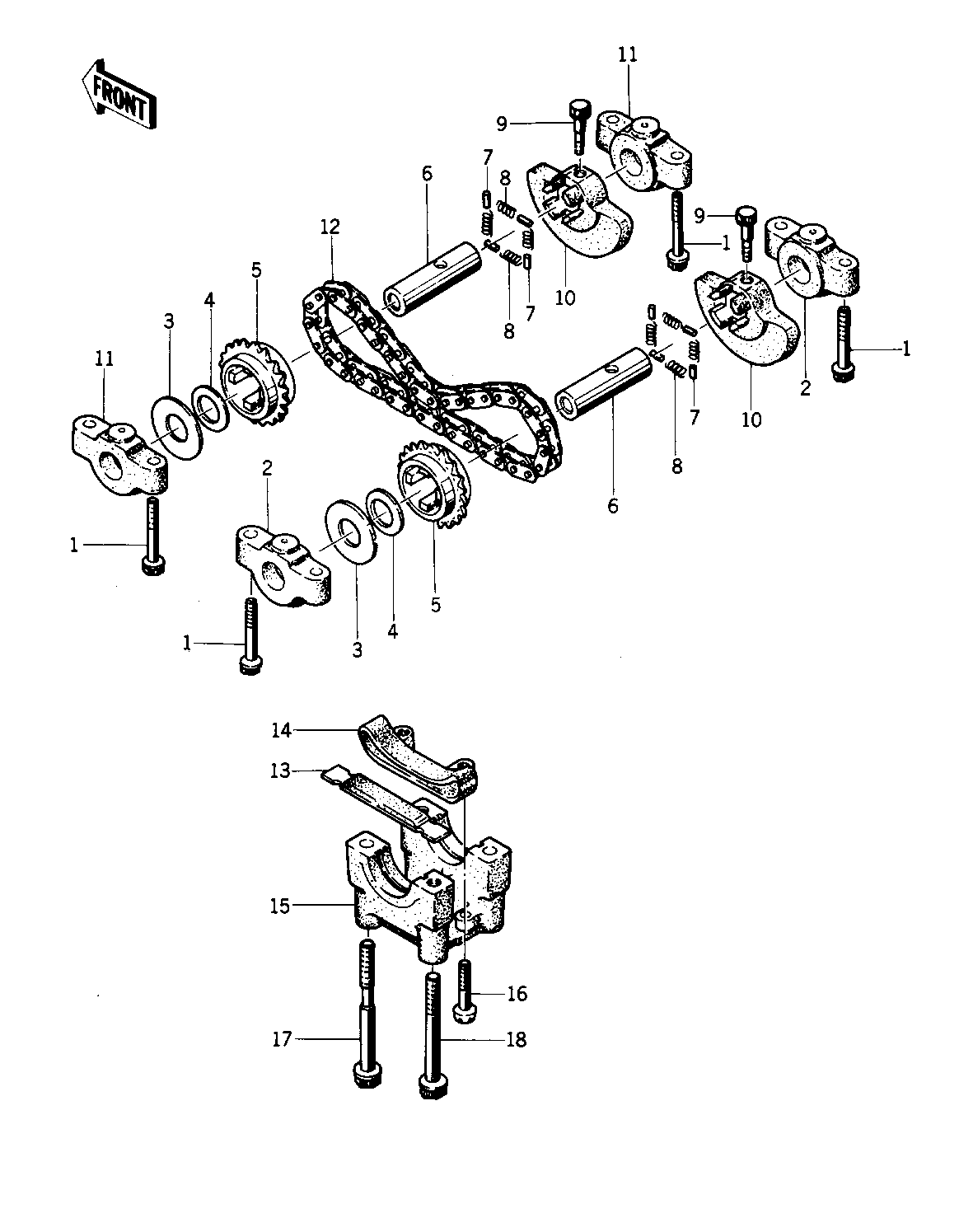

1976 Special - BALANCER ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X45 1 92003-092 8 KZ400-S2
BOLT,6X43 1 92002-1881 8 KZ400-S3
BRACKET B ,BALANCER 2 14081-008 2 KZ400-S2
BRACKET B ,BALANCER 2 14081-008 2 KZ400-S3
WASHER,BALANCER 3 92026-104 2 O.D.=44
WASHER,BALANCER 4 92026-131 2 KZ400-S2
WASHER,BALANCER 4 92026-131 2 KZ400-S3
SPROCKET,BALANCER 5 12046-005 2
SHAFT,BALANCER 6 12052-006 2
PIN DOWEL 4X8 7 610A0408 8
SPRING,BALANCER 8 92081-135 8
BOLT,6X32 9 92003-229 2 KZ400-S2
BOLT,6X32 9 92003-229 2 KZ400-S3
BALANCER 10 13041-004 2
BRACKET A ,BALANCER 11 14081-007 2 KZ400-S2
BRACKET A ,BALANCER 11 14081-007 2 KZ400-S3
CHAIN BALANCER 12 21070-006 1
SLIPPER 13 12053-004 1
GUIDE-CHAIN,BALANCER 14 12053-1051 1 SOLD WITH CRANKCASE ASSY
SCREW PAN HEAD 6X30 16 220B0630 2
BOLT 17 92001-1480 2
BOLT,HEX HEAD,8X81 18 92003-108 2
