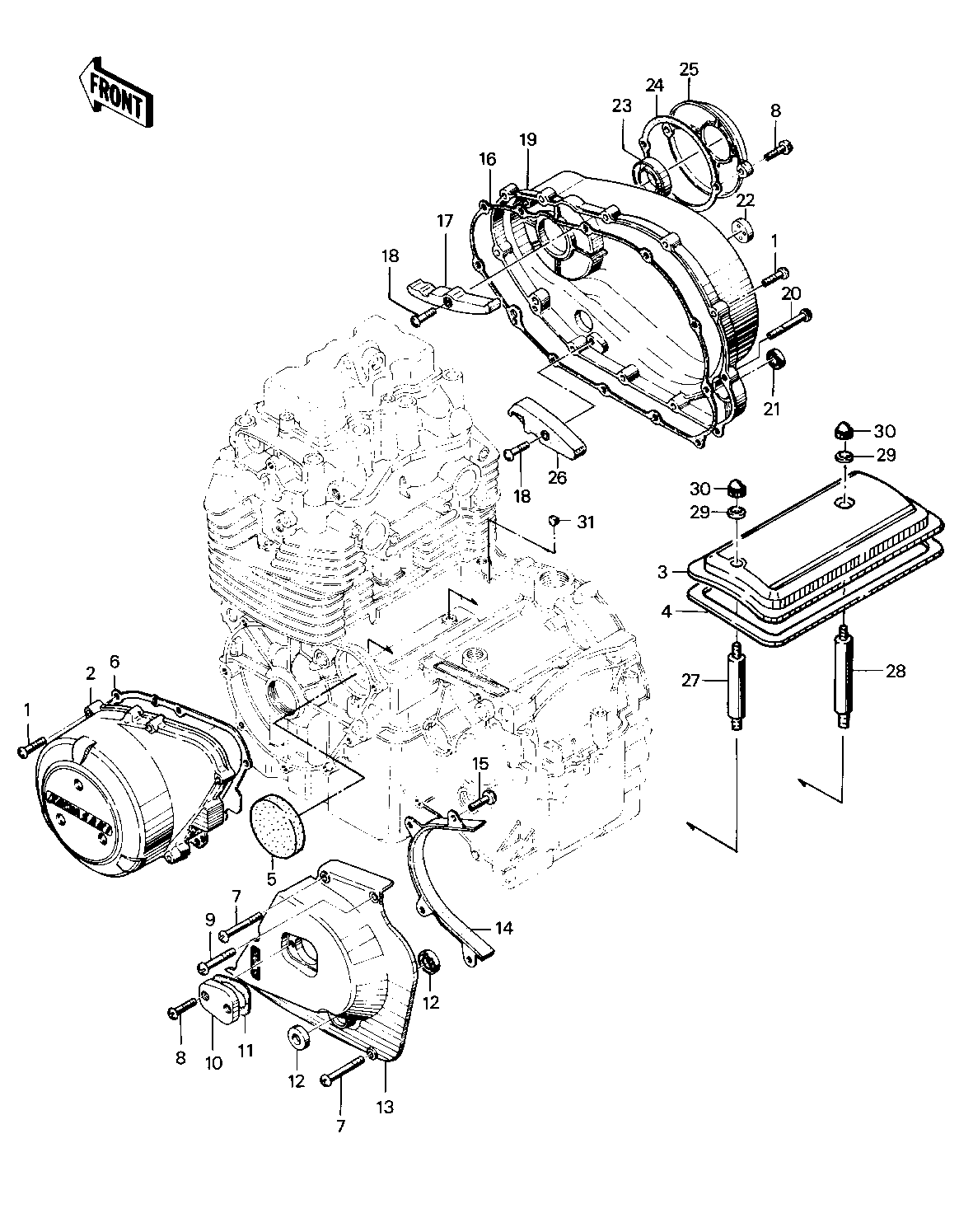

1976 Special - ENGINE COVERS ('76-'77 S2/S3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630 19
COVER,L.H,ENGINE 2 14031-1007-80 1 BUFF FINISH
COVER,L.H,ENGINE 2 14031-1007-80 1
COVER,STARTER MOTOR 3 21165-002-1W 1
GASKET START MOT COV 4 21166-002 1
RUBBER PLUG 5 92074-036 1
GASKET,L.H ENG COVER 6 14045-021 1
SCREW PAN HEAD 6X50 7 220B0650 3
SCREW PAN HEAD 6X18 8 220B0618 4
SCREW PAN HEAD 6X35 9 220B0635 1
COVER,CLUTCH ADJUSTNG 10 14028-006-80 1 BUFF FINISH
GASKET,CLUTCH ADJ CAP 11 14049-004 1
OIL SEAL,TB13225.5 12 92051-005 2
COVER,ENG SPROCKET 13 14026-029-80 1 BUFF FINISH
UNAVAILABLE IN PRICE BOOK 14 14077-044 1
SCREW PAN HEAD 6X14 15 220B0614 4 KZ400-S2
SCREW PAN HEAD 6X12 15 220B0612 4 KZ400-S3
GASKET,R.H ENG COVER 16 14046-031 1
GUIDE,PRIMARY CHAIN 17 12053-010 1
SCREW PAN HEAD 6X25 18 220B0625 2
COVER,R.H ENG,BUFF 19 14032-106-80 1 BUFF FINISH
SCREW PAN HEAD 6X40 20 220B0640 1
OIL SEAL SB20285 21 92049-012 1
GAUGE,OIL LEVEL 22 52015-004 1
OIL SEAL,R.H CRNKSFT 23 92050-065 1
GASKET,BREAKER COVER 24 14050-010 1
COVERBRK POINT,BUFF 25 14027-019-80 1 BUFF FINISH
GUIDE,PRIMARY CHAIN 26 12053-011 1
STUD 27 92004-055 1
STUD 28 92004-056 1
WASHER,PLAIN,6MM 29 410D0600 2
NUT,6MM 30 92015-009 2 KZ400-S2
NUT,CAP,6MM 30 92020-006 2 KZ400-S3
GROMMET 31 92071-1006 1
