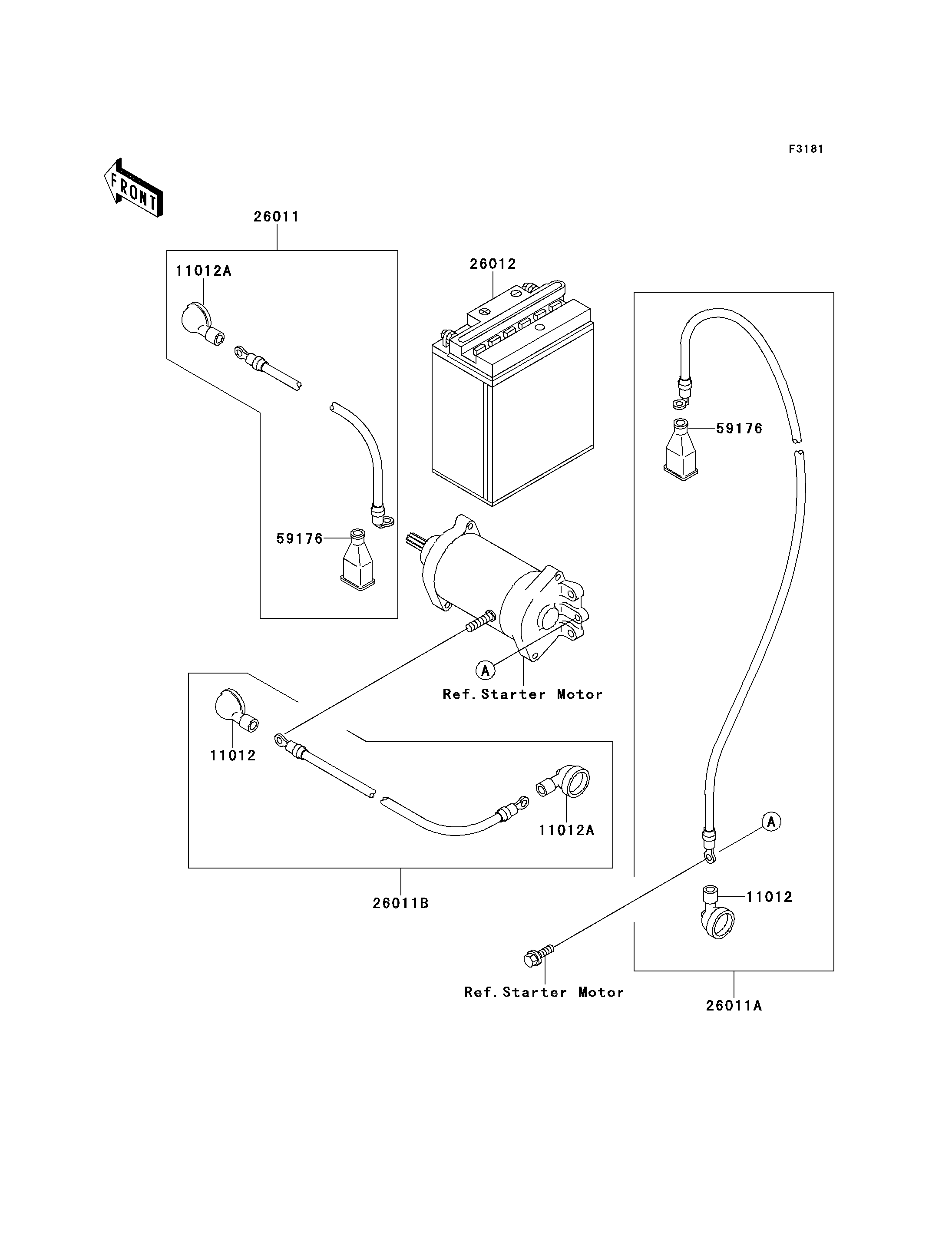

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3004 2
CAP,LEAD WIRE 11012A 11012-3726 2
WIRE-LEAD,BATTERY-SWITCH 26011 26011-3789 1
WIRE-LEAD,BATTERY-STARTER 26011A 26011-3790 1
WIRE-LEAD,STARTER-SWITCH 26011B 26011-3791 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3721 1
CAP.,TERMINAL 59176 59176-501 2
