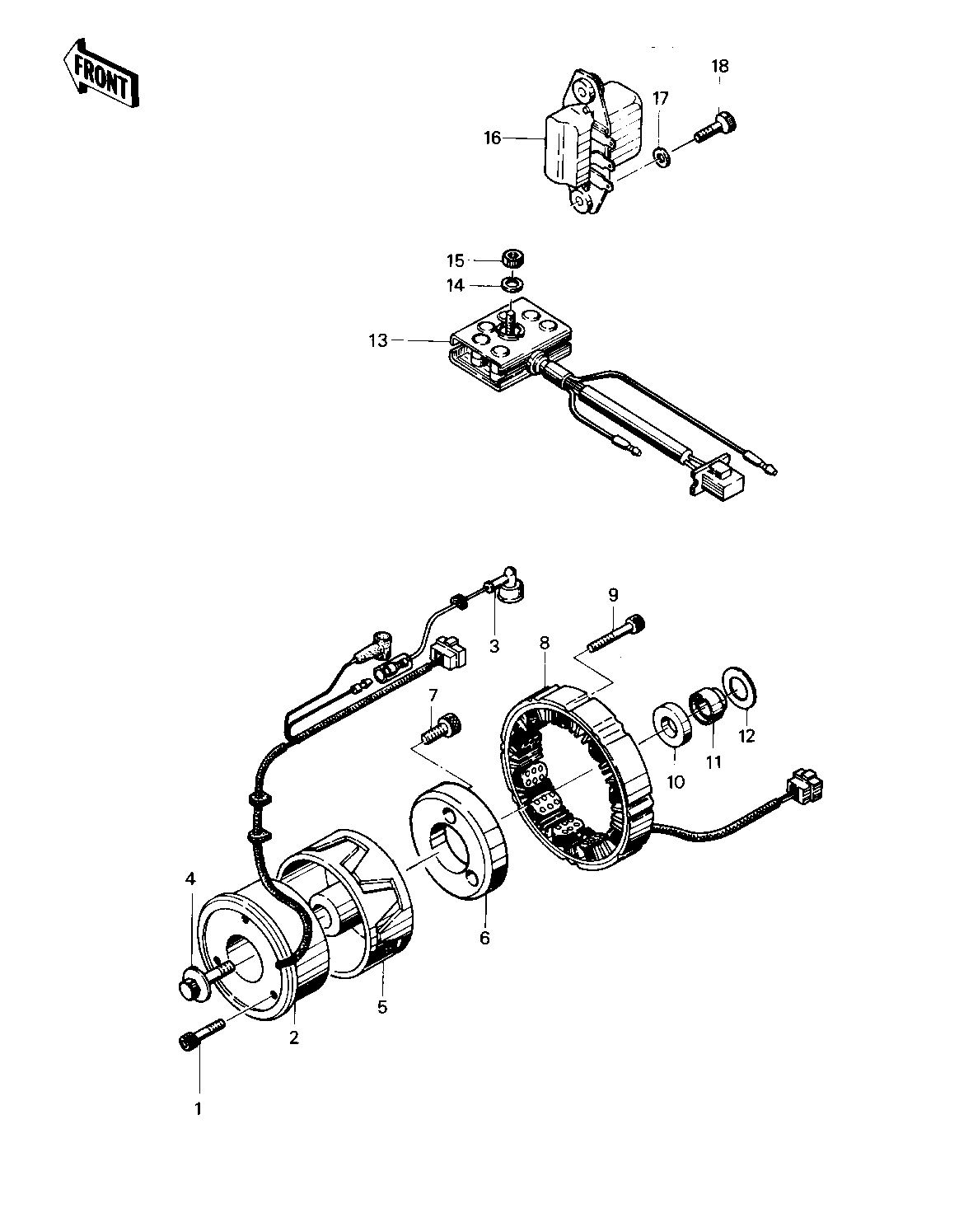

1976 Special - GENERATOR/REGULATOR/RECTIFIER ('76-'77 S

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,ALLEN,6X18 1 120P0618 3
COIL FIELD 2 21077-002 1
WIRE DYNAMO LEAD 3 26011-087 1
BOLT,10X40 4 92002-1303 1
ROTOR 5 21007-030 1
FLYWHEEL 6 21050-024 1
BOLT 7 120P0816 3
STATOR ASSY 8 21076-019 1
BOLT,ALLEN,6X32 9 120Q0632 3
OIL SEAL 10 92050-066 1
COLLAR 11 92027-265 1
WASHER,THRUST 12 92026-126 1
WASHER,THRUST 12 92026-126 1
RECTIFIER 13 21061-030 1 KZ400-S2
RECTIFIER 13 21061-030 1 KZ400-S3
WASHER SPRING 6MM 14 461F0600 1
NUT 6MM 15 311B0600 1
REGULATOR 16 21066-018 1
WASHER SPRING 6MM 17 461F0600 2
BOLT-UPSET 18 112G0618 2
