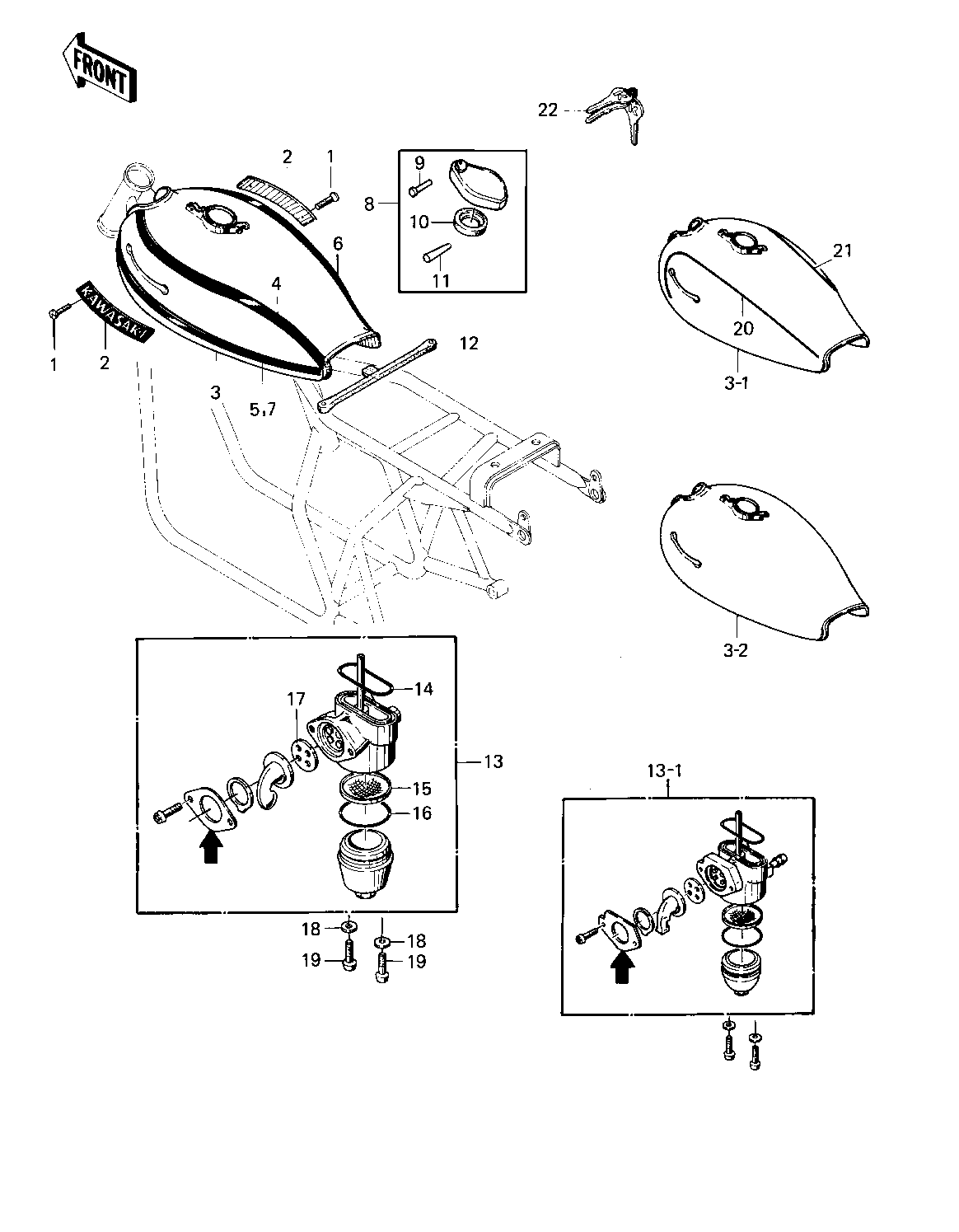

1976 Special - FUEL TANK ('76-'77 S2/S3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-CSK-CROS | 1 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK,R.H | 2 | 56014-1014 | 2 | ||
| TANK-FUEL,P.RED | 3 | 51001-109-4G | 1 | KZ400-S2 | |
| TANK-FUEL,P.RED | 3-1 | 51001-121-4G | 1 | ||
| TANK-FUEL,C.BLUE | 3-2 | 51001-124-4X | 1 | KZ-400-S3 | |
| *** N.L.A.*** (Canada) | 4 | 56027-469-SP | 1 | * | |
| *** N.L.A.*** (Canada) | 5 | 56027-470-SP | 1 | * | |
| *** N.L.A.*** (Canada) | 6 | 56027-471-SP | 1 | * | |
| *** N.L.A.*** (Canada) | 7 | 56027-472-SP | 1 | * | |
| CAP,FUEL TANK | 8 | 51048-012 | 1 | ||
| PIN,HOOK | 9 | 92043-126 | 1 | ||
| GASKET-FUEL TANK CAP | 10 | 51059-008 | 1 | ||
| PIN,CAP HINGE | 11 | 92043-127 | 1 | ||
| BAND,FUEL TANK | 12 | 92072-042 | 1 | ||
| COCK ASSY,FUEL | 13 | 51023-051 | 1 | KZ-400-S2 | |
| COCK ASSY,FUEL | 13-1 | 51023-060 | 1 | KZ-400-S3 | |
| "O" RING,FL COCK JNT | 14 | 51039-007 | 1 | ||
| STRAINER,FUEL | 15 | 51038-010 | 1 | ||
| "O" RING,FL COCK CUP | 16 | 51039-009 | 1 | ||
| GASKET FUEL COCK CUP | 17 | 92065-099 | 1 | ||
| GASKET,FUEL COCK | 18 | 92065-096 | 2 | ||
| SCREW PAN HEAD 6X35 | 19 | 220B0635 | 2 | ||
| *** N.L.A.*** (Canada) | 20 | 56029-100-SP | 1 | USE FOR 51001-121-4G | |
| *** N.L.A.*** (Canada) | 21 | 56029-101-SP | 1 | USE FOR 51001-121-4G |
