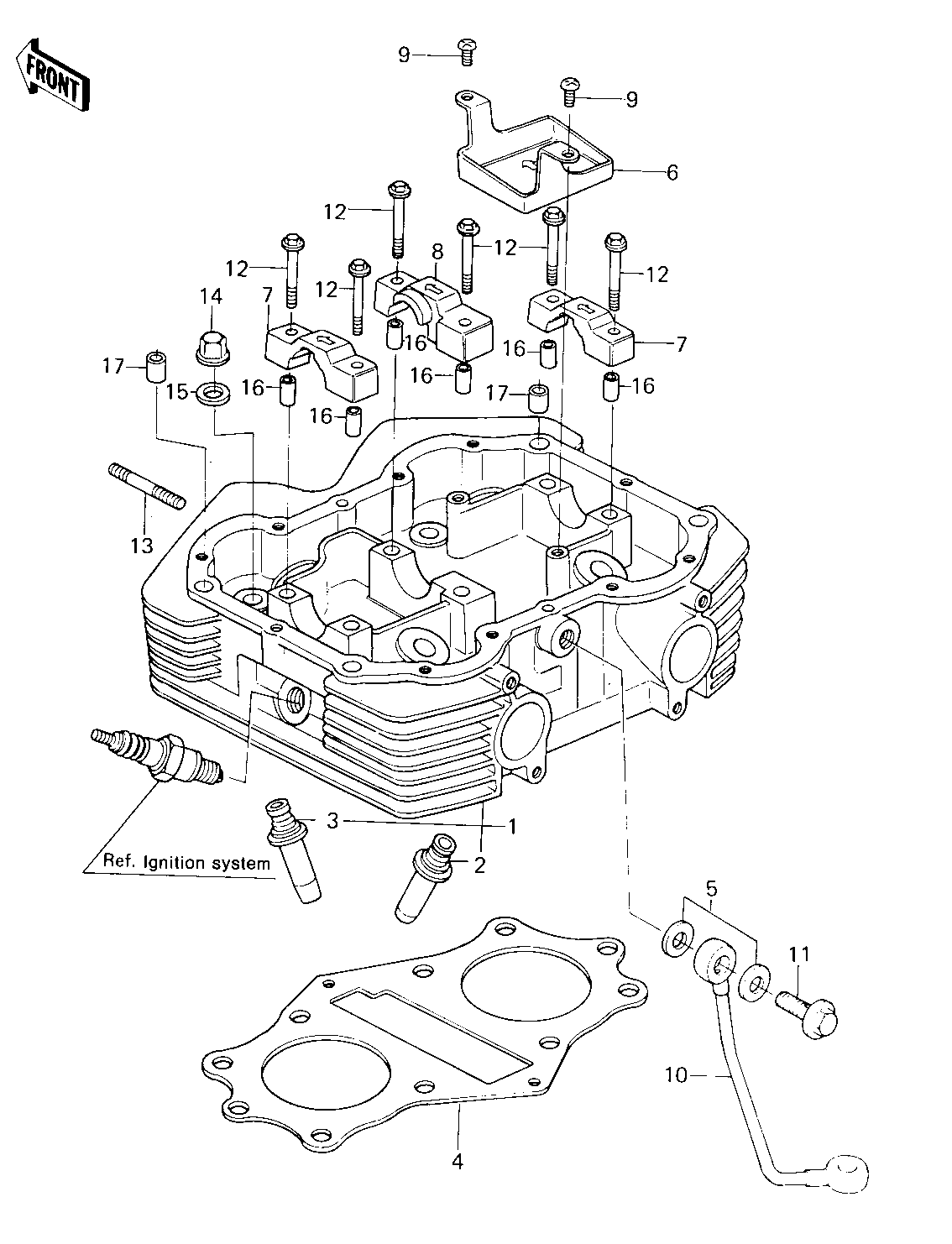

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER HEAD 1 11002-1003 1
GUIDE,INLET VALVE 2 12013-003 2
GUIDE,EXHAUST VALVE 3 49002-1010 2
GASKET,CYLINDER HEAD 4 11004-1008 1
GASKET,10X14.5X1.5 5 11009-1105 2
CAP,CYLINDER HEAD OIL 6 11012-1027 1
CAP,BRG,HEAD,L.H&R.H 7 14022-1002 2
CAP,BRG.HEAD,CENTER 8 14022-1003 1
SCREW PAN HEAD 6X10 9 220B0610 2
PIPE,OIL 10 32032-1084 1
BOLT,BANJO,10X25 11 92001-1017 1
BOLT,HEX HEAD,6X38 12 92003-206 6
STUD,6X46 13 92004-049 4
NUT,CYLINDER HEAD 14 92015-076 8
WASHER,10.5X22X1.6 15 92022-1005 8
PIN-DOWEL 16 92042-007 6
PIN,DOWEL,10X8.2X14 17 92043-1037 2
