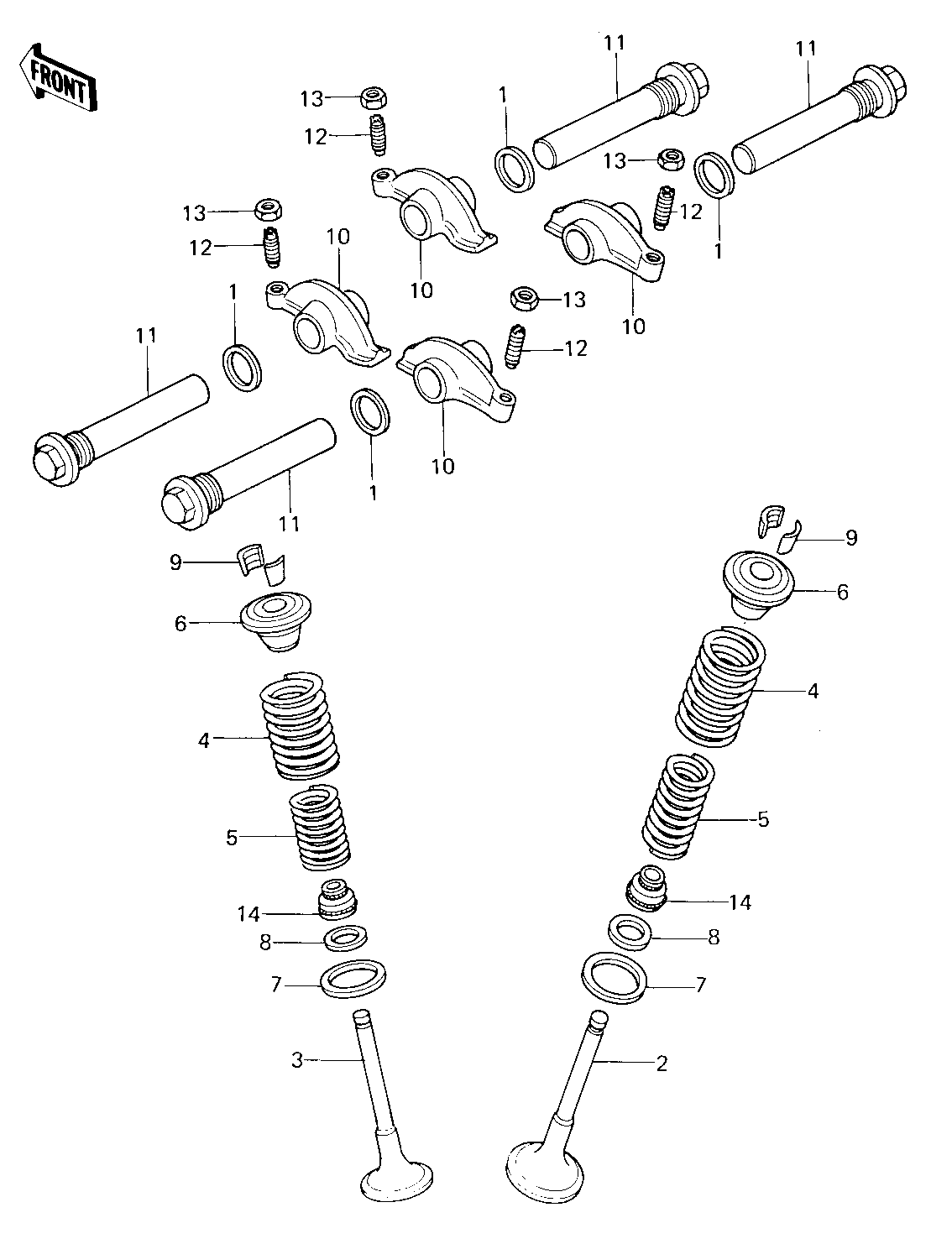

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,16X19.7X1.5 1 11009-1106 4
VALVE,INTAKE 2 12004-1001 2
VALVE,EXHAUST 3 12005-1001 2
SPRING,OUTER VALVE 4 12007-013 4
SPRING,INNER VALVE 5 12007-014 4
RETAINER,VALVE SPRING 6 12009-006 4
SEAT,VLV OUTER SPRING 7 12010-005 4
SEAT,VLV INNER SPRING 8 12010-006 4
SPLIT KEEPER 9 12011-004 8
ARM,ROCKER 10 12016-1001 4
SHAFT,ROCKER 11 12020-1001 4
SCREW,ADJUSTING 12 92009-1032 4
NUT,ROCKER ARM FITTNG 13 92016-061 4
OIL SEAL,RV37129.5 14 92049-016 4
