Parts Diagrams |

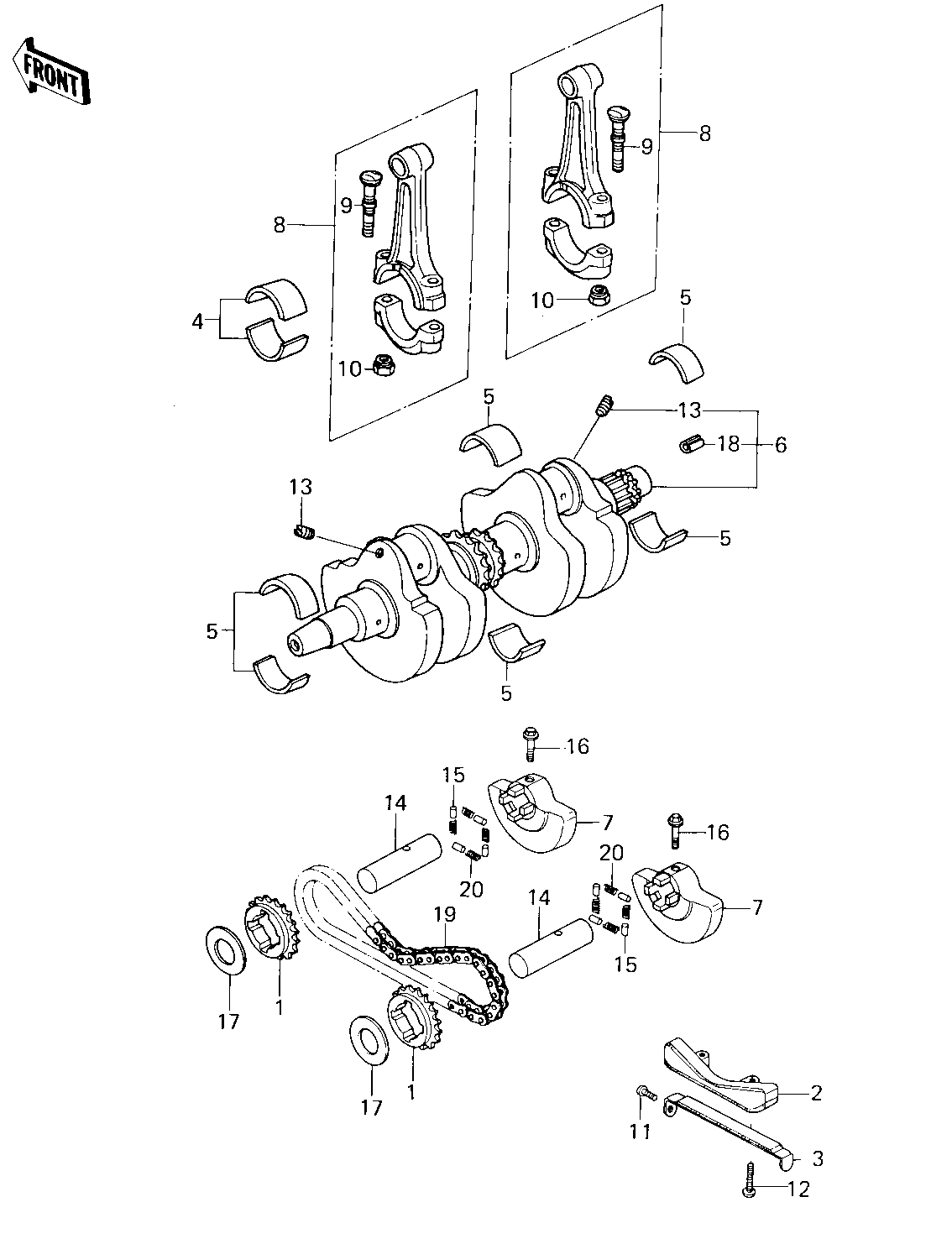

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SPROCKET,BALANCER,21T | 1 | 12046-1003 | 2 | ||
GUIDE-CHAIN,BALANCER | 2 | 12053-1051 | 1 | ||
GUIDE,BALANCER,CHAIN | 3 | 12053-1003 | 1 | ||
METAL,CONNECT ROD BRG | 4 | 13034-050 | 4 | GREEN OR "A" MARK | |
METAL,CONNECT ROD BRG | 4 | 13034-051 | 4 | BLACK OR "B" MARK | |
METAL,CONNECT ROD BRG | 4 | 13034-052 | 4 | BROWN OR "C" MARK | |
BUSHING,CRANKSHAFT | 5 | 92028-1102 | 8 | ||
CRANKSHAFT ASSY | 6 | 13037-1034 | 1 | ||
BALANCER | 7 | 13041-1002 | 2 | ||
CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "G" MARK | |
CONNECTING ROD ASSY,J | 8 | 13251-1008-JJ | 2 | "I" MARK | |
BOLT,CONNECTING ROD | 9 | 92001-1793 | 4 | ||
NUT,CONNECTING ROD | 10 | 92016-060 | 4 | ||
SCREW PAN HEAD 6X8 | 11 | 220B0608 | 1 | ||
SCREW PAN HEAD 6X30 | 12 | 220B0630 | 2 | ||
SCREW,SLOTTED,6X8 | 13 | 291H0608 | 2 | ||
SHAFT,IDLER,BALANCER | 14 | 39115-1002 | 2 | ||
PIN DOWEL 4X8 | 15 | 610A0408 | 8 | ||
BOLT,6X32 | 16 | 92003-229 | 2 | ||
SPACER,20,3X40X1 | 17 | 92026-1003 | 2 | ||
PIN-SPRING,4X8 | 18 | 555A0408 | 1 | ||
CHAIN,BALANCER | 19 | 92057-1007 | 1 | ||
SPRING,BALANCER | 20 | 92081-135 | 8 |
