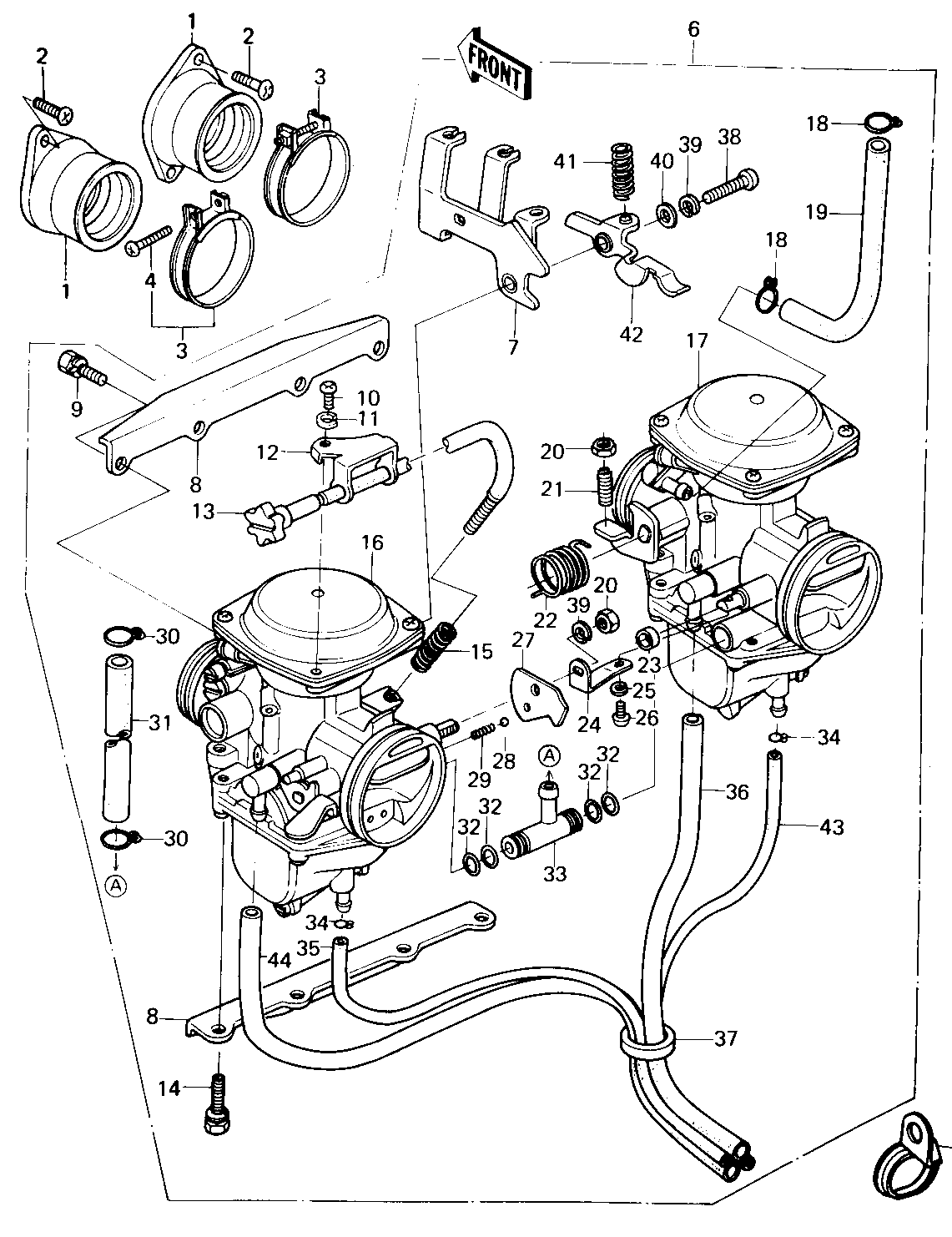

1979 KZ400-H1 - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CARBURETOR 1 16065-1002 2
SCREW PAN HEAD 6X18 2 220B0618 4
CLAMP,CARBURETOR 3 92037-1021 2
SCREW PAN HEAD 5X30 4 220B0530 2
CLAMP,TUBE 5 92037-1153 1
CARBURETOR ASSY 6 16001-1173 1
BRACKET,THR.CBL 7 11034-1008 1
PLATE,STAY 8 16065-1012 2
SCREW,6X16 9 92009-1129 4
SCREW PAN HEAD 4X10 10 220B0410 1
WASHER SPRING 4MM 11 461F0400 1
STAY,STOP SCREW 12 11034-1202 1
SCREW,THROTTLE STOP 13 16021-1007 1
BOLT,HEX HEAD,6X22 14 92009-1006 4
SPRING,STOP SCREW 15 92081-1062 1
CARBURETOR,L.H. 16 16001-1174 1
CARBURETOR,R.H. 17 16001-1175 1
CLAMP,FUEL HOSE 18 92037-1040 2
HOSE,FUEL INLET 19 92059-1001 1
NUT,5MM 20 311B0500 2
SCREW,SLOTTED 21 16021-1002 1
SPRING 22 92081-1063 1
COLLAR,CHOKE LEVER 23 16073-1001 1
BRACKET,CHOKE LEVER 24 11034-1203 1
WASHER SPRING 3MM 25 461F0300 1
SCREW-PAN-HEAD 3X6 26 220B0306 1
CAM,CHOKE LINK 27 13169-1151 1
BALL,STEEL,1/8" 28 600A0400 1
SPRING 29 92081-1004 1
CLAMP,FUEL INLET TUBE 30 92037-1075 2
TUBE,FUEL INLET 31 92059-1029 1
"O" RING 32 92055-1004 4
FITTING,FUEL TUBE 33 92005-1033 1
CLAMP,TUBE,OVERFLOW 34 92037-1142 2
HOSE,FUEL OVERFLOW 35 92059-111 1
HOSE 36 92059-110 1
TUBE,CLAMP 37 92059-1114 1
SCREW-PAN-CROS,5X25 38 220B0525 1
WASHER SPRING 5MM 39 461F0500 2
WASHER,PLAIN 40 16039-027 1
SPRING 41 92081-1003 1
ROCKER ARM 42 11034-1009 1
HOSE,FUEL OVERFLOW 43 92059-111 1
TUBE,4,5X8X450 44 92059-1106 1
