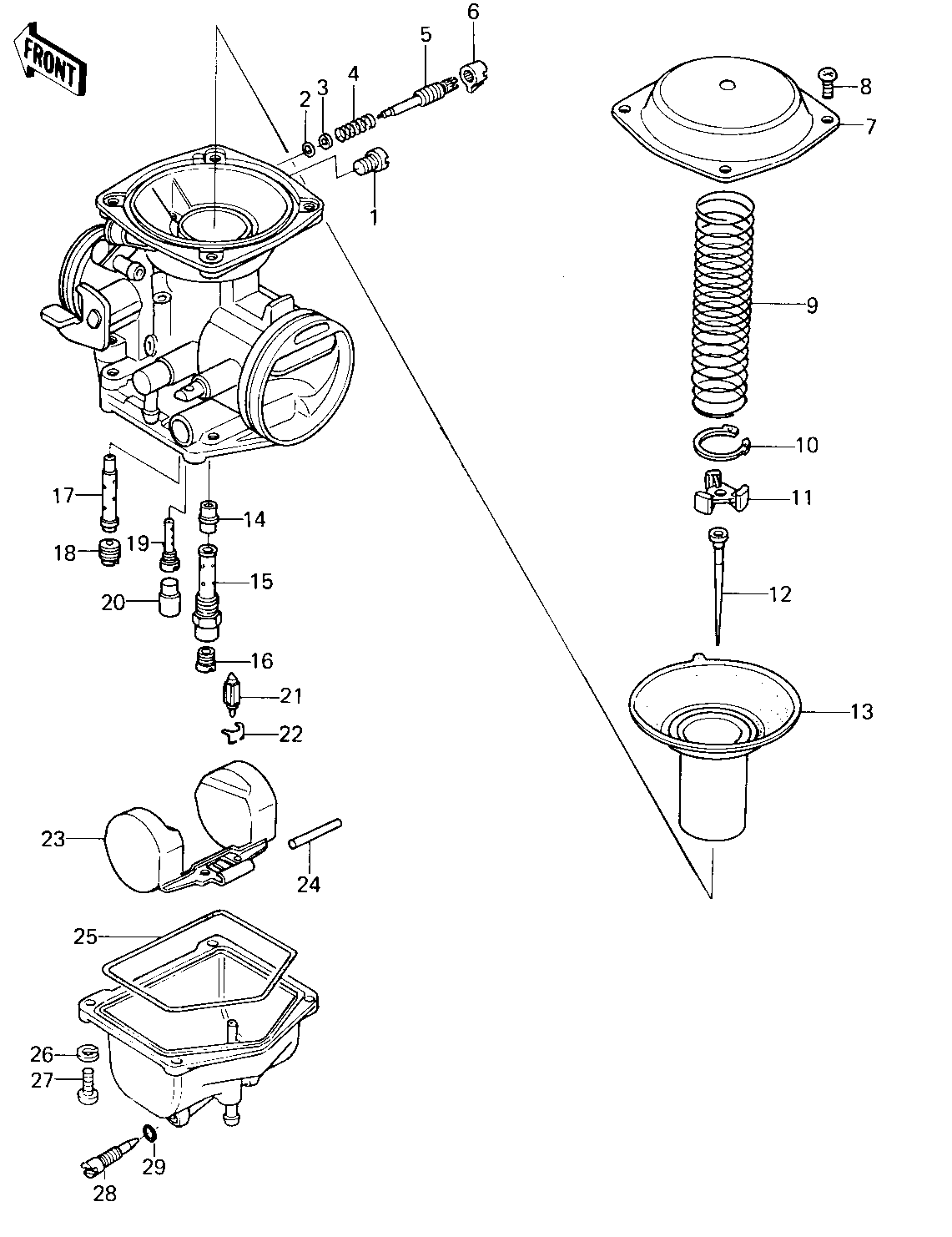

1979 KZ400-H1 - CARBURETOR PARTS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW,PLUG 1 92009-1004 2
O RING,PILOT ADJ 2 92055-1002 2
WASHER,PLAIN 3 92022-1003 2
SPRING,PIROT ADJ SCRW 4 92081-1002 2
SCREW,PILOT ADJUST 5 16014-1009 2
CAP,JET NEEDLE 6 11012-3727 2
TOP,MIXING CHAMBER 7 16005-1001 2
SCREW PAN HEAD 4X8 8 220B0408 7
SPRING 9 92081-1001 2
CIRCLIP 10 92037-1005 2
COLLAR 11 16007-1001 2
JET NEEDLE,#003002 12 16009-1039 2
VACUUM,VALVE 13 16126-1042 2
NEEDLE JET 14 16017-1001 2
HOLDER,N.J,N413-02D00 15 13091-1047 2
MAIN JET,2ND,#80 16 92063-1037 2
MAIN JET,2ND,#75 16 92063-1036 (2
MAIN JET,2ND,#78 16 92063-1043 (2
MAIN JET,2ND,#82 16 92063-1044 (2
MAIN JET,2ND,#85 16 92063-1023 (2
NOZZLE,MAIN 17 92062-1001 2
MAINJET,PRIMARY,#70 18 92063-1002 2
PILOT JET,#35 19 92064-1001 2
CAP,RUBBER 20 16012-1001 2
FLOAT VALVE 21 16030-1007 2
CLIP,FLOAT VALVE 22 16044-007 2
FLOAT 23 16031-1001 2
FLOAT PIN 24 92043-1002 2
"O" RING,FLOAT BALL 25 16019-024 2
WASHER SPRING 4MM 26 461F0400 8
SCREW-PAN-CRSOSS,4X12 27 220B0412 8
SCREW,DRAIN 28 92009-1095 2
"O" RING,DRAIN SCREW 29 92055-1053 2
