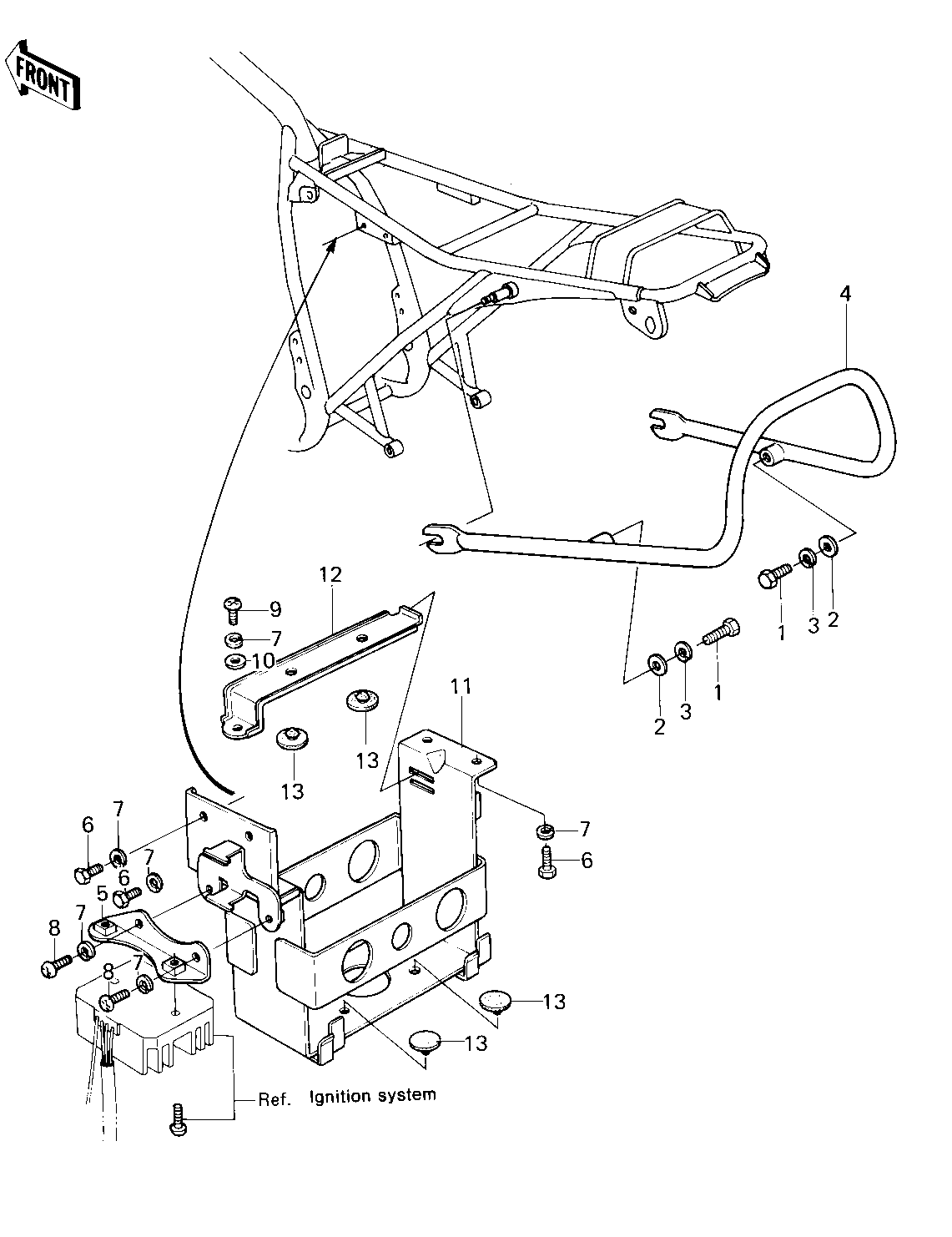

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 2
WASHER PLAIN 8MM 2 410B0800 2
WASHER SPRING 8MM 3 461F0800 2
STAY,REAR 4 35011-1033 1
BRACKET-A,REGULATOR 5 11036-1105 1
BOLT-UPSET,6X16 6 112G0616 4
WASHER SPRING 6MM 7 461F0600 7
SCREW PAN HEAD 6X12 8 220B0612 2
SCREW PAN HEAD 6X14 9 220B0614 1
WASHER PLAIN 6MM 10 410B0600 1
CASE,BTTELY 11 32097-1022 1
BAND,BATTERY 12 92072-1034 1
DAMPER RUBBER 13 92075-078 6
