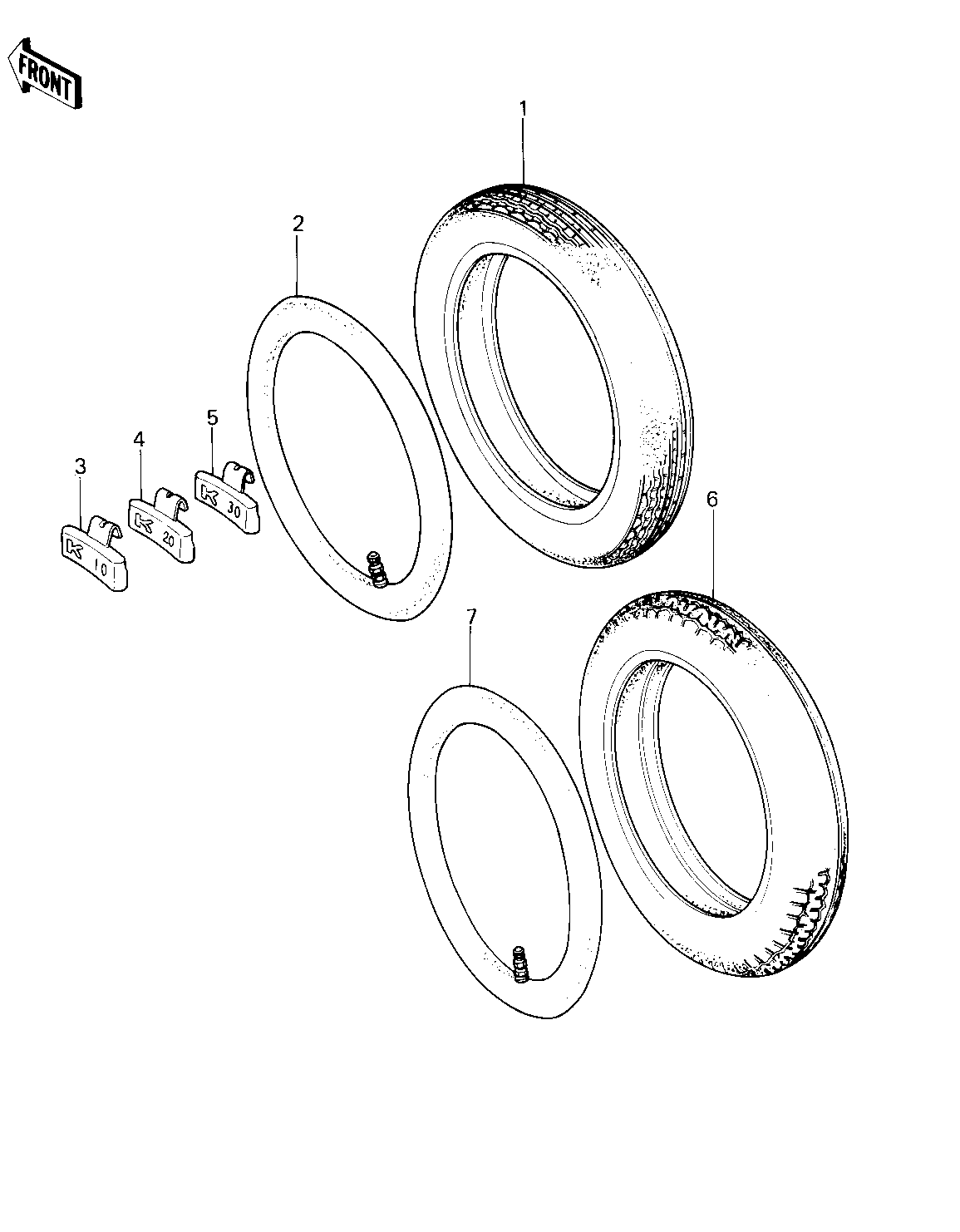

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 325S-19 Y986 F 1 41002-1070 1 Y-986
TUBE,3.0/3.25/3.60-19 2 41022-1019 1
BALANCER-WHEEL,10G 3 41075-1011 AR
BALANCER-WHEEL,20G 4 41075-1012 AR
BALANCER-WHEEL,30G 5 41075-1013 AR
TIRE 130/90-16Y987C R 6 41002-1134 1 Y-987C
TUBE 130/90-16 7 41022-1017 1
