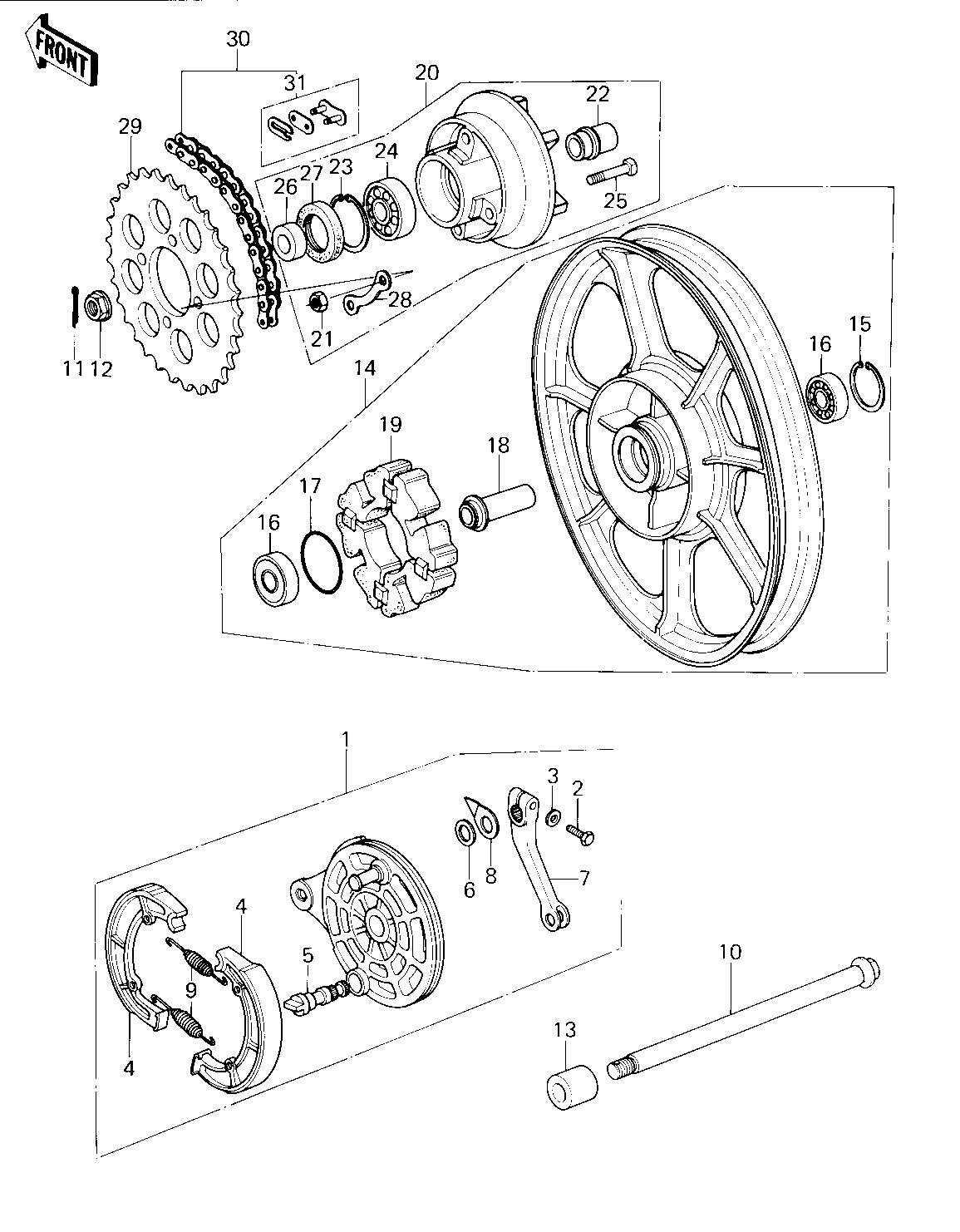

1979 KZ400-H1 - REAR WHEEL/HUB/BRAKE/CHAIN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,RR BRK | 1 | 41035-1089 | 1 | ||
| BOLT HEX HEAD 8X28 | 2 | 114G0828 | 1 | ||
| WASHER PLAIN 8MM | 3 | 410B0800 | 1 | ||
| SHOE-BRAKE | 4 | 41048-1069 | 2 | ||
| CAM,BRAKE | 5 | 41050-1001 | 1 | ||
| DUST SHIELD-BRAKE CAM | 6 | 41051-003 | 1 | ||
| LEVER,BRAKE CAM | 7 | 41053-1001 | 1 | ||
| INDICATOR,BRAKE SHOE | 8 | 41085-004 | 1 | ||
| SPRING-BRAKE SHOE | 9 | 42020-004 | 2 | ||
| AXLE,REAR | 10 | 41068-1024 | 1 | ||
| PIN,COTTER,4.0X25 | 11 | 550D4025 | 1 | ||
| NUT,16M/M | 12 | 92015-1041 | 1 | ||
| COLLAR,REAR AXLE,R.H. | 13 | 92027-1198 | 1 | ||
| SOLID WHEEL ASSY,REAR | 14 | 41073-1055 | 1 | ||
| CIRCLIP,47M/M | 15 | 92033-1042 | 1 | ||
| BEARING BALL #6303Z | 16 | 601B6303Z | 2 | ||
| "0" RING,60MM | 17 | 671B2560 | 1 | ||
| COLLAR,REAR HUB BRG | 18 | 92027-1196 | 1 | ||
| DAMPER,REAR HUB SHOCK | 19 | 92075-1008 | 1 | ||
| COUPLING ASSY,RR HUB | 20 | 42033-1011 | 1 | ||
| NUT,10MM | 21 | 314B1000 | 4 | ||
| SLEEVE,COUPLING | 22 | 42036-1002 | 1 | ||
| RING,SNAP,56.2M/M | 23 | 92033-1043 | 1 | ||
| BEARING BALL #6205 | 24 | 601B6205 | 1 | ||
| BOLT, RR SPROCKET FIT | 25 | 92003-156 | 4 | ||
| COLLAR REAR AXLE,L.H. | 26 | 92027-1197 | 1 | ||
| OIL SEAL WTC35527 | 27 | 92052-006 | 1 | ||
| WASHER SPROCKET LOCK | 28 | 92088-005 | 2 | ||
| REAR SPROCKET,45T | 29 | 42041-145 | 1 | ||
| DR CHAIN 530X104L | 30 | 92057-1035 | 1 | ||
| CHAIN JOINT 530 | 31 | 92058-1005 | 1 |
