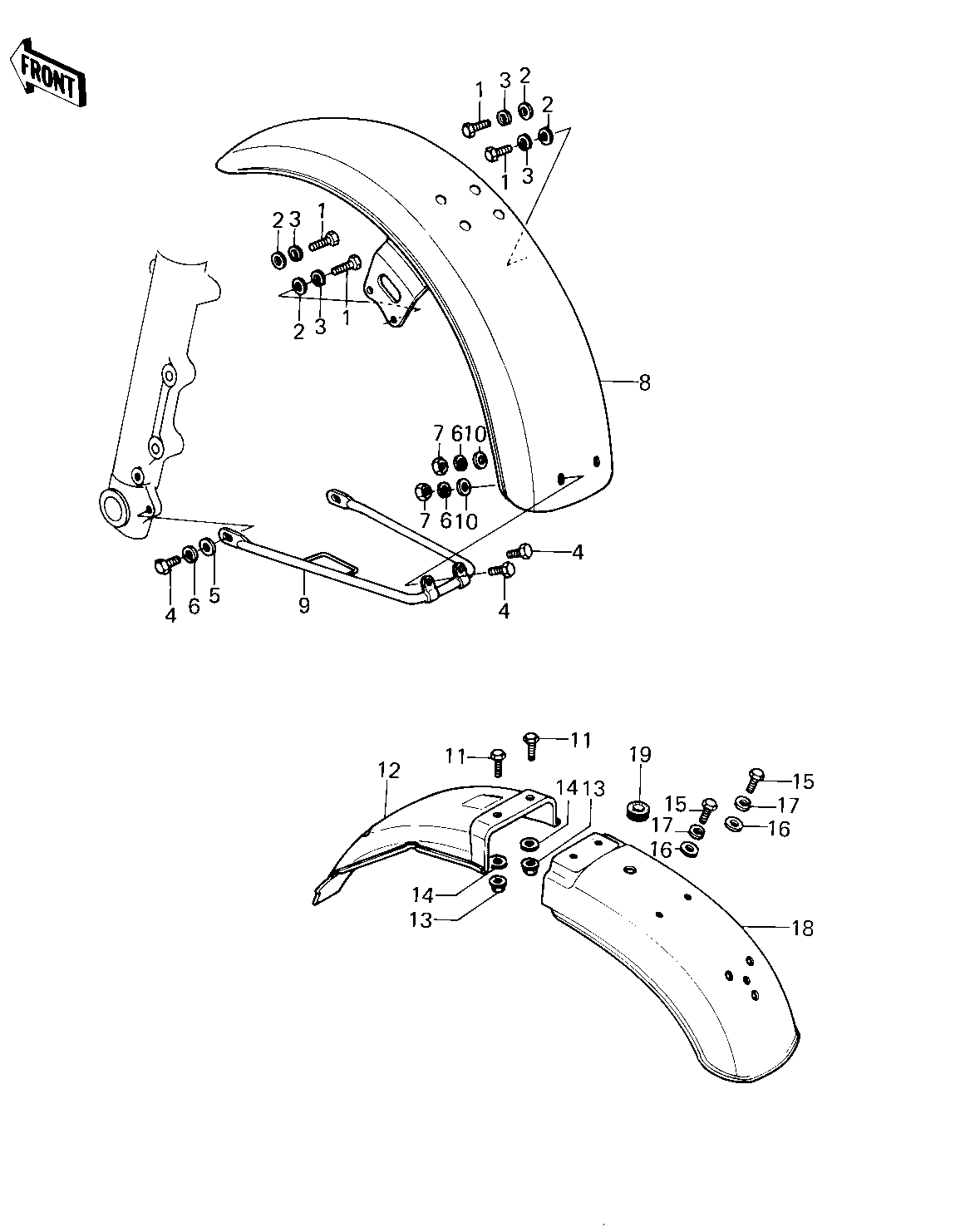

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 4
WASHER PLAIN 8MM 2 410B0800 4
WASHER SPRING 8MM 3 461F0800 4
BOLT-UPSET 6X14 4 112B0614 4
WASHER PLAIN 6MM 5 411B0600 2
WASHER SPRING 6MM 6 461F0600 4
NUT 6MM 7 311B0600 2
FENDER-FR 8 35001-5014 1
STAY,FRONT FENDER 9 35011-1005 1
WASHER PLAIN 10 92022-024 2
BOLT-UPSET,6X16 11 112G0616 2
FENDER-RR 12 35022-1034 1
NUT-6MM 13 92015-1078 2
WASHER 6.5X20X1.6T 14 92022-125 2
BOLT-UPSET 6X14 15 112B0614 4
WASHER PLAIN 6MM 16 411B0600 4
WASHER SPRING 6MM 17 461F0600 4
FENDER-RR 18 35022-1035 1
GROMMET HARNESS 10MM 19 92071-019 1
