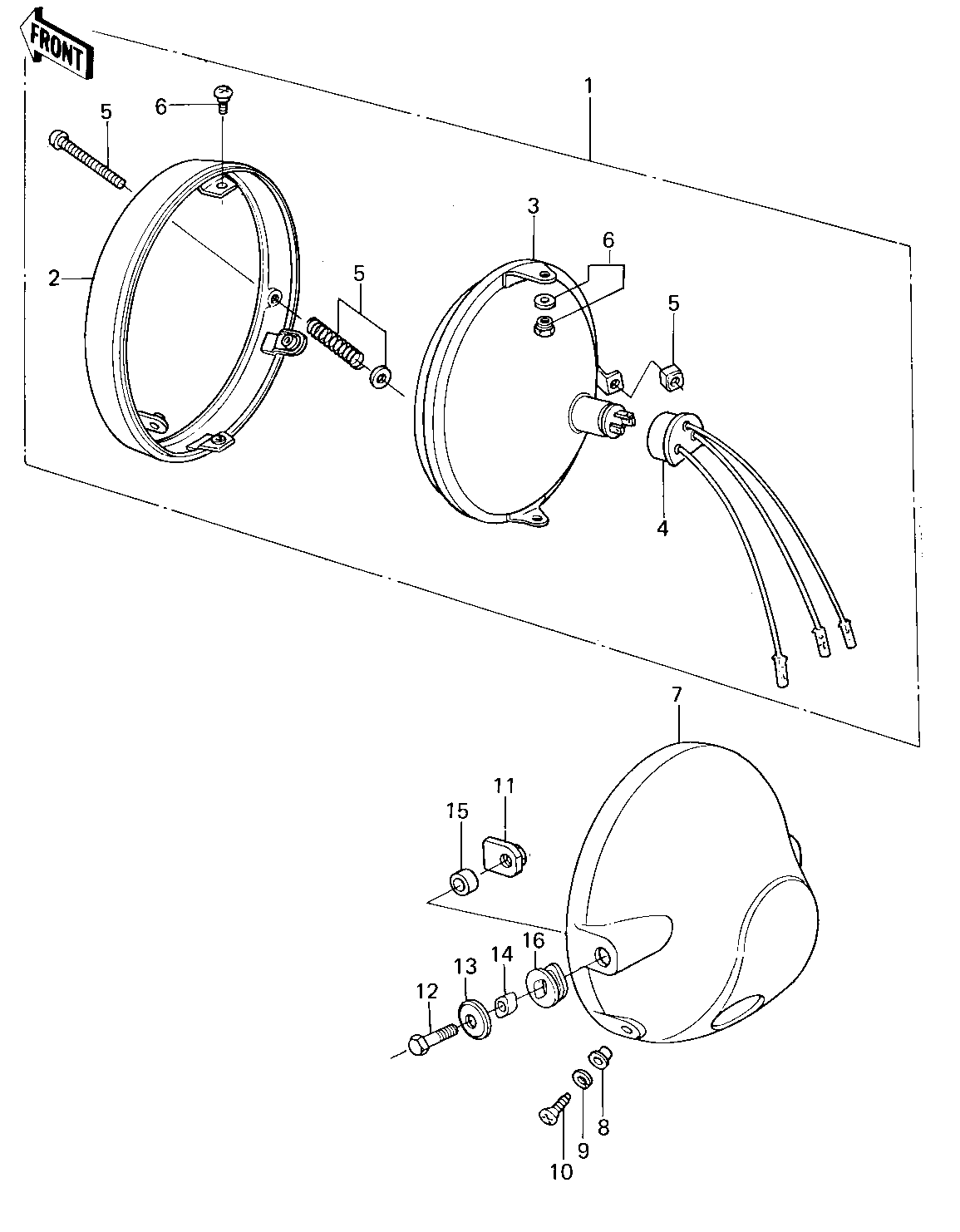

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LIGHT UNIT HEAD 1 23003-022 1
RIM HEAD LIGHT 2 23006-044 1
LENS UNIT HEAD LIGHT 3 23007-059 1
SOCKET ASSY,HEAD LAMP 4 23008-037 1
SCREW ASY FOCUS ADJST 5 23013-008 1
SCREW ASY LENS UNIT 6 23013-009 2
BODY,HEAD LIGHT,BLACK 7 23005-047-21 1
WASHER 8 23021-010 2
WASHER SPRING 5MM 9 461F0500 2
SCREW-PAN HEAD,5MM 10 92011-024 2
NUT 10MM 11 23020-021 2
BOLT,10MM 12 92007-024 2
WASHER,PLAIN 13 92022-289 2
COLLAR,HEAD LAMP 14 92027-1129 2
COLLAR,HEAD LIGHT 15 92027-231 2
DAMPER RUBBER 16 92075-128 2
