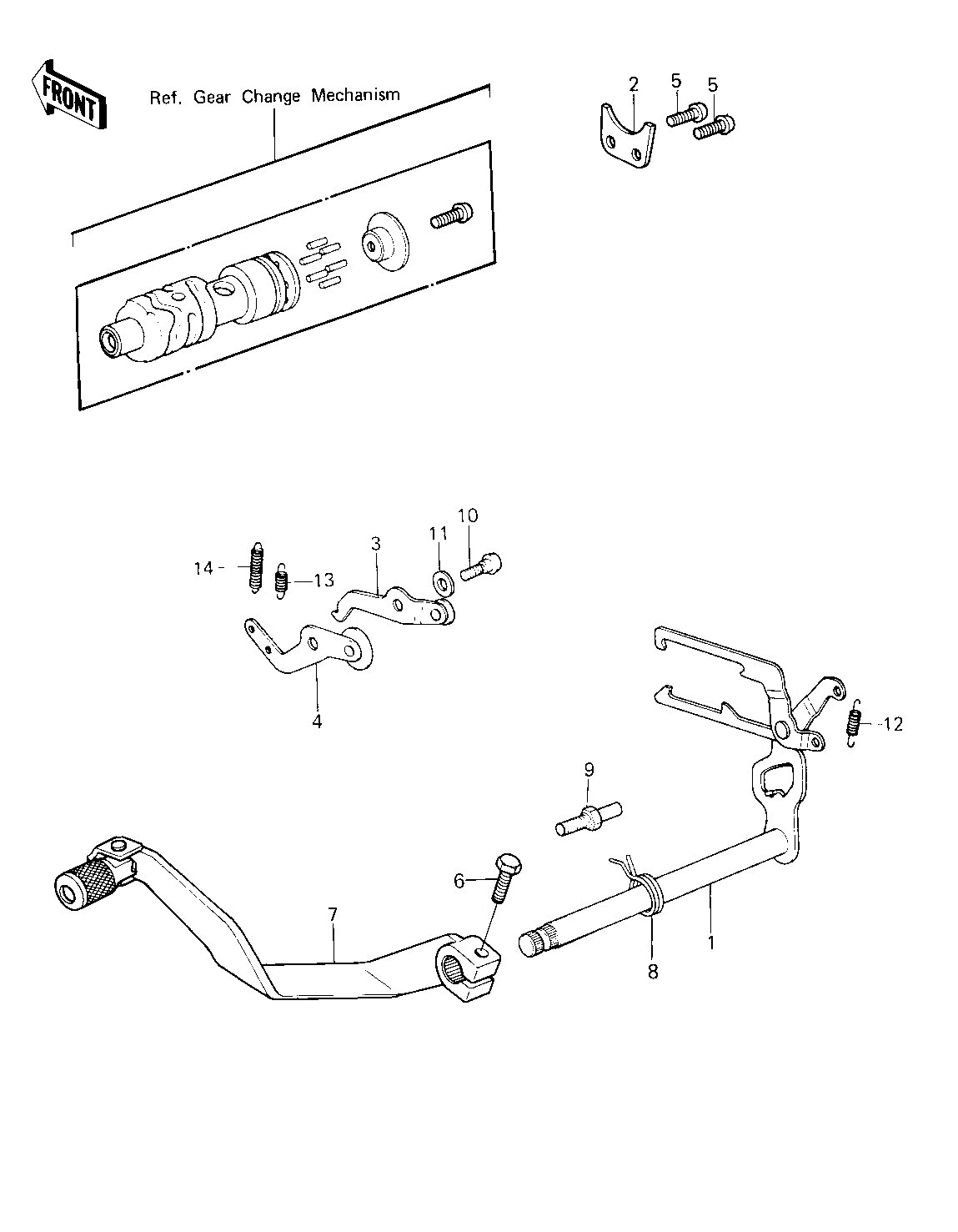

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER ASSY,GEAR CHANG 1 13161-1012
PLATE,CHANGE DRUM 2 13169-1267
LEVER ASSY,GEAR CHANG 3 13236-007
LEVER,GEAR SET 4 13236-1013
SCREW PAN HEAD 6X14 5 220B0614
BOLT-UPSET,6X20 6 112G0620
PEDAL ASSY,GEAR CHANG 7 13242-1025
SPRING,CHG PEDL RTRN 8 92083-028
BOLT,RETURN SPRING 9 92001-1401 KX420-A1
BOLT,RETURN SPRING 9 92001-1401 KX420-A2
SCREW-PAN HEAD 10 92011-023
WASHER,PLAIN 11 92022-1053
SPRING-CHANGE LEVER 12 92081-076
SPRING-COIL 13 92081-077
SPRING 14 92081-119
