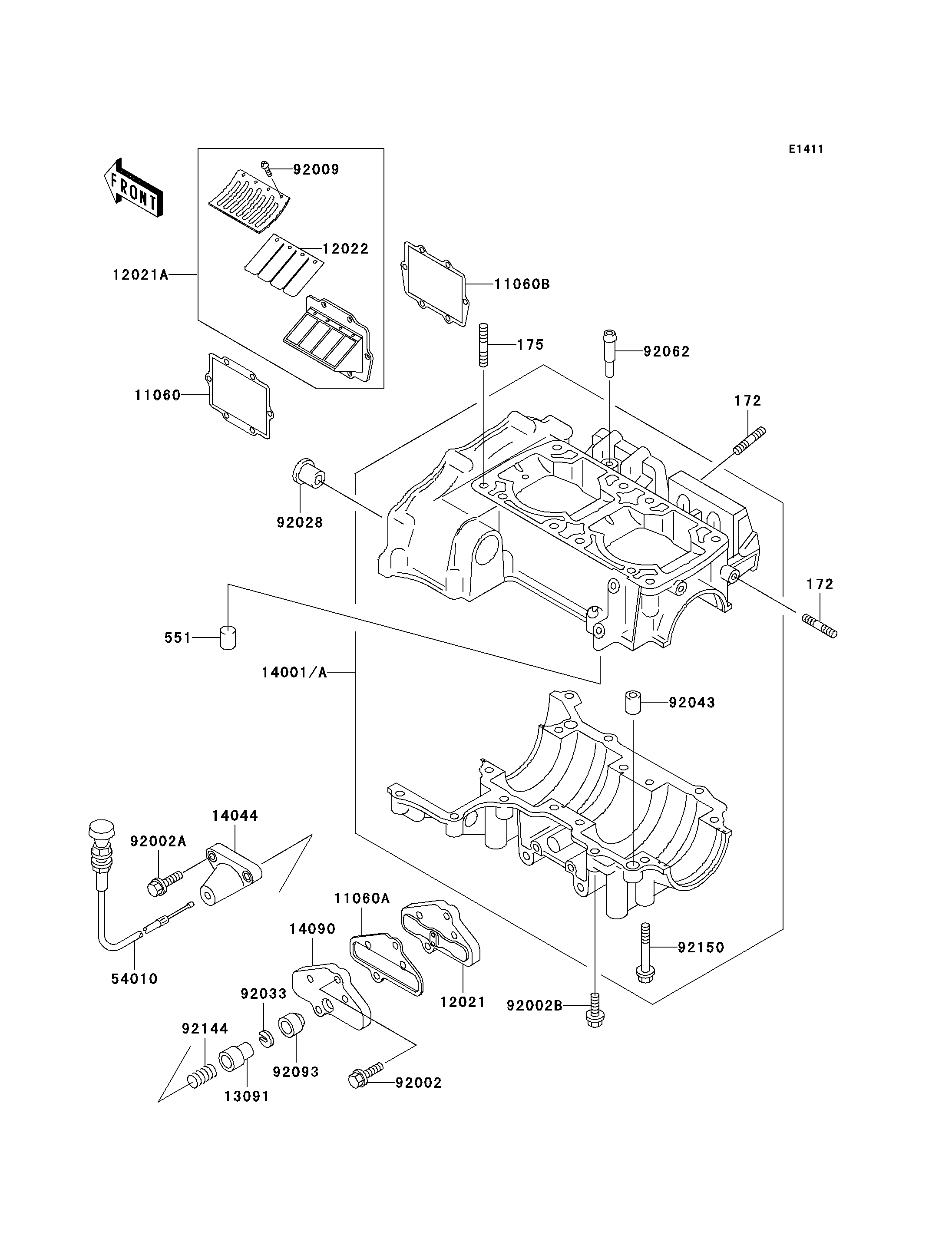

172
172
175
551
11060
11060A
11060B
12021
12021A
12022
13091
14001
14044
14090
54010
92002
92002A
92002B
92009
92028
92033
92043
92062
92093
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD 172 172R0620 14
BOLT-STUD-FINE 175 175R1035 8
PIN-DOWEL 551 551R0612 1
GASKET,REED VALVE 11060 11060-3717 2
GASKET,CONTROL VALVE 11060A 11060-3723 1
GASKET,REED VALVE 11060B 11060-3757 2
VALVE-ASSY-REED,CONTROL 12021 12021-3707 1
VALVE-ASSY-REED 12021A 12021-3708 2
VALVE-REED 12022 12022-3703 4
HOLDER 13091 13091-3707 1
SET-CRANKCASE 14001 14001-5346 1
HOLDER-CABLE 14044 14044-3702 1
COVER,CONTROL VALVE 14090 14090-3734 1
CABLE,CONTROL VALVE 54010 54010-3707 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X45 92002A 92002-3717 2
BOLT,6X30 92002B 92002-3726 7
SCREW,3X6 92009 92009-1371 16
BUSHING 92028 92028-3718 1
RING-SNAP 92033 92033-3708 1
PIN,DOWEL,10X14 92043 92043-1037 2
NOZZLE 92062 92062-3705 1
SEAL 92093 92093-3703 1
SPRING 92144 92144-3701 1
BOLT,8X65 92150 92150-3708 8
