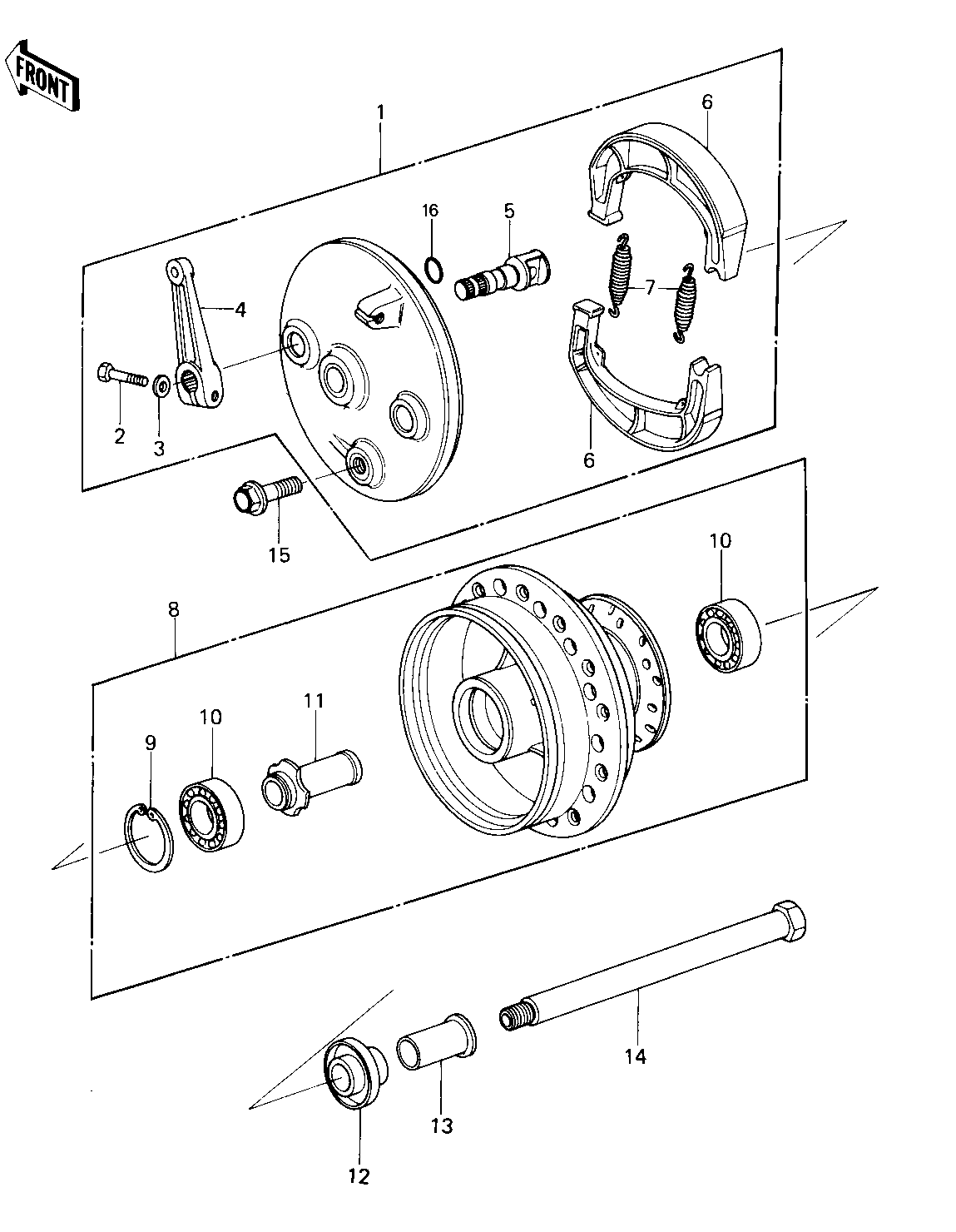

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASY,FR BRK 1 41035-1002 1
BOLT-UPSET 2 112G0622 1
WASHER PLAIN 6MM 3 410B0600 1
LEVER,FRONT BRAKE CAM 4 41053-1003 1
CAM SHAFT,BRAKE 5 41050-1002 1
SHOE-BRAKE 6 41048-1068 2
SPRING-BRAKE SHOE 7 42020-004 2
DRUM-ASSY,FR BRK,BLK 8 41034-1006-21 1
CIRCLIP,42MM 9 92033-1041 1
BEARING,FRONT DRUM 10 92045-033 2
COLLAR,FRONT BRAKE 11 92027-1034 1
COLLAR,FRONT AXLE 12 92027-1035 1
COLLAR,FRONT AXLE 13 92027-1178 1
AXLE,FRONT 14 41068-1006 1
BOLT,SOCKET,10X45 15 92001-1202 1
"O" RING,15MM 16 670B2015 1
